Agent Approvals¶

Human-in-the-loop (HiTL) gate for agent-initiated mutating actions — powered by approval-service, a policy ConfigMap, and enforcement inside the MCP tool servers themselves.

Shipped as ADP Phase 4, extended by Phase 4b (below) with a consent/delegation layer and verified identity. See Agentic Development Platform for how it fits the wider agent architecture.

The Problem¶

Agents that can only read are safe and not very useful. The moment an agent can sync an ArgoCD app, roll back a deployment, or approve a pull request, "the system prompt tells it to ask first" stops being a control — it's a suggestion the model is free to skip, and nothing in the platform records that it did.

The Solution¶

A mutating tool call fails unless it carries an approval_id whose recorded status is approved. The check lives in the tool server's own code path, not in the prompt, so an agent cannot talk its way past it. Which actions need a human is data (a ConfigMap), not code — and every request, auto-approval, and human decision lands in an audit log.

How it works¶

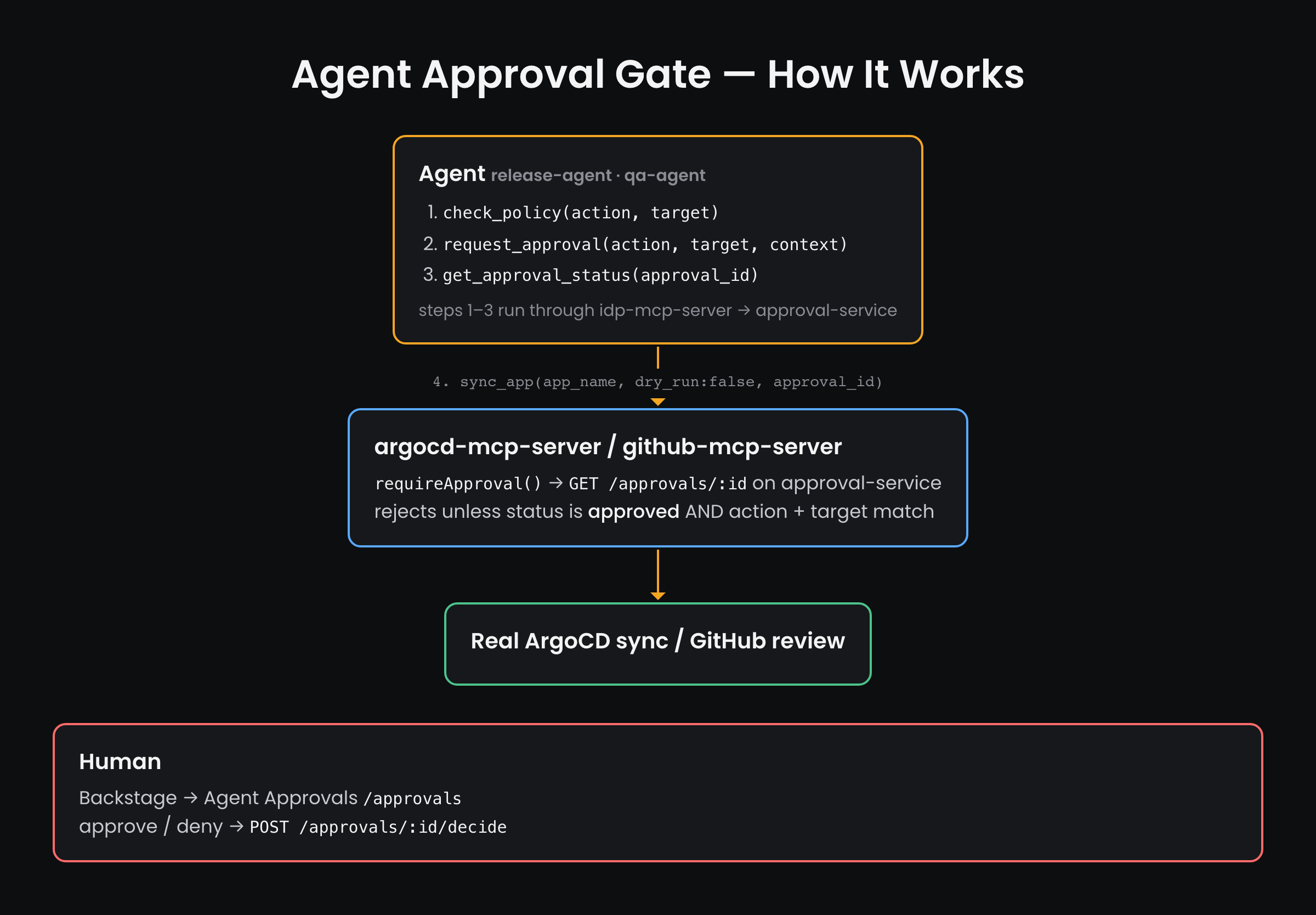

Agent approval gate: the agent checks policy, requests approval and polls status, then calls the MCP server, which rejects the real action unless approval-service reports it approved; a human approves or denies in Backstage

Piece	Path
REST API + `agent_approvals` table	`services/approval-service/`
Policy rules	`kubernetes/kagent/policies/configmap.yaml` → `src/policy.ts`
Agent-facing tools (`check_policy`, `request_approval`, `get_approval_status`)	`services/idp-mcp-server/src/server.ts`
Enforcement on `sync_app` / `rollback_app`	`services/argocd-mcp-server/src/server.ts` (`requireApproval`)
Enforcement on `approve_pr`	`services/github-mcp-server/src/server.ts`
Approvals UI	`backstage/app/packages/app/src/extensions.tsx` (`ApprovalsPage`)

The agent_approvals table lives on the existing Backstage Postgres — RDS on AWS, the docker-compose pgvector container locally (reached from Kind pods via host.docker.internal). No new database.

Enforcement is opt-in, and silent when off¶

requireApproval() returns immediately if APPROVAL_SERVICE_URL is unset, so a tool server running without the gate still works. An unset APPROVAL_SERVICE_URL means mutating tools run ungated — it is the first thing to check when the gate appears not to work. The servers log a warning naming the action and target on every such call, so it leaves a trace in the pod logs rather than passing silently.

APPROVAL_SERVICE_URL is declared in each server's helm-values-aws.yaml and helm-values-local.yaml, which means the gate is on by default. It was previously patched in by bootstrap-ai.sh --adp with kubectl set env, making it opt-in. That stopped working when the MCP services were adopted into ArgoCD: set env is an out-of-band mutation, so selfHeal reconciled the Deployments back to their git-declared spec and stripped the variable. Every mutating agent tool ran ungated for as long as that went unnoticed, while every Application reported Synced/Healthy. Anything that must reach a pod belongs in a values file, not in a kubectl call after the fact.

What the gate actually verifies¶

Beyond "is it approved", requireApproval() rejects a mismatched action/target pair — an approval issued for sync_app on dev-hello-service cannot be replayed against prod-payments-api. Without that check the gate would be a rubber stamp.

Policy¶

kubernetes/kagent/policies/configmap.yaml is mounted at /etc/approval-service/policy.json. Rules are evaluated top to bottom, first match wins, so specific patterns must precede *:

Action	Target pattern	Requires approval	Rationale
`sync_app`	`prod-*`	yes	Production sync always needs a human
`sync_app`	`*`	no	Non-prod sync is reversible by another sync
`rollback_app`	`*`	yes	Reverts a live deployment regardless of environment
`approve_pr`	`*`	yes	Merge-enabling action
`request_changes`	`*`	no	Blocks merge rather than enabling it

targetPattern supports exact match, a prefix-* glob, and *. An action with no matching rule fails safe — it requires approval (matchedRule: "default-fallback"). Adding a new mutating tool therefore defaults to gated, not open.

src/policy.ts also carries a DEFAULT_POLICY used only when the ConfigMap isn't mounted (local npm run dev, unit tests). It is stricter than the shipped policy — every sync_app requires approval. Don't read it as the deployed behaviour.

Policy is cached at first read. Editing the ConfigMap requires a pod restart to take effect:

kubectl apply -f kubernetes/kagent/policies/configmap.yaml
kubectl rollout restart deployment/approval-service -n services-dev

Using it from Backstage¶

Open http://backstage.idp.local/approvals (nav item: Agent Approvals). The page lists pending approvals by default, with an All (last 100) toggle for history, and shows each request's action, target, requesting agent, and the free-form context the agent supplied — its stated reason for wanting the action.

Approve or deny writes decided_by from your Backstage identity, resolved server-side: the page posts to /api/idp-approvals/approvals/:id/decide (idpApprovalDecision.ts), which ignores any client-supplied name, and the /approval-service proxy is GET-only. You cannot approve a request made on your own behalf (requested_by_user equal to the decider gets a 403); you can still deny it. The agent's next get_approval_status call sees the decision and either retries or reports the denial.

The page requires bootstrap-ai.sh --adp to have run: it reveals the route in the generated local/backstage/app-config.ai.yaml, and Backstage reads config only at startup, so restart it afterwards with ./scripts/bootstrap-local.sh --start-backstage. Without that, the route is disabled; with the route on but approval-service down, the page shows HTTP … — is approval-service deployed?. See AI Assistant § Where the AI pages come from for how that gating works.

API reference¶

Base URL: http://approval-service.idp.local (local) · http://approval-service.services-dev.svc.cluster.local:3009 (in-cluster) · /api/proxy/approval-service (through Backstage).

Method	Path	Body / query	Returns
`POST`	`/policy/check`	`{action, target}`	`{requires_approval, reason, matched_rule}`
`POST`	`/approvals`	`{action, agent, target, context?}`	201 — the approval, already `approved` if policy auto-approves
`GET`	`/approvals`	`?status=pending`	`{total, approvals[]}` (unfiltered: last 100)
`GET`	`/approvals/:id`	—	the approval, or 404
`POST`	`/approvals/:id/decide`	`{decision: approved\\|denied, decided_by}`	the updated approval; 409 if already decided; 403 if `decided_by` is the requester approving their own request
`GET`	`/healthz` · `/ready` · `/metrics`	—	health, readiness, Prometheus metrics

decide is guarded by WHERE status = 'pending', so a second decision on the same approval returns 409 rather than overwriting the first — decisions are immutable once made.

Audit log¶

approval-service emits [AUDIT] JSON lines for approval_requested, approval_auto_approved, and approval_decided, each carrying approval_id; gated tools' own [AUDIT] entries carry the approval_id they were given. Together they reconstruct who authorised what, when, and on whose behalf.

kubectl logs -n services-dev deployment/approval-service | grep AUDIT

See AI Assistant § Structured audit log.

Testing the gate¶

Unit tests¶

cd services/approval-service && npm ci && npm test   # policy rules + all five endpoints (store mocked)
cd services/argocd-mcp-server && npm ci && npm test  # approval-gate.test.ts

End-to-end, local¶

./scripts/bootstrap-ai.sh --adp
./scripts/bootstrap-local.sh --start-backstage        # reveal /approvals

# 0. the gate is actually wired in
kubectl get deploy argocd-mcp-server -n services-dev -o jsonpath='{..env}' | tr ',' '\n' | grep APPROVAL

# 1. policy says prod needs a human
curl -s http://approval-service.idp.local/policy/check \
  -H 'content-type: application/json' \
  -d '{"action":"sync_app","target":"prod-payments-api"}'

# 2. agent requests approval → pending
ID=$(curl -s http://approval-service.idp.local/approvals \
  -H 'content-type: application/json' \
  -d '{"action":"sync_app","agent":"release-agent","target":"prod-payments-api",
       "context":{"reason":"deploy v1.4.2 after green CI"}}' | jq -r .id)

# 3. approve it (or use the Backstage UI)
curl -s http://approval-service.idp.local/approvals/$ID/decide \
  -H 'content-type: application/json' \
  -d '{"decision":"approved","decided_by":"your.name"}'

Cases worth asserting, because each is a different failure mode:

Case	Expected
`sync_app` on `dev-*`	created already `approved`, `decided_by: policy:auto-approve`
unknown action (`delete_cluster`)	`requires_approval: true` (fail-safe)
deciding the same ID twice	409
`sync_app` real call, no `approval_id`	rejected: "Approval required for …"
replaying an approval on a different app	rejected: "requested for a different action/target"
retry after a denial	rejected: "is not approved (status: denied)"

Phase 4 answers "did some authorized human sign off on this specific call". It doesn't answer a different question: did the user an agent claims to be acting for actually agree that agent may act for them at all? Before Phase 4b, X-Backstage-User — the header idp-mcp-server binds user-memory operations to, and which now stamps agent_approvals.requested_by_user — was set by the browser, and the generic /api/proxy/kagent passthrough forwards headers verbatim. Anyone with a valid Backstage session could set a different value and have it trusted downstream.

Verified identity¶

backstage/app/packages/backend/src/modules/idpAiIdentityProxy.ts replaces that path. The AI Assistant chat page now POSTs to POST /api/idp-ai-identity/a2a/kagent/:agent instead of /api/proxy/kagent/a2a/kagent/:agent. The new route resolves the caller's identity server-side via httpAuth.credentials(req, { allow: ['user'] }) — the same pattern idpLearningCenter.ts uses — ignores any client-supplied X-Backstage-User, and sets the header itself before forwarding to KAgent (KAGENT_EXTERNAL_URL, same env var idpDeployAgent.ts / idpSetupContractTesting.ts already use). A forged header in the incoming browser request never reaches KAgent.

A new consent_grants table on the same approval-service Postgres records standing authorizations: user X allows agent Y to use tool Z, with an optional expiry.

consent_grants (id, user_ref, agent, scope, granted_at, expires_at, revoked_at)

Method	Path	Body / query	Returns
`POST`	`/consent/grant`	`{user_ref, agent, scope, expires_at?}`	201 — the grant (upsert; re-granting un-revokes and refreshes expiry)
`POST`	`/consent/revoke`	`{user_ref, agent, scope}`	the revoked grant, or 404 if none was active
`GET`	`/consent/check`	`?user_ref=&agent=&scope=`	`{granted, expires_at?}` — `false` if missing, revoked, or expired
`GET`	`/consent`	`?user_ref=`	`{total, grants[]}` — a user's own grants

idp-mcp-server's scaffold_service, and argocd-mcp-server/github-mcp-server's sync_app / rollback_app / approve_pr, call GET /consent/check immediately before their existing requireApproval()/policy check on a real (non-dry-run) call. Same fail-open shape as Phase 4: the check is skipped — not denied — when APPROVAL_SERVICE_URL is unset, or when there's no verified userRef (a call that didn't come through idpAiIdentityProxy.ts). A denial returns a structured message naming the agent, user, and scope rather than a bare error, since there is no self-service "grant consent" UI yet (self-service grant/revoke via /approvals is the natural next slice — today an admin calls POST /consent/grant directly).

Consent and approval are independent gates that both apply to the same call: consent answers "did the user agree this agent may act for them", approval answers "did a human reviewer sign off on this specific action". A [AUDIT] consent_granted / consent_revoked / consent_check_denied line is emitted for each; approval_requested now also carries user_ref when the caller is on the identity-verified path.

Troubleshooting¶

Symptom	Cause
Mutating tools succeed with no approval	`APPROVAL_SERVICE_URL` unset on that tool server. Check the pod's env, not the values file — a live sync can differ from git. Look for the "approval gate disabled" warning in the pod logs
`/approvals` 404s or is missing from the nav	AI overlay written with the layer off, or Backstage not restarted since
Approvals page shows an HTTP error	`approval-service` not running, or the proxy target in `app-config.local.yaml` / `app-config.aws.yaml` unreachable
Pod crash-loops on start	Postgres unreachable — locally the compose Postgres must be up and reachable at `host.docker.internal:5432`; on AWS `approval-service-db` is copied from `backstage-secrets`, which requires `bootstrap.sh` to have run
Policy edits have no effect	Policy is cached — `kubectl rollout restart deployment/approval-service -n services-dev`
`409` on every decide	The approval was already decided; decisions are one-shot by design
