AI Assistant¶

The AI Assistant is a chat interface embedded in the Backstage portal backed by KAgent AI agents (Claude) with live access to the service catalog, Prometheus metrics, Kubernetes deployments, Backstage scaffolder, test suites, contract testing, GitHub PRs, cost/budget data, ArgoCD application state, and persistent user memory. This is the foundation the Agentic Development Platform (ADP) epic builds on.

Self-hosted models (no API key required)¶

Every KAgent ModelConfig the platform ships needs an Anthropic or OpenAI key, which makes "try the agents" gated on having a paid account. --ollama removes that gate:

./scripts/bootstrap-ai.sh --ollama            # local
./scripts/bootstrap-ai.sh --aws --ollama      # AWS

It deploys one shared Ollama into ml-platform serving qwen2.5:1.5b, plus a KAgent ModelConfig named ollama-local pointing at it. One server, not one per scaffolded app — a resident model is the expensive part.

No existing agent is repointed at it. A 1.5B model cannot drive the multi-tool loops incident-agent and cost-agent perform; it will loop or invent tool names. Treat it as an available backend and a demo, not a replacement. To try it, repoint one low-stakes agent's modelConfig.

Cost on the local cluster: ~2.7GB of image and ~1.5GB resident, on top of a platform that already needs 8 CPU / 16 GB. It is off by default for that reason, and the bootstrap prints the arithmetic before installing.

Scaffolding a model server¶

The Model Serving API template now offers three servers rather than implying one:

Server	What it is	Use it when
`mock`	~50MB Python stub returning canned text in the OpenAI shape	Demos and scaffold tests. The local default
`ollama`	Real Ollama, pinned, with a PVC so the model survives a restart	CPU inference on AWS, or locally with `IDP_ALLOW_LOCAL_OLLAMA=true`
`vllm`	Real vLLM, needs a GPU node	GPU inference. Blocked until a GPU node group exists — see issue #184

The mock was previously called Ollama in the code while serving none of Ollama's behaviour, so the scaffolder reported "Ollama" for something that returns fixed strings. It is now named for what it is.

Both real servers fail fast rather than hanging: ollama on a local cluster refuses unless IDP_ALLOW_LOCAL_OLLAMA=true, and vllm checks for a node carrying an accelerator label and names issue #184 when there is none — otherwise the pod sits Pending forever and reads as a hang.

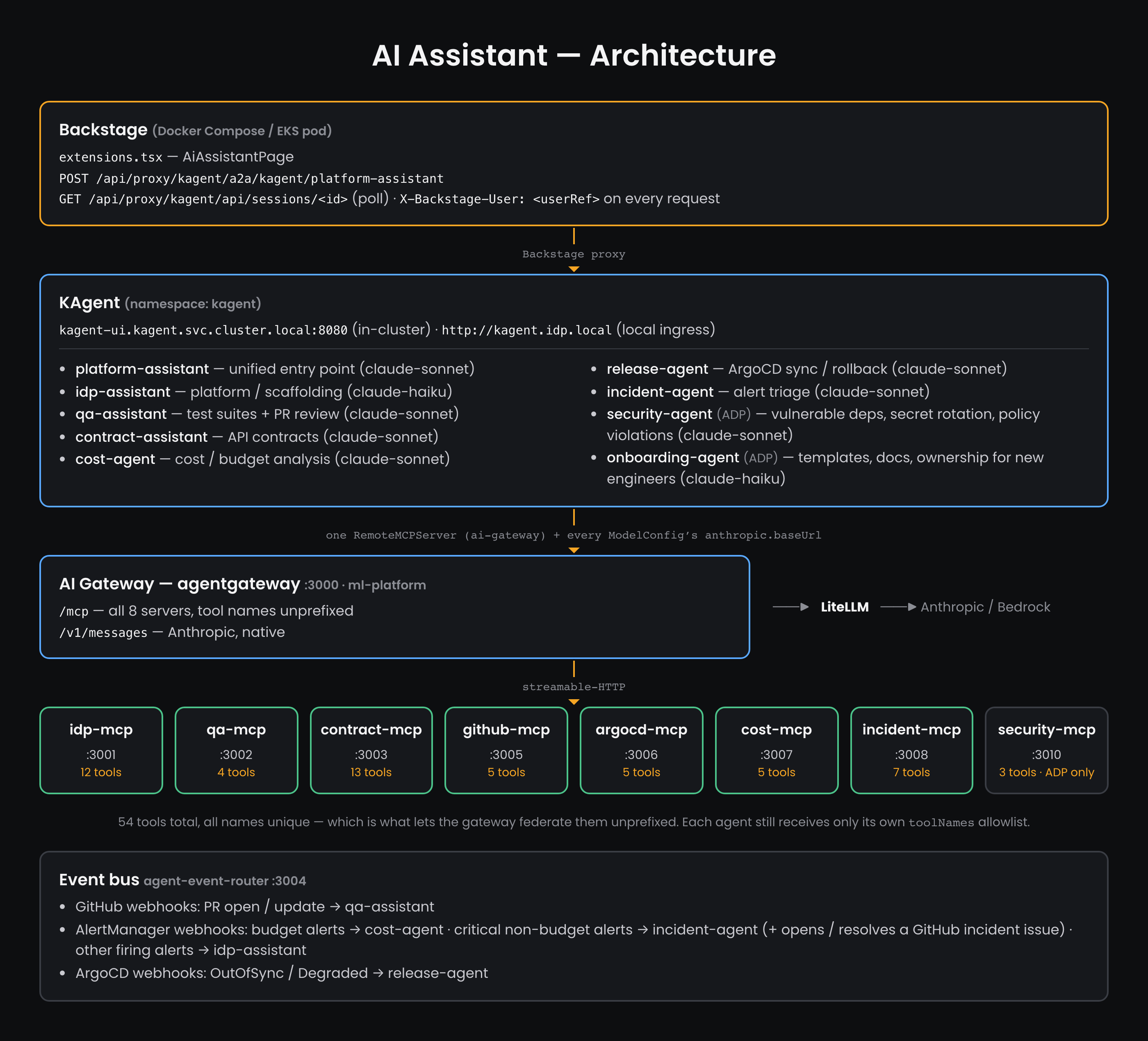

Architecture¶

The AI Assistant is a native React chat component embedded directly in the Backstage frontend. It is not an iframe.

┌──────────────────────────────────────────────────────────────────┐
│  Backstage (Docker Compose / EKS pod)                            │
│                                                                  │
│  extensions.tsx — AiAssistantPage                                │
│    POST /api/proxy/kagent/a2a/kagent/platform-assistant          │
│    GET  /api/proxy/kagent/api/sessions/<id>  (poll)              │
│    X-Backstage-User: <userRef>  header on every request          │
└───────────────────────┬──────────────────────────────────────────┘
                        │  Backstage proxy
                        ▼
┌──────────────────────────────────────────────────────────────────┐
│  KAgent  (namespace: kagent)                                     │
│  kagent-ui.kagent.svc.cluster.local:8080  (in-cluster)           │
│  http://kagent.idp.local  (local ingress)                        │
│                                                                  │
│  Agents:                                                         │
│    platform-assistant  — unified entry point (claude-sonnet)     │
│    idp-assistant       — platform / scaffolding (claude-haiku)   │
│    qa-assistant        — test suites + PR review (claude-sonnet) │
│    contract-assistant  — API contracts (claude-sonnet)           │
│    cost-agent          — cost/budget analysis (claude-sonnet)    │
│    release-agent       — ArgoCD sync/rollback (claude-sonnet)    │
│    incident-agent      — alert triage (claude-sonnet)            │
└───────────────────────────────┬──────────────────────────────────┘
                                │ one RemoteMCPServer ("ai-gateway")
                                │ + every ModelConfig's anthropic.baseUrl
                                ▼
              ┌──────────────────────────────────────┐
              │  AI Gateway — agentgateway :3000     │  ml-platform
              │   /mcp          all 8 servers, tool  │
              │                 names unprefixed     │
              │   /v1/messages  Anthropic, native    │──▶ api.anthropic.com
              └───────────────────┬──────────────────┘
                                  │ streamable-HTTP
       ┌──────────┬───────────────┼────────────┬───────┬───────┬───────┐
       ▼          ▼               ▼            ▼       ▼       ▼       ▼
 ┌──────────┐┌──────────┐┌──────────────┐┌──────────┐┌────────┐┌──────────┐┌───────────┐
 │ idp-mcp  ││ qa-mcp   ││ contract-mcp ││ github-mcp││cost-mcp││argocd-mcp││incident-mcp│
 │ :3001    ││ :3002    ││ :3003        ││ :3005     ││ :3007  ││ :3006    ││ :3008      │
 │ 12 tools ││ 4 tools  ││ 13 tools     ││ 5 tools   ││5 tools ││5 tools   ││7 tools     │
 └──────────┘└──────────┘└──────────────┘└──────────┘└────────┘└──────────┘└───────────┘
        (security-mcp :3010, 3 tools, is the eighth — ADP only)

  54 tools total, all names unique — which is what lets the gateway federate
  them unprefixed. Each agent still receives only its own toolNames allowlist.

Event Bus (agent-event-router :3004)
  ← GitHub webhooks (PR open/update → qa-assistant)
  ← AlertManager webhooks (budget alerts → cost-agent; critical non-budget alerts → incident-agent
                            (+ opens/resolves a GitHub incident issue); other firing alerts → idp-assistant)
  ← ArgoCD webhooks (OutOfSync/Degraded → release-agent)

CLI¶

idp ai "scaffold a Go payment service for team-platform"
# Calls platform-assistant via A2A, streams response to terminal

Component breakdown¶

1. Backstage frontend — `AiAssistantPage`¶

File: backstage/app/packages/app/src/extensions.tsx

Registered as a Backstage frontend plugin extension at route /ai-assistant with a nav item (chat icon) in the sidebar. The component is registered via createFrontendPlugin in extensions.tsx using Backstage's new declarative plugin API (@backstage/frontend-plugin-api v0.15+).

Quick-action chips: On an empty chat, 6 clickable suggestion chips appear (e.g. "Scaffold a Go service", "List deployments", "Find payment services"). Clicking one pre-fills the input — the user still hits Enter to send.

User identity: On every request the frontend sets X-Backstage-User: <userRef> (e.g. user:default/moataz.nabil) as an HTTP header. This header is forwarded to the platform-assistant A2A call and propagated to every MCP tool call. The MCP server binds the user's memory key at the HTTP boundary — the LLM never receives or controls this value, preventing cross-user IDOR.

Message flow per user turn:

1. Generate a UUID contextId (used to locate the session after creation)
2. POST /api/proxy/kagent/a2a/kagent/platform-assistant  { jsonrpc: "2.0", method: "message/send", … }
   headers: { X-Backstage-User: <userRef> }
   — fire and ignore the SSE response (KAgent streams SSE, not JSON)
3. Poll GET /api/proxy/kagent/api/sessions  every 500 ms for up to 12 s
   — find the session whose id matches contextId (or the most-recent platform_assistant session)
4. Poll GET /api/proxy/kagent/api/sessions/<sessionId>  every 1 s for up to 90 s
   — inspect the last agent event:
       function_call present  → tool round-trip in progress, keep polling
       function_response      → agent generating next text, keep polling
       plain text only        → turn complete, render the message
5. Concatenate all non-partial agent text parts and display as the assistant bubble

ask_user / interactive form fallback: KAgent may emit an ask_user function call when it wants to render a form dialog. The Backstage chat UI cannot render ADK form widgets, so the frontend detects this event, extracts the question text from the function call args, and appends them as plain text. The system message Rule 2 now explicitly forbids the agent from calling this tool.

New Chat button: clears local messages state only — the KAgent session on the server is not deleted. Each new message creates a fresh contextId, so the next user turn starts a new server-side session.

2. Backstage proxy config¶

Base config (backstage/app-config.yaml):

proxy:
  endpoints:
    /kagent:
      target: http://kagent-ui.kagent.svc.cluster.local:8080
      allowedMethods: ['GET', 'POST']
      changeOrigin: true

Local override (backstage/app-config.local.yaml):

proxy:
  endpoints:
    /kagent:
      target: http://kagent.idp.local
      allowedMethods: ['GET', 'POST']
      changeOrigin: true

The local override is needed because kagent-ui.kagent.svc.cluster.local is not resolvable from the Backstage Docker Compose container (it runs on the host network, not inside the Kind cluster). The /etc/hosts entry for kagent.idp.local pointing to 127.0.0.1 is sufficient.

3. KAgent agents¶

`platform-assistant` — unified entry point¶

File: kubernetes/kagent/platform-agent.yaml
Model: claude-sonnet (claude-sonnet-4-6)

The primary agent exposed in the Backstage chat UI and the idp ai CLI. Holds all 22 tools from all four MCP servers and routes by intent. On every new session it calls get_user_memory to load the user's preferences (language, team, owner) before responding, so defaults are pre-filled without asking.

Domain	Tools
Platform / IDP	`catalog_search`, `catalog_semantic_search`, `get_service_metrics`, `list_templates`, `get_template_params`, `scaffold_service`, `list_deployments`
User memory	`get_user_memory`, `set_user_memory`
QA / testing	`list_test_suites`, `scaffold_test_suite`, `search_test_catalog`, `get_test_metrics`
Contract testing	`register_contract`, `get_contract`, `list_contracts`, `generate_contract_tests`, `validate_compatibility`, `detect_breaking_changes`, `get_compatibility_report`, `fetch_service_contract`, `auto_discover_contracts`

System message rules (summarised):

Rule	Behaviour
1	Never reference templates from memory — always call `list_templates` first
2	Never call `ask_user` or any interactive confirmation tool
3	Ask for missing info as plain text; ask for ALL fields in one message
4	Scaffold flow: `list_templates` → `get_template_params` → `scaffold_service` — immediately, no confirmation prompt
5	Minimum required fields: `name`, `owner` — scaffold immediately when both are present
6	Session start: call `get_user_memory` before responding; use stored preferences
7	After scaffold: call `set_user_memory` to record service and update count
8	Be concise; show real tool results, not assumptions

Specialist agents¶

Agent	File	Model	Purpose
`idp-assistant`	`kubernetes/kagent/idp-agent.yaml`	claude-haiku	Platform / scaffolding only
`qa-assistant`	`kubernetes/kagent/qa-agent.yaml`	claude-sonnet	Test suites + GitHub PR review
`contract-assistant`	`kubernetes/kagent/contract-agent.yaml`	claude-sonnet	API contracts
`cost-agent`	`kubernetes/kagent/cost-agent.yaml`	claude-sonnet	Cost/budget analysis via `cost-mcp-server` + `catalog_search`
`release-agent`	`kubernetes/kagent/release-agent.yaml`	claude-sonnet	ArgoCD sync/rollback via `argocd-mcp-server` + `list_deployments`
`incident-agent`	`kubernetes/kagent/incident-agent.yaml`	claude-sonnet	Alert triage via `incident-mcp-server` + `get_service_metrics`/`list_deployments`
`security-agent`	`kubernetes/kagent/security-agent.yaml`	claude-sonnet	Read-only: vulnerable deps, secret rotation, policy violations via `security-mcp-server`
`onboarding-agent`	`kubernetes/kagent/onboarding-agent.yaml`	claude-haiku	Template/catalog/docs discovery — reuses `idp-mcp-server`, no new MCP server

Specialist agents are still available at /a2a/kagent/<name> but platform-assistant is the recommended entry point for all developer interactions.

cost-agent and release-agent are also proactive — the event router (§5) invokes them directly on budget alerts and ArgoCD degraded-state webhooks, without a human starting the conversation. release-agent's system prompt requires dry_run: true on sync_app/rollback_app before any real action, and an explicit user confirmation ("go ahead" / "proceed" / "confirm") before dropping dry-run — the only HiTL-style convention in the platform today (see agentic-platform.md Phase 4 for the plan to formalize this into a real approval gate).

ModelConfigs¶

Name	Model	Use
`claude-anthropic`	claude-haiku-4-5-20251001	Fast, cheap — `idp-assistant`
`claude-sonnet`	claude-sonnet-4-6	Balanced — `platform-assistant`, `qa-assistant`, `contract-assistant`
`claude-opus`	claude-opus-4-8	Highest quality — available for future agents
`openai-prod`	gpt-4o	Optional; set `OPENAI_API_KEY` to enable

4. MCP Servers¶

All MCP servers use the @modelcontextprotocol/sdk Streamable HTTP transport. Because McpServer.connect() can only be called once per instance, a fresh McpServer is created per request (createServer() factory).

`idp-mcp-server` (port 3001)¶

File: services/idp-mcp-server/src/index.ts

Tool	Upstream	Notes
`catalog_search`	Backstage `/api/catalog/entities`	Exact-match first, falls back to fuzzy filter
`catalog_semantic_search`	Backstage `/api/rag-search/search`	Natural-language vector search via Voyage AI + pgvector
`get_service_metrics`	Prometheus `/api/v1/query`	Defaults to `http_requests_total`
`list_templates`	Backstage catalog (kind=Template)	Returns name, title, description, templateRef
`get_template_params`	Backstage catalog entity by name	Returns full parameter schema for a template
`scaffold_service`	Backstage scaffolder v2 tasks API	Auto-builds repoUrl; polls for up to 3 min; supports `dry_run: true`
`list_deployments`	Kubernetes apps/v1 Deployments	Defaults to namespace `services`
`get_user_memory`	Kubernetes ConfigMap in `kagent` ns	Reads `user-memory-<userRef>` preferences JSON
`set_user_memory`	Kubernetes ConfigMap in `kagent` ns	Patch-merges key/value into preferences JSON

User memory RBAC: idp-mcp-server has a Role in the kagent namespace granting configmaps get/create/update, bound to the services-dev/idp-mcp-server service account. See kubernetes/kagent/idp-mcp-server-rbac.yaml.

Environment variables:

Variable	Default	Description
`BACKSTAGE_URL`	`http://host.docker.internal:3000`	Internal Backstage URL
`BACKSTAGE_EXTERNAL_URL`	`http://backstage.idp.local`	Browser-accessible URL (used in task output links)
`BACKSTAGE_TOKEN`	(empty)	Static token from `app-config.local.yaml`
`PROMETHEUS_URL`	`http://prometheus-kube-prometheus-prometheus.monitoring:9090`	In-cluster Prometheus
`K8S_API`	`https://kubernetes.default.svc`	In-cluster Kubernetes API
`PORT`	`3001`	HTTP listen port

`qa-mcp-server` (port 3002)¶

4 tools: list_test_suites, scaffold_test_suite, search_test_catalog, get_test_metrics. See services/qa-mcp-server/.

`contract-mcp-server` (port 3003)¶

9 tools for self-describing, self-testing APIs. See docs/contract-testing.md.

`github-mcp-server` (port 3005)¶

File: services/github-mcp-server/src/index.ts

Tool	GitHub API call	Notes
`get_pr_diff`	`GET /repos/{repo}/pulls/{pr}/files`	Returns changed files with additions/deletions
`add_pr_comment`	`POST /repos/{repo}/issues/{pr}/comments`	Posts a markdown comment; emits `[AUDIT]` log
`get_ci_status`	PR head SHA → `GET /repos/{repo}/commits/{sha}/check-runs`	Returns all check-run results
`approve_pr`	`POST /repos/{repo}/pulls/{pr}/reviews` (`event: APPROVE`)	Defaults to `dry_run: true` — no HiTL approval gate exists yet (Phase 4)
`request_changes`	`POST /repos/{repo}/pulls/{pr}/reviews` (`event: REQUEST_CHANGES`)	Defaults to `dry_run: true`; `body` required

Secret: github-mcp-server-token in services-dev namespace, key token. Optional locally (warns on startup if missing), required in AWS.

Used by: qa-assistant for automated PR review; platform-assistant for cross-domain queries.

`argocd-mcp-server` (port 3006)¶

File: services/argocd-mcp-server/src/server.ts (tools), services/argocd-mcp-server/src/index.ts (entrypoint)

Tool	ArgoCD API call	Notes
`list_apps`	`GET /api/v1/applications`	Lists all ArgoCD-managed apps
`get_app_health`	`GET /api/v1/applications/{name}`	Returns sync + health status
`get_app_diff`	`GET /api/v1/applications/{name}/managed-resources`	Live vs. desired state diff
`sync_app`	`POST /api/v1/applications/{name}/sync`	Supports `dry_run: true` (default); `[AUDIT]` log on real sync
`rollback_app`	`POST /api/v1/applications/{name}/rollback`	Supports `dry_run: true` (default); `[AUDIT]` log on real rollback

Secret: argocd-mcp-server-token in services-dev namespace. Optional locally (warns and 401s on tool calls if missing), required in AWS.

The token belongs to the dedicated argocd-mcp account, not admin. That account is declared in local/argocd/argocd-helm-values-local.yaml and aws/argocd/argocd-helm-values.yaml as apiKey-only, scoped to get, sync and action/* on applications — no create, update or delete. Generate with argocd account generate-token --account argocd-mcp.

Used by: release-agent, proactively triggered on ArgoCD OutOfSync/Degraded webhooks.

`cost-mcp-server` (port 3007)¶

File: services/cost-mcp-server/src/server.ts (tools), services/cost-mcp-server/src/index.ts (entrypoint)

Tool	Upstream	Notes
`get_namespace_cost`	OpenCost `/model/allocation`	Per-namespace cost breakdown
`get_team_spend`	Prometheus `idp_team_actual_cost_usd_monthly`	Requires tech-insights-exporter
`list_budget_overruns`	Prometheus `idp_team_*` metrics	Teams over their configured budget
`get_rightsizing_recommendations`	OpenCost `/model/allocation`	Suggests requests/limits adjustments
`forecast_budget`	Prometheus (current burn rate)	End-of-month spend projection

Used by: cost-agent, proactively triggered on TeamBudgetWarning/TeamBudgetExceeded/TeamBudgetOverrun AlertManager alerts.

`incident-mcp-server` (port 3008)¶

File: services/incident-mcp-server/src/server.ts (tools), services/incident-mcp-server/src/index.ts (entrypoint)

Tool	Upstream	Notes
`get_open_incidents`	GitHub issues search, `labels=incident:open`	Reads back what `agent-event-router`'s `createIncidentIssue` writes
`get_alert_history`	Prometheus `ALERTS` metric, `query_range`	Summarizes firing periods over a configurable window (default 24h, max 168h)
`get_runbook`	GitHub contents API, `docs/runbooks/{name}.md`	Falls back to listing available runbooks if the name doesn't match
`post_incident_update`	`POST /repos/{repo}/issues/{issue}/comments`	`[AUDIT]` logged
`send_notification`	Slack incoming webhook	No-op (`sent: false`) if `SLACK_WEBHOOK_URL` is unset

Secrets: reuses github-mcp-server-token for GITHUB_TOKEN; incident-mcp-server-secrets (key slack-webhook-url) for SLACK_WEBHOOK_URL, created by bootstrap-ai.sh --adp when SLACK_WEBHOOK_URL is set in local/.env.

Used by: incident-agent, proactively triggered on critical non-budget AlertManager alerts.

5. Event Bus — `agent-event-router`¶

File: services/agent-event-router/src/index.ts (Express app + webhook auth), services/agent-event-router/src/router.ts (routing logic)

A small Express service (port 3004) that receives webhooks from GitHub, AlertManager, and ArgoCD and fans out to agents via A2A. This is what makes agents proactive — they respond to platform events without a human initiating the conversation.

Source	Trigger	Target agent	Action
GitHub	`pull_request` opened/updated	`qa-assistant`	Review test coverage, post PR comment
GitHub	`push` to main	`idp-assistant`	Notify of new deployment candidate
AlertManager	`firing` alert, name/labels match budget (`TeamBudgetWarning`/`TeamBudgetExceeded`/`TeamBudgetOverrun` or containing "budget")	`cost-agent`	Call `get_team_spend` + `forecast_budget` + `get_rightsizing_recommendations` for the team
AlertManager	`firing` alert, non-budget, `severity: critical`	`incident-agent`	A GitHub incident issue is created first (via `createIncidentIssue`, tracked in-memory by alert fingerprint); the agent message references its issue number. Call `get_alert_history` + `get_runbook`, cross-reference deployments/metrics, post findings via `post_incident_update`
AlertManager	`firing` alert, non-budget, any other severity	`idp-assistant`	Diagnose + suggest remediation
AlertManager	`resolved` status for a tracked fingerprint	(none — closes the GitHub issue via `resolveIncidentIssue`)	Closes the incident issue opened above
ArgoCD	App `OutOfSync` or `Degraded`	`release-agent`	Call `get_app_health` + `get_app_diff`, then propose sync or rollback (dry-run first)

Security: - GitHub webhooks: HMAC-SHA256 signature verified via crypto.timingSafeEqual with raw body capture. Fails closed (503) if GITHUB_WEBHOOK_SECRET is not configured. - AlertManager / ArgoCD webhooks: Authorization: Bearer <WEBHOOK_TOKEN> required. - All routes respond 200 immediately (fire-and-forget) to avoid webhook timeout.

Secrets: - agent-event-router-webhook-token in services-dev namespace (key: token) — used as the bearer token in AlertManager's http_config.authorization.credentials. - GITHUB_WEBHOOK_SECRET env var on the deployment.

Local ingress: http://agent-event-router.idp.local

6. `idp ai` CLI¶

File: cli/cmd/idp/ai.go

# Ask anything — streams the platform-assistant response to your terminal
idp ai "scaffold a Go payment service for team-platform"
idp ai "what services are owned by team-qa?"
idp ai "show me the error rate for hello-service"

# Override the KAgent URL (defaults to http://kagent.idp.local)
KAGENT_URL=http://my-cluster.example.com idp ai "list deployments"
idp ai --kagent-url http://my-cluster.example.com "list deployments"

# Adjust timeout (default 300s)
idp ai --timeout 60 "quick catalog search"

The command posts a JSON-RPC 2.0 A2A message to platform-assistant, then polls /api/sessions for a response. Tool status lines are printed to stderr during processing so you can see what the agent is doing.

7. MLflow page — `/mlflow`¶

File: backstage/app/packages/app/src/extensions.tsx (MlflowPage)

Surfaces experiment tracking and the model registry inside the portal, so the output of the mlflow-experiment template and idp:run-training-job is visible without leaving Backstage. Sidebar entry MLflow; "Open MLflow UI ↗" links out to the real UI via externalLinks.mlflow.

Three calls, all through the proxy, against the MLflow 2.x REST surface — the platform runs server v2.13.0 (kubernetes/ml-platform/mlflow.yaml) and 3.x-only endpoints 404 against it, the same pin MLFLOW_CLIENT_VERSION carries in idpRunTrainingJob.ts:

Data	Call
Experiments	`POST /api/2.0/mlflow/experiments/search`
Runs	`POST /api/2.0/mlflow/runs/search` (one query for all experiments, capped at 50, reduced client-side)
Registered models	`GET /api/2.0/mlflow/registered-models/search`

Because two of the three are POST, the proxy entry must list it:

# backstage/app-config.local.yaml
    /mlflow:
      target: http://mlflow.idp.local
      allowedMethods: ['GET', 'POST']
      changeOrigin: true
      pathRewrite:
        '^/api/proxy/mlflow': ''

# backstage/app-config.aws.yaml — in-cluster Service DNS, since the ALB
# hostname isn't known when this file is rendered into the ConfigMap
    /mlflow:
      target: http://mlflow.ml-platform.svc.cluster.local:5000
      allowedMethods: ['GET', 'POST']
      changeOrigin: true
      pathRewrite:
        '^/api/proxy/mlflow': ''

Three display states, unlike the KAgent page's single demo fallback: demo data with an amber banner when aiStack.enabled is false (nothing is deployed, so no request is made at all); live tables when the API answers; and a red banner carrying the failing endpoint and HTTP status when MLflow is deployed but unreachable. A crashed pod therefore reads as an outage, not as "not installed".

Page and nav item are gated by page:custom-pages/mlflow-platform / nav-item:custom-pages/mlflow-platform, disabled by default and flipped on by bootstrap-ai.sh. That list is replaced, not merged, per config layer, so all four copies must agree: backstage/app-config.yaml, app-config.local.yaml, app-config.aws.yaml, and the heredoc in write_backstage_ai_overlay() (scripts/lib.sh).

On AWS, bootstrap-ai.sh patches MLFLOW_ALB_URL into the backstage-config ConfigMap and sets MLFLOW_EXTERNAL_URL on the Deployment once the MLflow ALB has a hostname.

Scaffolding flow (step-by-step)¶

When a user says "scaffold a Python FastAPI service called demo-svc, description demo, owner group:default/qa-platform-team":

Agent turn 1 (same response):
  1. call list_templates
     → returns template list including template:default/python-service
  2. call get_template_params { template_ref: "template:default/python-service" }
     → returns { params: [ {key:"name", required:true}, {key:"description",...}, ... ] }
  3. All required fields (name, description, owner) are already known
  4. call scaffold_service {
       template_ref: "template:default/python-service",
       values: { name: "demo-svc", description: "demo", owner: "group:default/qa-platform-team" }
     }
     → MCP server auto-builds repoUrl: "github.com?owner=qa-platform-team&repo=demo-svc"
     → POSTs to Backstage scaffolder, polls until completed/failed (up to 3 min)
     → returns { task_id, status: "completed", ui_url: "http://backstage.idp.local/create/tasks/<id>" }
  5. Agent responds with task result and the Backstage task URL

The agent never breaks this into multiple turns or asks for confirmation.

Guardrails & Audit Log¶

Structured audit log¶

Every tool call on idp-mcp-server, contract-mcp-server, argocd-mcp-server, github-mcp-server, and incident-mcp-server emits a structured [AUDIT] JSON line to stdout for mutating actions (scaffold_service, register_contract, sync_app/rollback_app, add_pr_comment, approve_pr/request_changes, post_incident_update, send_notification). cost-mcp-server has no audit log — all five of its tools are read-only.

[AUDIT] {"ts":"2026-06-09T12:00:00Z","server":"idp-mcp-server","action":"scaffold_service_requested","agent":"platform-assistant","service":"demo-svc","template":"python-service","dry_run":false}

Field	Description
`ts`	ISO-8601 timestamp
`server`	MCP server name (`idp-mcp-server`, `contract-mcp-server`)
`action`	Tool-specific action identifier (e.g. `scaffold_service_requested`, `register_contract_requested`)
`agent`	Agent ID extracted from the `X-Agent-ID` header, falling back to `User-Agent`
Tool-specific fields	e.g. `service`, `template`, `dry_run`, `provider`, `version`

ADP Phase 4 (HiTL approval gate): approval-service (docs/agentic-platform.md) emits its own [AUDIT] lines with event: "approval_requested", "approval_auto_approved", and "approval_decided", each carrying approval_id, action, agent, target, and — once decided — decision/decided_by. This is the audit trail for every approval a human made (or that Policy-as-Prompt auto-approved) — cross-reference the approval_id that appears in the gated tool's own [AUDIT] entries (sync_app_requested, etc.) once those tools pass one through.

Querying audit logs in Loki¶

# All audit events from the IDP MCP server
{app="idp-mcp-server"} |= "[AUDIT]" | json

# Scaffold calls only
{app="idp-mcp-server"} |= "[AUDIT]" | json | action="scaffold_service_requested"

# Contract registration events
{app="contract-mcp-server"} |= "[AUDIT]" | json | action="register_contract_requested"

Per-agent attribution metrics¶

The mcp_agent_tool_calls_total{server,tool,agent} Prometheus counter tracks every tool call broken down by MCP server, tool name, and agent ID:

# Tool call rate per agent
rate(mcp_agent_tool_calls_total{server="idp-mcp-server"}[5m])

# Error rate per tool
rate(mcp_tool_calls_total{outcome="error"}[5m]) /
rate(mcp_tool_calls_total[5m])

These metrics are visible in the AI Platform Grafana dashboard at http://grafana.idp.local/d/ai-platform.

dry_run mode¶

Pass dry_run: true to scaffold_service to get a preview of what would be created without actually creating anything:

1	`User: "dry run: scaffold a Go service called test-svc, owner platform-team"`

The agent detects "dry run", "preview", or "what would happen" phrasing and passes dry_run: true to the tool. The tool returns a preview JSON showing the template, values, and computed repoUrl without making any Backstage scaffolder calls.

KAgent system-prompt guardrails¶

kubernetes/kagent/idp-agent.yaml includes guardrail rules that govern agent behaviour:

Rule	Behaviour
9	Announce to the user before performing any destructive or state-changing operation (scaffold, deploy)
10	Support `dry_run: true` — use it when the user says "dry run", "preview", or "what would happen if"
11	If `scaffold_service` has been called more than 3 times in the same session, pause and ask the user to confirm intent before proceeding

Agent ID extraction¶

The MCP server extracts the calling agent's identity from HTTP headers in priority order:

X-Agent-ID header (set explicitly by KAgent)
User-Agent header (fallback — includes the KAgent agent name)

This identity is used in both the [AUDIT] log entry and the mcp_agent_tool_calls_total{agent} label, enabling per-agent attribution in Grafana and Loki.

Guardrail alerts¶

Two PrometheusRules in the kagent-guardrails group alert on abnormal agent behaviour:

Alert	Condition	Severity
`ScaffoldServiceHighRate`	> 5 scaffold calls in 10 min from any agent	Warning
`McpToolErrorRateHigh`	> 50% error rate on any MCP tool	Warning

Both alerts route to Slack #platform-alerts. See the KAgent Guardrails runbook.

Where the AI pages come from (and why they're hidden)¶

The AI pages — AI Assistant, AI Search, Agent Approvals, KAgent Platform — are disabled by default. bootstrap-local.sh on its own installs no AI stack, so those pages and their sidebar nav items would dead-end on a connection error. They are revealed only once the stack behind them exists.

Layer	File	AI pages
Base	`backstage/app-config.yaml`	`disabled: true` for all four, `aiStack.enabled: false`
Local overlay (generated)	`local/backstage/app-config.ai.yaml`	Written `false` by `bootstrap-local.sh`, `true` by `bootstrap-ai.sh`, back to `false` by `bootstrap-ai.sh --destroy`
AWS	`backstage/app-config.aws.yaml`	Enabled — this layer replaces the extensions array and doesn't re-disable them

Both scripts call one helper, write_backstage_ai_overlay in scripts/lib.sh, so the list can't drift between them.

Three things to know before touching this:

Config is read only at startup. Running bootstrap-ai.sh does not make the pages appear in a running Backstage — restart it with ./scripts/bootstrap-local.sh --start-backstage.
Backstage replaces app.extensions arrays, it does not merge them. The generated overlay must repeat every entry from the earlier layers. Anything you add to app-config.yaml's extension list has to be added to write_backstage_ai_overlay too, or the overlay silently drops it.
The page:kubernetes: disabled entry in that generated list is not AI-related and not optional. The standalone Kubernetes route renders the entity Kubernetes tab outside any entity context and dies with "Entity context is not available". Because of rule 2, dropping it from the overlay brings that crash back.

aiStack.enabled is a separate flag for the same state: it drives the hardcoded AI links on the custom Home / Support / Learning Center pages, which app.extensions can't reach. The same helper keeps the two in step.

The file is gitignored and generated — hand edits are lost on the next bootstrap run.

Troubleshooting¶

The AI overlay is off, or Backstage hasn't restarted since it was turned on.

grep -A1 'custom-pages/ai-assistant' local/backstage/app-config.ai.yaml   # disabled: true/false?
./scripts/bootstrap-ai.sh                                                # deploy the stack (adds --adp for approvals)
./scripts/bootstrap-local.sh --start-backstage                           # restart to pick up the config

If the file doesn't exist at all, docker compose up will bind-mount a directory in its place and Backstage will fail to parse it — run either bootstrap script to regenerate it.

"AI assistant did not respond (no session created)"¶

KAgent is not running or the proxy target is wrong.

# Check KAgent pods
kubectl get po -n kagent

# Check the proxy is reachable from Backstage
# (in the Backstage container or from the host)
curl http://kagent.idp.local/api/sessions

Agent resets to "what would you like to do?"¶

This was caused by two bugs, both now fixed: 1. get_template_params was missing from the agent's toolNames list — the tool call failed silently and the agent lost its place in the scaffold flow. 2. The system message allowed the agent to ask "Should I proceed?" — when the user replied in a new message the previous context was not available, causing a reset.

Fix applied: Both issues are now fixed in the source: get_template_params is implemented in services/idp-mcp-server/src/index.ts and listed in kubernetes/kagent/idp-agent.yaml toolNames. Rule 4 + Rule 5 now require immediate scaffold_service invocation.

AI-Native Platform (Phase 7a Complete)¶

The platform has been enhanced with comprehensive AI capabilities beyond the chat assistant:

Multi-Provider Model Support ✅¶

Deploy agents using Claude Anthropic (default) or OpenAI GPT-4o:

# Both ModelConfigs available via kubernetes/kagent/
# - modelconfig-anthropic.yaml (Claude Haiku / Sonnet)
# - modelconfig-openai.yaml (GPT-4o)

# Use in agent spec:
#   modelConfig: claude-anthropic
#   # or
#   modelConfig: openai-prod

Setup: Set OPENAI_API_KEY in local/.env before running ./scripts/bootstrap-ai.sh.

Model Serving & Inference ✅¶

Deploy trained models as inference APIs:

# Via Backstage:
# Create → Model Serving API
# → Ollama (local Kind) or vLLM (AWS EKS with GPU)

# Manually:
helm upgrade --install my-model helm/service-template \
  --set image.repository=localhost:5003/my-model \
  --namespace ml-platform

Custom action: idp:deploy-model-server with secure TLS verification.

AI Platform Scorecard ✅¶

Quality gates for AI services (Bronze/Silver/Gold tiers):

Bronze: Agent deployed + health checks passing
Silver: + deepeval CI eval suite + Grafana observability dashboard
Gold: + cost attribution labels + system prompt versioned in ConfigMap

View in Backstage Tech Insights tab on any service entity. Three new checks: has-model-card, has-eval-suite, has-ai-observability.

Prompt Lifecycle Management¶

System prompts live inline as systemMessage on each KAgent Agent CRD in kubernetes/kagent/<agent>.yaml — one file per agent, versioned in Git:

Version history and diffs come from Git history on the agent manifest
Rollback is an ArgoCD revert of that manifest
Editing a prompt means editing the CRD; the KAgent controller reconciles the change

# Edit the prompt in Git (preferred — ArgoCD reconciles the change):
$EDITOR kubernetes/kagent/release-agent.yaml   # spec.systemMessage

# Or, to try a prompt change against the live cluster before committing:
kubectl edit agent release-agent -n kagent

Extracting prompts into standalone ConfigMaps (with a Backstage "Update Agent Prompt" template as the front door) is not implemented — there is no kubernetes/kagent/prompts/ directory. Note this also means the Gold-tier "system prompt versioned in ConfigMap" scorecard item above is satisfied by Git versioning of the CRD, not by a separate ConfigMap.

ML Workflows (Argo Workflows) ✅¶

Multi-step training + evaluation pipelines:

# Install (optional):
./scripts/bootstrap-local.sh --install-argo-workflows

# Access at: http://argo-workflows.idp.local

# Scaffold pipeline:
# Create → ML Training Job → outputs Argo Workflow YAML

Cost Attribution ✅¶

Track AI API spend per team:

Team labels on all Agent CRDs (team: platform, team: quality)
ai_api_calls_total metric with {server, model, tool} labels
Grafana dashboard: cost per team / model

RAG Semantic Search ✅¶

AI search across TechDocs, runbooks, catalog:

# Via Backstage AI Assistant:
/ai-search

# Search query: "how to debug deployment failures"
# → Returns relevant runbooks, ADRs, documentation

Backend: Voyage AI embeddings + pgvector. The vector store is the Backstage Postgres itself — the pgvector/pgvector image in local/backstage/docker-compose.yml, initialised by local/backstage/init-pgvector.sql; on AWS, the vector extension on the same Aurora/RDS instance.

AI Observability Dashboard ✅¶

Monitor MCP servers in Grafana:

Tool call rate per server (idp, qa, contract)
Call latency P50/P95/P99
Error rates and retry patterns
Token usage per model (if available)

Dashboard: Grafana → "AI Platform"

LLM observability (Langfuse)¶

Prometheus counts that a tool was called. Langfuse records what the model actually did: the prompt, the completion, token counts, cost, latency, and the tool calls inside each agent run.

On by default on both targets, so local matches what you ship. The chart brings Postgres, ClickHouse, Valkey and MinIO with it (6 pods, ~2.4Gi), which is a real cost on a single-node Kind cluster — see docs/local-setup.md:

./scripts/bootstrap-ai.sh                 # local: Langfuse included
./scripts/bootstrap-ai.sh --aws           # AWS: Langfuse included
./scripts/bootstrap-ai.sh --skip-langfuse # either target: lighter cluster, no LLM tracing

Then open AI Observability in the Backstage sidebar, or http://langfuse.idp.local directly. The admin login is printed during bootstrap and recoverable with:

kubectl get secret langfuse-init -n ml-platform \
  -o jsonpath='{.data.LANGFUSE_INIT_USER_PASSWORD}' | base64 -d

How traces get there¶

Nothing in Backstage produces them. KAgent exports OTLP directly:

Agent LLM calls — the KAgent runtime already ships OpenLLMetry instrumentors (Anthropic, OpenAI, Google), so enabling otel.tracing is enough to get gen_ai.* spans that Langfuse parses natively into model, tokens and cost. bootstrap-ai.sh --langfuse appends that block to the KAgent values and mounts the OTLP auth header from the langfuse-kagent-otel Secret.
MCP tool calls — each server wraps its tools in a span (services/*/src/telemetry.ts), tagged with langfuse.session.id (the calling agent) and langfuse.user.id (the Backstage user). No-ops entirely unless LANGFUSE_OTLP_ENDPOINT is set.

Gotcha, and it fails silently. The OTLP protocol value must be the exact string http/protobuf. KAgent compares against that literal and falls back to gRPC for anything else — including the intuitive "http" — which sends gRPC frames at Langfuse's HTTP ingest path and drops every span with no error in any log.

Input/output capture is off by default (LANGFUSE_CAPTURE_IO). Tool arguments and results can carry PII and credentials, and Langfuse is a separate store from the [AUDIT] log stream. Turn it on deliberately.

Instrumenting your own service¶

The two paths above cover platform-owned workloads. For a team's own service there are two self-service front doors in the scaffolder:

Template	Use when
Enable Langfuse LLM Tracing (`enable-langfuse-tracing`)	The service already exists. Opens a PR adding a drop-in telemetry module (runnable for Node.js and Python, setup notes for Go/JVM/Ruby), the Helm `envFrom` block, and the catalog annotation.
LLM App (Python + Langfuse) (`llm-app-langfuse`)	You are starting a new one. Scaffolds a FastAPI service calling Claude with the instrumentation already wired.

Both produce a service that reports into the same idp-agents project, tagged with its own name — there is no per-service project or key pair to manage.

How the credentials reach a service namespace¶

The project key pair is minted in-cluster into secret/langfuse-init in ml-platform, and Kubernetes Secrets are namespace-scoped. The platform therefore copies it, by label, into a langfuse-otel Secret in every namespace that opts in:

kubectl label namespace <ns> idp.io/langfuse=enabled
./scripts/bootstrap-ai.sh --langfuse-keys-only     # idempotent; deploys nothing

bootstrap-ai.sh --langfuse labels services-dev and runs this itself, so a service deployed there needs nothing extra. Workloads already running when the Secret lands need a restart — envFrom is read at container start.

Opting in by label rather than by a hardcoded namespace list is deliberate: a scaffolded service lands in a namespace this script has never heard of, and asking a developer to edit a bootstrap script to turn on their own tracing is not self-service.

On AWS the same pair is also mirrored to Secrets Manager at idp-mvp/langfuse/project-keys, so teams who prefer pure GitOps can commit an ExternalSecret named langfuse-otel instead. Locally there is no External Secrets install (that is bootstrap.sh, not bootstrap-local.sh), so the label is the only mechanism there.

Cost shows $0.00 for a model Langfuse doesn't know¶

Langfuse ships a built-in model price table, and a pinned chart's table is frozen at its release date — this build stops at claude-opus-4-8. A trace on anything newer still records tokens and latency correctly, but Langfuse cannot price it, so calculatedTotalCost is 0 and every cost column reads $0.00. It looks exactly like broken instrumentation and is not.

bootstrap-ai.sh seeds the missing definitions after Langfuse comes up (see _seed_langfuse_model_prices), so this is handled on a fresh install. Two things to know:

Pricing is applied at ingest. Traces recorded before the price existed keep their $0.00; only new traces are priced.
Seeded models price input/output only. Langfuse's create endpoint accepts the older unit + inputPrice/outputPrice schema, not the prices map its built-in entries expose, so cached tokens fall back to the full input price rather than the discounted cache rate. A cache-heavy workload therefore reads slightly high. Add the cache tiers by hand in the Langfuse UI if that matters.

When a new model appears, add it to the specs list in that function.

Per-service view¶

A component carrying the langfuse.com/service-name annotation grows a Langfuse tab on its Backstage entity page, showing that service's traces, cost and average latency. It filters by Langfuse tag — the instrumentation sets langfuse.trace.tags to the service name, because /traces.name is the HTTP route KAgent served and sessionId is a per-conversation UUID, so neither identifies a service. Keep the annotation equal to OTEL_SERVICE_NAME in the service's Helm values; they are the two halves of that filter.

When the AI Observability page shows no data¶

The page reads Langfuse through the Backstage /langfuse proxy, so a failure can sit in either. Work outwards from Langfuse:

# 1. Is Langfuse itself serving? (expects 6 pods — use instance, not name:
#    app.kubernetes.io/name is per-component and matches only web + worker)
kubectl get pods -n ml-platform -l app.kubernetes.io/instance=langfuse

# 2. Do the project keys work directly? (expects 200)
PK=$(kubectl get secret langfuse-init -n ml-platform -o jsonpath='{.data.LANGFUSE_INIT_PROJECT_PUBLIC_KEY}' | base64 -d)
SK=$(kubectl get secret langfuse-init -n ml-platform -o jsonpath='{.data.LANGFUSE_INIT_PROJECT_SECRET_KEY}' | base64 -d)
curl -s -o /dev/null -w '%{http_code}\n' -u "$PK:$SK" http://langfuse.idp.local/api/public/traces?limit=1

# 3. Does it work through Backstage? (expects 200)
#    Not a secret: this is the static local dev token declared in plaintext under
#    backend.auth.externalAccess in backstage/app-config.local.yaml.
BACKSTAGE_TOKEN=local-catalog-exporter-token
curl -s -H "Authorization: Bearer ${BACKSTAGE_TOKEN}" \
  'http://backstage.idp.local/api/proxy/langfuse/api/public/traces?limit=1'

Symptom	Cause
`AuthenticationError: Missing credentials` on any `/api/proxy/*` route	Backstage's global backend auth gate, not a Langfuse problem. Browsers send a session token; `curl` needs the static `backend.auth.externalAccess` token, as in step 3 above.
`401` from Langfuse itself	`LANGFUSE_BASIC_AUTH` is not reaching Backstage, so the proxy falls back to its `not-configured` default. Locally it must be listed under `environment:` in `local/backstage/docker-compose.yml` — `bootstrap-ai.sh` writes it to `local/backstage/.env`, but Compose reads that file for interpolation only and will not forward it on its own.
`504`, and the error names backstage.idp.local as the target	`langfuse.idp.local` is missing from `extra_hosts` in the compose file, so it resolves to `127.0.0.1` inside the container and the proxy loops back into Backstage's own port 3000.
nginx `502` on the whole portal	Backstage is down, not Langfuse. Locally it is a Docker Compose container, not a pod — check `docker ps -a --filter name=backstage` and `docker logs backstage-backstage-1`. A duplicate key anywhere in `app-config.*.yaml` throws `YAMLParseError: DUPLICATE_KEY` and exits the container; note that Python's `yaml.safe_load` accepts duplicates silently, so validating that way proves nothing.
Page renders, but every run shows `0.0s`	A stale frontend bundle. `/traces` reports latency in seconds; dividing by 1000 was a real bug, fixed — rebuild the Backstage image to pick it up.

Config files are bind-mounted read-only, so app-config.*.yaml changes need only a container restart. Only frontend/backend code changes need a rebuild — and on a capacity-tight local node, scale the six Langfuse workloads to 0 first, rebuild, then scale back. The trace data lives in PVCs and survives that.

Prompt versioning¶

scripts/sync-agent-prompts.py pushes each agent's systemMessage to Langfuse as a versioned prompt, and fails CI when a CRD and Langfuse disagree:

python3 scripts/sync-agent-prompts.py --push          # CRDs → Langfuse
python3 scripts/sync-agent-prompts.py --check         # drift gate
python3 scripts/sync-agent-prompts.py --check-evals   # CRD vs the DeepEval copy (runs in CI)

Git stays the source of truth. KAgent has no per-invocation prompt fetch, so Langfuse is the authoring and review surface, not the runtime. systemMessageFrom (a ConfigMap/Secret reference) does exist in kagent.dev/v1alpha2 and is the path to deploying Langfuse-authored prompts without editing CRDs.

--check-evals matters more than it looks: the DeepEval suite keeps a verbatim copy of idp-agent.yaml's prompt, and when that copy drifts, CI grades a prompt that is not deployed.

Re-applying after a cluster rebuild¶

bootstrap-ai.sh applies the MCP servers, ModelConfigs, and the default agent set automatically — idp, qa, release, cost, platform, contract. The remaining three (incident, security, onboarding) install only when you ask for them:

./scripts/bootstrap-ai.sh --agents all          # all nine
./scripts/bootstrap-ai.sh --agents idp,security # an explicit subset
./scripts/bootstrap-ai.sh --agents list         # print what is available

Re-running prunes agents outside the selection, so --agents idp on a cluster that has all nine will remove the other eight. Each agent is one pod; see Local Setup for why that matters on a small machine, and Scripts Reference for the full flag list.

To target specific resources manually:

# Redeploy a single MCP server
helm upgrade --install github-mcp-server helm/service-template \
  --namespace services-dev --create-namespace \
  --values services/github-mcp-server/helm-values-local.yaml --wait

# Re-apply all KAgent resources
kubectl apply -f kubernetes/kagent/modelconfig-sonnet.yaml
kubectl apply -f kubernetes/kagent/ai-gateway-toolserver.yaml
kubectl apply -f kubernetes/kagent/platform-agent.yaml

# Rebuild a service image after code changes
cd services/github-mcp-server && docker build -t localhost:5003/github-mcp-server:0.1.0 . && docker push localhost:5003/github-mcp-server:0.1.0
kubectl rollout restart deployment/github-mcp-server -n services-dev

What's next¶

Sprints 1-4 above are delivered and documented in this file. The remaining roadmap (incident/security agents, RAG expansion, HiTL approval + Policy-as-Prompt) has been reorganized into the Agentic Development Platform (ADP) epic — see agentic-platform.md for the phased plan and current status.

Scaffold task stuck in "processing"¶

# Check task status directly in Backstage
open http://backstage.idp.local/create/tasks/<task-id>

# Check the scaffolder backend logs
kubectl logs -n backstage -l app=backstage --tail=50

"No description available" for agent tools in KAgent UI¶

The KAgent controller connects to the MCP server to fetch tool metadata via tools/list. If a tool is listed in the agent's toolNames but not exported by the MCP server, the controller cannot resolve all tools and displays "No description available" for all of them.

Check the controller logs:

kubectl logs -n kagent deployment/kagent-controller --tail=30 | grep -E "error|registered"

If you see no such host: idp-mcp-server.services-dev.svc.cluster.local, the MCP server is not deployed:

kubectl get pods -n services-dev
# If missing, deploy manually:
helm upgrade --install idp-mcp-server helm/service-template \
  --namespace services-dev --create-namespace \
  --values services/idp-mcp-server/helm-values-local.yaml --wait

"No metrics found for …"¶

The service's /metrics endpoint is not yet scraped. Check that a ServiceMonitor exists in the services namespace and that Prometheus has discovered it:

kubectl get servicemonitor -n services
# Then check Prometheus targets: http://prometheus.idp.local/targets

Rebuilding the IDP MCP Server image¶

After any code change to services/idp-mcp-server/:

./scripts/bootstrap-ai.sh --skip-mlflow --skip-kagent
# Rebuilds and pushes the idp-mcp-server image only, then reloads the deployment

Or manually:

docker build -t localhost:5003/idp-mcp-server:latest services/idp-mcp-server/
docker push localhost:5003/idp-mcp-server:latest
kubectl rollout restart deployment/idp-mcp-server -n kagent

AI Search (Semantic / RAG)¶

The /ai-search page in Backstage provides semantic search over the service catalog and rendered TechDocs content (runbooks, architecture docs, this file) using Voyage AI embeddings stored in pgvector.

Architecture¶

Browser → Backstage frontend (AiSearchPage)
            ↓  GET /api/rag-search/search?q=<query>
          Backstage backend (idpRagSearch plugin)
            ↓  Voyage AI API (voyage-3-lite, 512-dim)
            ↓  PostgreSQL + pgvector (HNSW cosine similarity)
            → top-10 results with similarity score

Indexing (every 30 min, or POST /api/rag-search/index):
  1. Catalog entities — GET {catalogBase}/entities (description, tags, owner)
  2. External sources — ragSearch.externalSources config (optional, off by default)
  3. TechDocs pages — for every entity with a backstage.io/techdocs-ref annotation,
     fetch {techdocsBase}/static/docs/<namespace>/<kind>/<name>/search/search_index.json
     (the same per-entity search index the TechDocs UI's own search box reads) and
     index each page's rendered text. This goes through the techdocs-backend, so it
     works the same whether the publisher is local filesystem (Kind) or S3 (AWS) —
     it does NOT read markdown source files directly.

Prerequisites¶

Add your Voyage AI API key to local/backstage/.env:

1	`VOYAGE_API_KEY=your-key-here`

Sign up at https://www.voyageai.com — the free tier provides 200M tokens/month, which is more than sufficient for a local IDP catalog.

Without VOYAGE_API_KEY, the /ai-search page loads but returns HTTP 503 on every search. All other Backstage features are unaffected.

How pgvector is provisioned¶

local/backstage/docker-compose.yml uses the pgvector/pgvector:pg17 image instead of plain postgres:17-alpine. On the first container startup (empty volume), local/backstage/init-pgvector.sql is executed automatically via docker-entrypoint-initdb.d. It:

Creates the vector extension
Creates the rag_documents table (512-dim embedding column + metadata)
Creates an HNSW index for fast cosine-similarity search

This runs automatically — no manual SQL step required. After a cluster destroy + --start-backstage, the volume is re-created and the SQL runs again on the fresh Postgres instance.

Backend plugin¶

File: backstage/app/packages/backend/src/modules/idpRagSearch.ts

Registered in backend/src/index.ts as ragSearchPlugin. Exposes three endpoints:

Endpoint	Method	Description
`/api/rag-search/search?q=<query>`	GET	Returns top-10 semantically similar results (catalog entities + TechDocs pages)
`/api/rag-search/index`	POST	Triggers a manual re-index of catalog entities + TechDocs pages
`/api/rag-search/status`	GET	Returns last-indexed timestamp and document count

The plugin auto-indexes the catalog and TechDocs every 30 minutes (configurable via ragSearch.indexIntervalMinutes in app-config.yaml). A page only gets indexed once its TechDocs site has been built at least once (visit the entity's Docs tab, or wait for the scheduled TechDocs build) — the indexer reads the already-built search_index.json, it does not trigger a TechDocs build itself.

Configuration (`app-config.yaml`)¶

ragSearch:
  voyageApiKey: ${VOYAGE_API_KEY}
  indexIntervalMinutes: 30
  externalSources: []   # optional list of documentation URLs to include

Troubleshooting¶

Search returns 503

VOYAGE_API_KEY is missing or empty in local/backstage/.env. Add the key and restart Backstage (./scripts/bootstrap-local.sh --start-backstage).

No results / stale results

Trigger a manual re-index:

curl -X POST http://backstage.idp.local/api/rag-search/index
# Or click the "Re-index" button on the /ai-search page

Check indexing status:

1	`curl http://backstage.idp.local/api/rag-search/status`

pgvector extension missing

The rag_documents table won't exist if Backstage was started before the init-pgvector.sql fix was committed. Tear down and restart Docker Compose:

docker compose -f local/backstage/docker-compose.yml down -v
./scripts/bootstrap-local.sh --start-backstage

AI Assistant¶

Self-hosted models (no API key required)¶

Scaffolding a model server¶

Architecture¶

CLI¶

Component breakdown¶

1. Backstage frontend — AiAssistantPage¶

2. Backstage proxy config¶

3. KAgent agents¶

platform-assistant — unified entry point¶

Specialist agents¶

ModelConfigs¶

4. MCP Servers¶

idp-mcp-server (port 3001)¶

qa-mcp-server (port 3002)¶

contract-mcp-server (port 3003)¶

github-mcp-server (port 3005)¶

argocd-mcp-server (port 3006)¶

cost-mcp-server (port 3007)¶

incident-mcp-server (port 3008)¶

5. Event Bus — agent-event-router¶

6. idp ai CLI¶

7. MLflow page — /mlflow¶

Scaffolding flow (step-by-step)¶

Guardrails & Audit Log¶

Structured audit log¶

Querying audit logs in Loki¶

Per-agent attribution metrics¶

dry_run mode¶

KAgent system-prompt guardrails¶

Agent ID extraction¶

Guardrail alerts¶

Where the AI pages come from (and why they're hidden)¶

Troubleshooting¶

An AI page is missing from the sidebar¶

"AI assistant did not respond (no session created)"¶

Agent resets to "what would you like to do?"¶

AI-Native Platform (Phase 7a Complete)¶

Multi-Provider Model Support ✅¶

Model Serving & Inference ✅¶

AI Platform Scorecard ✅¶

Prompt Lifecycle Management¶

ML Workflows (Argo Workflows) ✅¶

Cost Attribution ✅¶

RAG Semantic Search ✅¶

AI Observability Dashboard ✅¶

LLM observability (Langfuse)¶

How traces get there¶

Instrumenting your own service¶

How the credentials reach a service namespace¶

Cost shows $0.00 for a model Langfuse doesn't know¶

Per-service view¶

When the AI Observability page shows no data¶

Prompt versioning¶

Re-applying after a cluster rebuild¶

What's next¶

Scaffold task stuck in "processing"¶

"No description available" for agent tools in KAgent UI¶

"No metrics found for …"¶

Rebuilding the IDP MCP Server image¶

AI Search (Semantic / RAG)¶

Architecture¶

Prerequisites¶

How pgvector is provisioned¶

Backend plugin¶

Configuration (app-config.yaml)¶

Troubleshooting¶

1. Backstage frontend — `AiAssistantPage`¶

`platform-assistant` — unified entry point¶

`idp-mcp-server` (port 3001)¶

`qa-mcp-server` (port 3002)¶

`contract-mcp-server` (port 3003)¶

`github-mcp-server` (port 3005)¶

`argocd-mcp-server` (port 3006)¶

`cost-mcp-server` (port 3007)¶

`incident-mcp-server` (port 3008)¶

5. Event Bus — `agent-event-router`¶

6. `idp ai` CLI¶

7. MLflow page — `/mlflow`¶

Configuration (`app-config.yaml`)¶
