Engineering Intelligence — Architecture¶

Engineering Intelligence is a scoring layer over the telemetry this platform already produces. It does not collect anything new in its first phase, and it does not replace anything that exists.

This page covers the architecture as it stands, the target shape, and — most usefully — an honest inventory of which data genuinely exists today.

Current architecture (what Engineering Intelligence sits on)¶

Backstage 1.50.4, running the new frontend and backend systems:

Layer	Shape
Frontend	`createApp` from `@backstage/frontend-defaults`; every upstream plugin imported from its `/alpha` entry point. All ~24 custom pages and ~12 entity tabs live in a single 7,700-line `packages/app/src/extensions.tsx`, exported as one `customPagesPlugin`. Nav is a `NavContentBlueprint` in `packages/app/src/modules/nav/Sidebar.tsx` that auto-includes any new page alphabetically
Backend	`createBackend()`; 19 files under `packages/backend/src/modules/`, mostly scaffolder actions, plus three full `createBackendPlugin` instances: `rag-search`, `learning-center`, and now `engineering-intelligence`
Storage	Postgres (`pgvector/pgvector:pg17` locally, RDS on AWS). Backstage's `PluginDatabaseManager` provisions a database per plugin. There are no knex migration directories — schema is created with idempotent `CREATE TABLE IF NOT EXISTS` inside `init()`
Integrations	17 configured `proxy.endpoints`: OpenCost, Prometheus, Grafana, KAgent, MLflow, Langfuse, contract-mcp, approval-service, SonarCloud, Snyk, Datadog, GitHub issues, GitHub code scanning, PagerDuty, Jira, ArgoCD, GitHub Copilot
Observability	kube-prometheus-stack + Pushgateway. Four Python CronJob exporters push custom series: DORA, Tech Insights scorecard, flaky tests, catalog shape
AI	KAgent agents, eight MCP sidecars, MLflow, Langfuse for LLM tracing, DeepEval for agent evaluation in CI

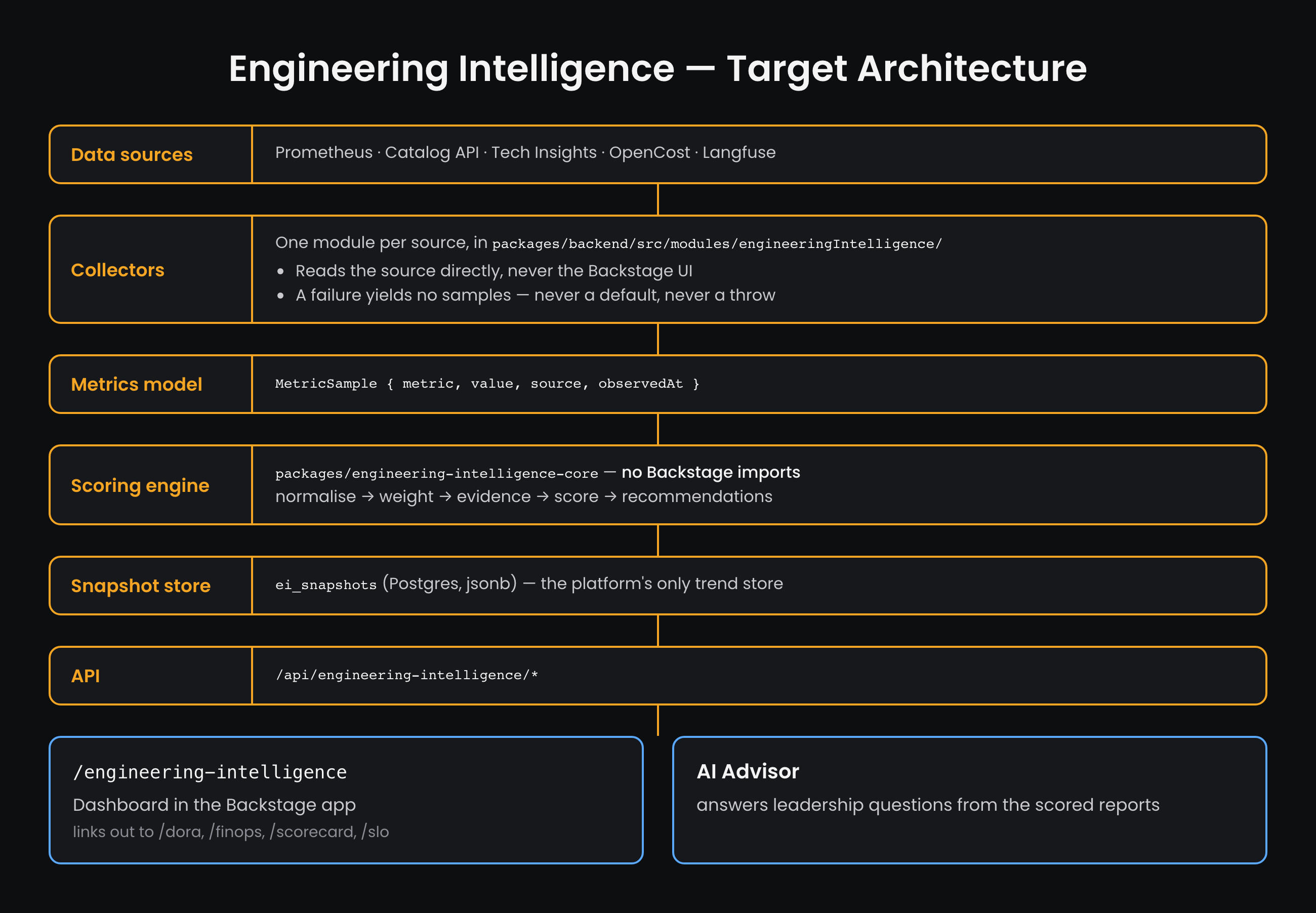

Target architecture¶

Data sources        Prometheus · Catalog API · Tech Insights · OpenCost · Langfuse
                                         │
Collectors          one module per source, in
                    packages/backend/src/modules/engineeringIntelligence/
                    · reads the source directly, never the Backstage UI
                    · failure yields no samples — never a default, never a throw
                                         │
Metrics model       MetricSample { metric, value, source, observedAt }
                                         │
Scoring engine      packages/engineering-intelligence-core  ← no Backstage imports
                    normalise → weight → evidence → score → recommendations
                                         │
Snapshot store      ei_snapshots (Postgres, jsonb) — the platform's only trend store
                                         │
API                 /api/engineering-intelligence/*
                                         │
                    ┌────────────────────┴────────────────────┐
       /engineering-intelligence                AI Advisor (phase 9)
       (its own frontend plugin,
        links out to /dora, /finops,
        /scorecard, /slo, /langfuse)

The one architectural rule worth stating plainly: the scoring engine imports nothing from Backstage. It is a plain TypeScript package that takes samples and returns a report. That is what lets the dashboard and the AI Advisor read the same scores instead of each growing a copy — the failure this repo already has three instances of in its Bronze/Silver/Gold logic. See ADR-0006.

Components¶

Path	Role
`backstage/app/packages/engineering-intelligence-core/`	The engine. `model.ts` (types), `normalize.ts` (raw → 0–100), `dimensions.ts` (declarative scoring policy), `score.ts`, `recommend.ts`, `maturity.ts` (the five levels), `aiReadiness.ts` (the second scored model), `evaluation.ts` (evaluation results by risk category), `aiCost.ts` (spend attribution), `advisor.ts` (context construction and the citation guardrail), `benchmark.ts` (submission shape and anonymity floor — transmits nothing), `tenancy.ts` (organisation scoping)
`backstage/app/packages/backend/src/modules/idpEngineeringIntelligence.ts`	The plugin: scheduling, persistence, HTTP routes
`.../modules/engineeringIntelligence/{prometheus,catalog,techInsights,opencost,langfuse,langfuseScores,aiCost,scaffolder,mlflow}.ts`	One collector per source
`.../modules/engineeringIntelligence/{collect,store,source}.ts`	Orchestration, snapshots, shared transport
`backstage/app/packages/app/src/engineeringIntelligence/`	The dashboard. `plugin.tsx` (page + nav item), `api.ts` (typed client), `present.ts` (pure display logic, tested), `EngineeringIntelligencePage.tsx`

API¶

All routes require an authenticated user; there is no unauthenticated surface.

Route	Returns
`GET /api/engineering-intelligence/health`	The latest `HealthReport`, plus `evidenceGaps`
`GET /api/engineering-intelligence/dimensions/:id`	One dimension with full evidence and `missing`
`GET /api/engineering-intelligence/maturity`	Current level, whether it is confirmed, target level, gap and actions
`GET /api/engineering-intelligence/platform`	Platform Health breakdown: counts, template usage, and the named services off the golden path
`GET /api/engineering-intelligence/ai-readiness`	AI Engineering Readiness across twelve areas, scored by the same engine
`GET /api/engineering-intelligence/evaluation`	Evaluation results by risk category, with per-suite pass rates
`GET /api/engineering-intelligence/ai-cost`	AI spend by workload, team and model, with the unattributed remainder
`POST /api/engineering-intelligence/advisor`	Answers a leadership question from the reports, with the sanitised context it used
`GET /api/engineering-intelligence/report/executive`	Score, what improved, what declined, top risks, and what cannot be measured
`GET /api/engineering-intelligence/recommendations`	Ranked recommendations, each carrying its evidence
`GET /api/engineering-intelligence/snapshots?limit=`	Persisted history, for trends
`POST /api/engineering-intelligence/refresh`	Forces a collection

Configuration¶

engineeringIntelligence in backstage/app/app-config.yaml — base layer, since the defaults hold for every target and the source addresses come from the per-environment proxy.endpoints. Schema in packages/backend/config.d.ts.

engineeringIntelligence:
  refreshMinutes: 30          # matches the techInsights fact cadence it reads
  sources: { prometheus: true, opencost: true, langfuse: true, catalog: true, techInsights: true }
  weights: { finops: 2 }      # optional; defaults to 1 per dimension

Langfuse needs langfuse.publicKey / langfuse.secretKey for server-side collection — the frontend never holds these, because the proxy injects them. Without them the AI observability signal reports unavailable rather than assuming there are no traces.

What data actually exists¶

This is the part worth reading before proposing a metric. Everything below was verified against main.

Dimension	Real data today	Where from
Platform	Ownership coverage, golden-path adoption (`backstage.io/source-template`), Gold-tier ratio, deploy frequency, scaffolder success rate	Catalog API, Tech Insights, `dora_deploy_frequency_per_day`, scaffolder `/v2/tasks`
Quality	Scorecard check pass ratio, test flakiness, test pass/fail counts	Tech Insights facts; `idp_test_*` from `observability/flaky-test-exporter/`
Reliability	Change failure rate, MTTR	`dora_change_failure_rate_percent`, `dora_mttr_minutes`
FinOps	Team budget utilisation, cost-weighted resource efficiency	`idp_team_budget_utilization_ratio`; OpenCost `/allocation/compute`
AI Engineering	Governance checks (model card, eval suite, AI observability), MCP tool success rate, whether LLM traces are flowing	Tech Insights; `mcp_tool_calls_total`; Langfuse `/api/public/metrics/daily`
Security	Whether Sonar/Snyk/Trivy scanning is declared	Tech Insights — control presence, not findings
Developer Experience	Deployment lead time, PR cycle time, CI duration, build failure rate	`dora_lead_time_minutes`, `devex_*` — all from the DORA exporter CronJob

What does not exist, and is therefore not scored¶

Review latency (time to a pull request's first review). It needs a per-PR call to /pulls/{n}/reviews; the rate-limit cost was not worth it for a first cut. Environment provisioning time and onboarding timing are also unmeasured. The three DevEx metrics that are collected landed in phase 5.
Security findings. Dependabot alerts, Kyverno PolicyReports and secret rotation are live-queried via security-mcp-server and never persisted. There are no kyverno_*, trivy_* or gitleaks_* series.
Code coverage and e2e pass rate. Both appear on the QA Grafana dashboard, but the only thing that ever wrote them was scripts/seed-qa-metrics.sh, now removed — they are demo values. Deliberately excluded from the Quality dimension.
SLO error budgets. Sloth rules exist for hello-service alone.
AI cost attribution is convention-based. Phase 8 joins a trace to a catalog entity through its name, which works for KAgent agents and MCP servers but breaks for any workload named differently. Unmatched spend is reported as an explicit remainder rather than guessed at.
Cloud spend outside Kubernetes. No Cost Explorer or CUR integration.

Two traps¶

Metric names. docs/dora-finops.md used to document idp_deploy_frequency, idp_lead_time_seconds, idp_change_failure_rate and idp_mttr_seconds. Those series do not exist — the real ones are dora_deploy_frequency_per_day, dora_lead_time_minutes, dora_change_failure_rate_percent and dora_mttr_minutes. The doc has been corrected; build from the exporter, not from prose.

Retention. Prometheus keeps 6 hours locally and 30 days on AWS, with no long-term store and no recording rules for any custom series. Pushgateway gauges are last-write-wins. This is why the plugin persists its own snapshots from the first refresh, and why no history can be back-filled.

Verifying it¶

1	`./scripts/verify-engineering-intelligence.sh --screenshot`

Boots the real Backstage image against a real Postgres, with a stub standing in for Prometheus and OpenCost, and asserts every figure the fixtures imply — scores, evidence sums, the withheld dimensions, the maturity level, snapshot persistence, and a 401 on an unauthenticated request. Roughly two minutes warm, against ~19 for a cold bootstrap-local.sh.

It does not exercise real Prometheus or OpenCost response shapes. Those are stubbed, and only a real cluster proves them — which is the one thing worth running bootstrap-local.sh for.

On a real local install, expect several dimensions to report insufficient-evidence at first, for honest reasons:

Dimension	Needs
Quality	The Tech Insights retriever to have run — cadence is `*/30`
Reliability, Developer Experience	`GITHUB_TOKEN` in `local/.env` and repos carrying the `idp-app` topic. No scaffolded services means no `dora_` or `devex_` series at all
AI Engineering	`bootstrap-ai.sh --langfuse`, and `LANGFUSE_BASIC_AUTH` exported from the `langfuse-init` secret
Security	Nothing yet — it is control-presence only

Golden-path adoption will also read near zero on a fresh install: the platform's own catalog entities are hand-written YAML carrying no backstage.io/source-template. That is correct, and it is what the number is for.
