Overview

Platform Architecture

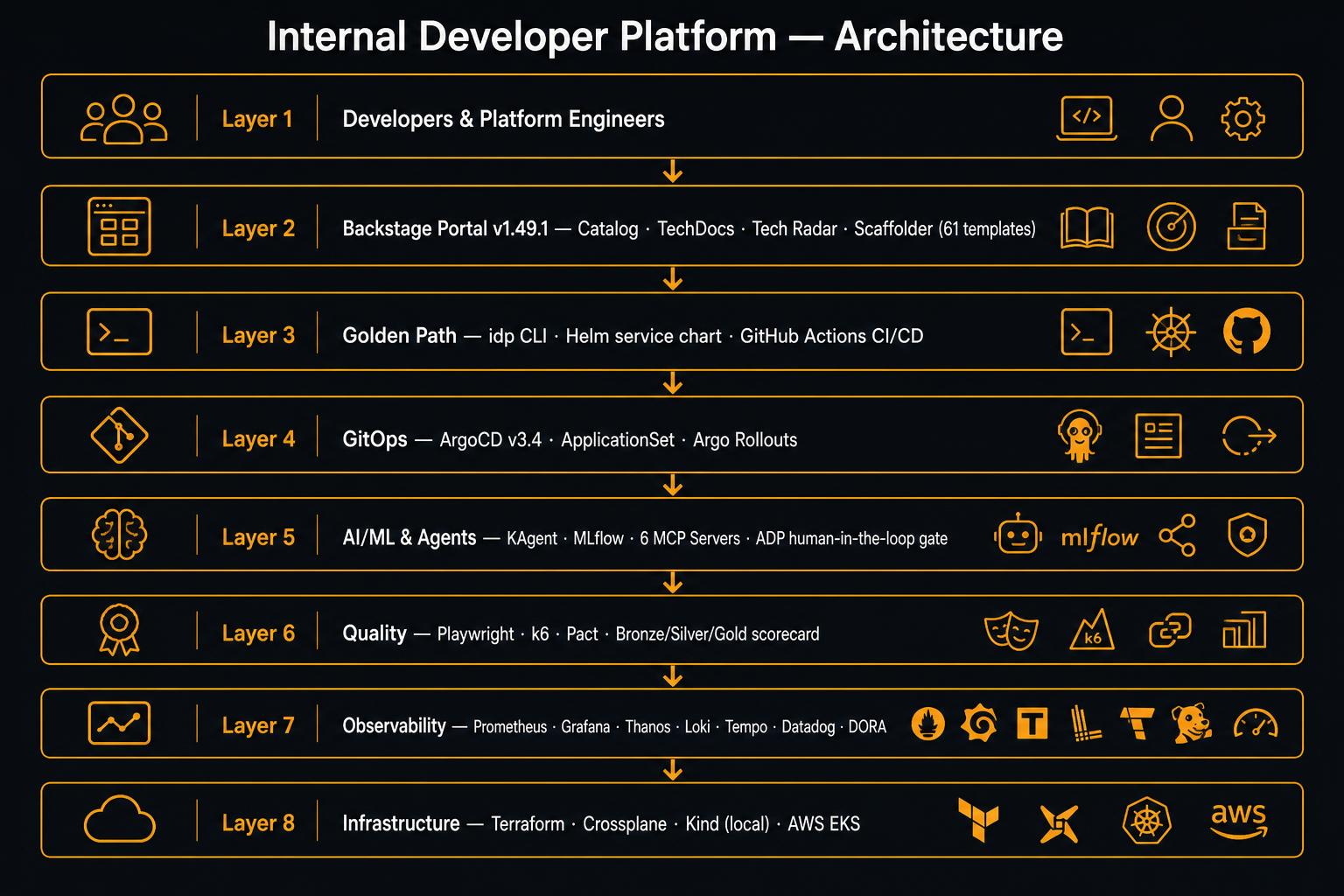

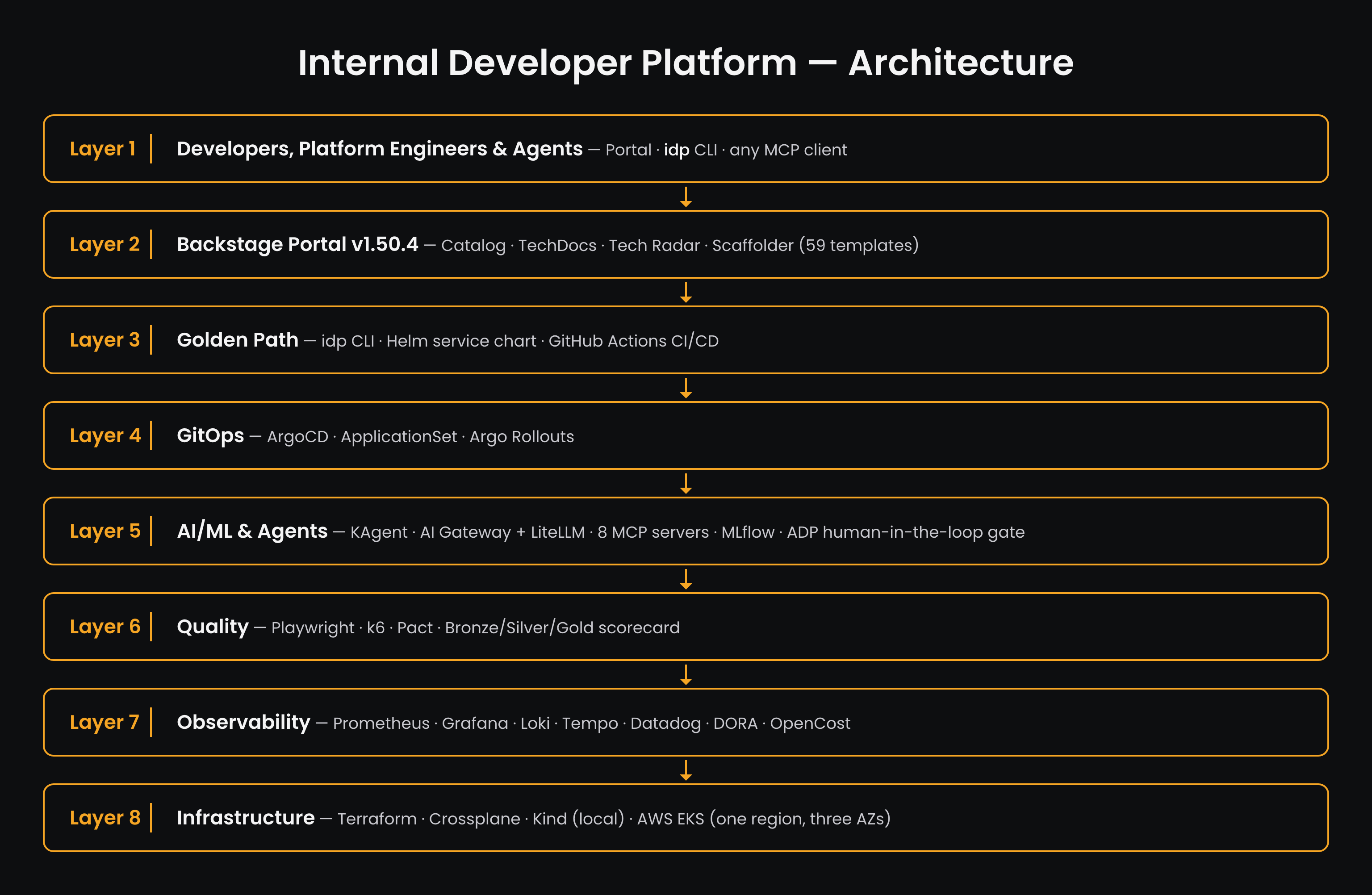

Six layers — Developer Portal (Backstage + templates + AI), Golden Paths (21 service templates + 18 QA templates + 5 Crossplane Claims), AI-Native IDP (KAgent agents + MLflow + MCP servers + Argo Workflows), Delivery & Quality (GitHub Actions + ArgoCD + Helm + scorecard gates), Runtime (Kubernetes: Kind locally, EKS on AWS + Crossplane), Observability & Infra (Prometheus + Grafana + DORA + Terraform).

Interaction Model

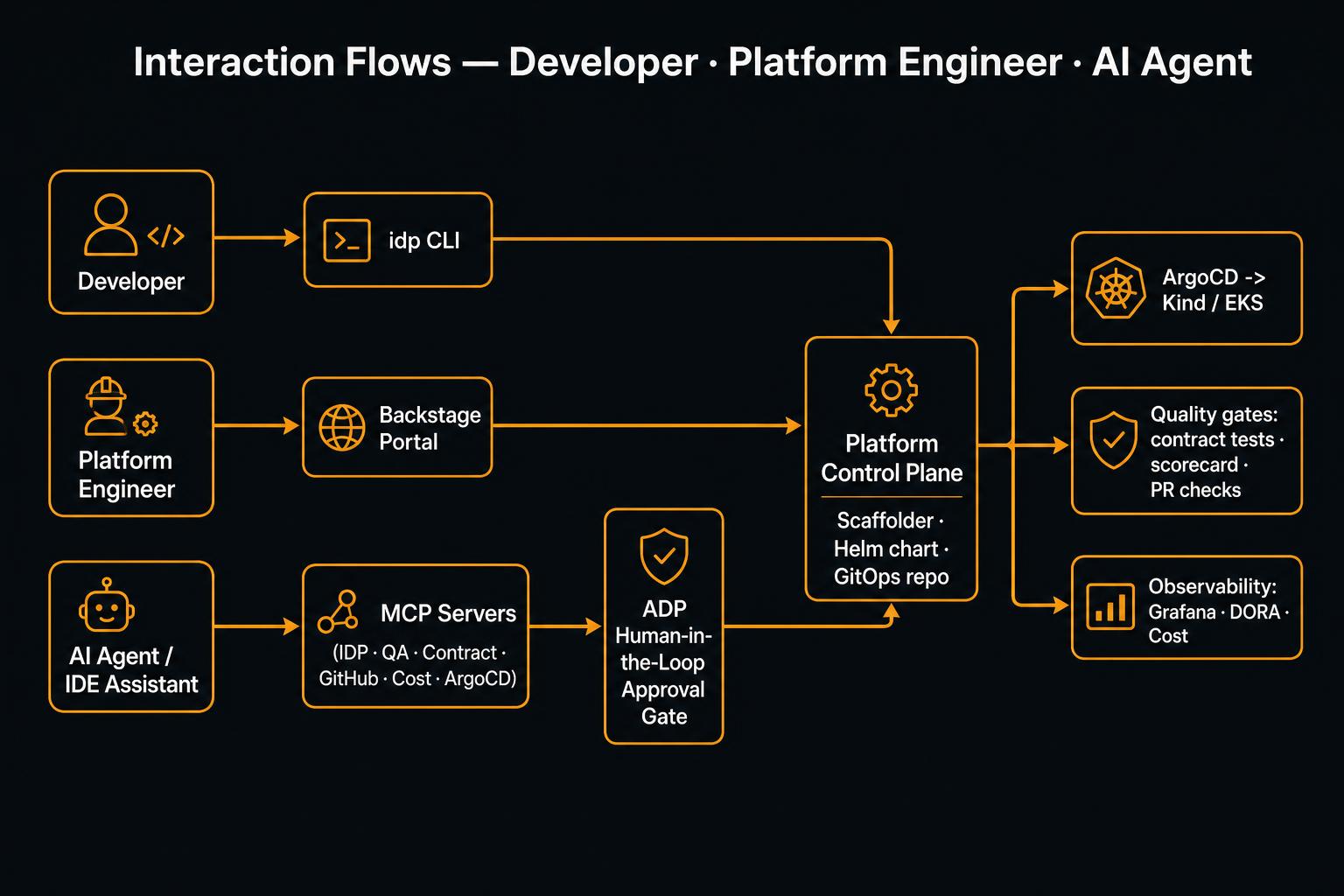

Developer & Platform Engineer Interaction Flows

Three channels connect developers, platform engineers, and AI agents to the platform control plane:

# Channel Entry point Reaches
1 CLI (idp) idp scaffold service, idp template list Scaffolder Engine → GitHub repo → CI
2 Backstage Portal Software Catalog, 21 software templates, 18 QA templates, TechDocs, Tech Radar, AI Assistant, DORA tab, Tech Insights Scaffolder Backend → Catalog API → ArgoCD
3 AI Agent / MCP KAgent agents (IDP, QA, Contract assistants) powered by Claude / GPT-4o IDP MCP Server (6 tools), QA MCP Server, Contract MCP Server (9 tools) → Platform APIs

All three channels converge on the Platform Control Plane: GitHub Actions CI, ArgoCD GitOps sync, Helm golden-path chart, Crossplane Claims — targeting Kind locally or AWS EKS 1.32 in production.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
┌─────────────────────────────────────────────────────────────────────┐

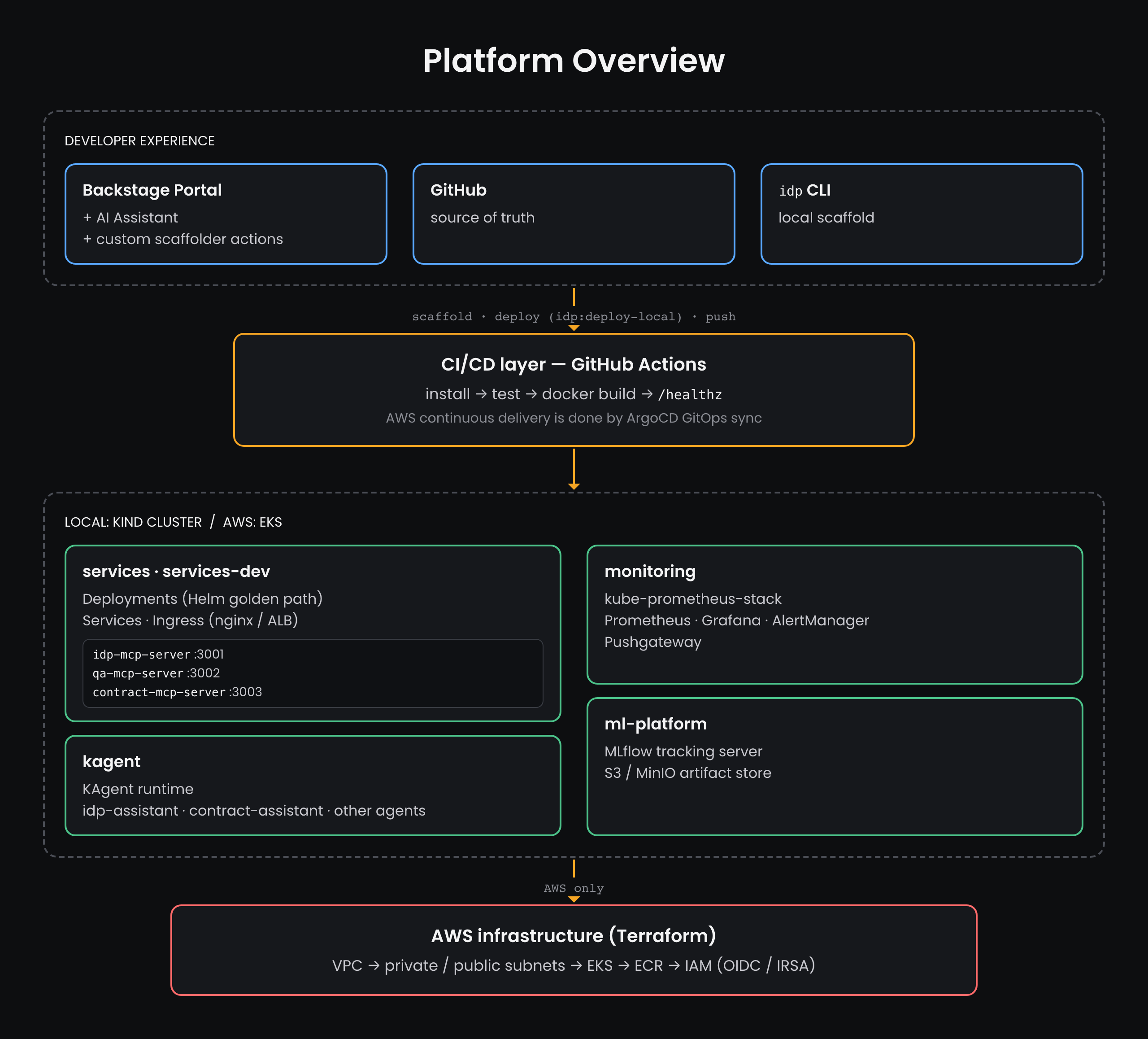

│                       Developer Experience                           │
│  ┌────────────────── ┐  ┌──────────────┐  ┌────────────────────────┐ │
│  │  Backstage        │  │  GitHub      │  │  create-service.sh     │ │
│  │  Portal           │  │  (source)    │  │  (CLI scaffold)        │ │
│  │  + AI Assistant   │  └──────┬───────┘  └────────────────────────┘ │
│  │  + custom actions │         │ push                                │
│  └──────┬───────┬────┘         │                                     │
└─────────┼───────┼──────────────┼─────────────────────────────────────┘
          │       │              │
  scaffold│  deploy              │ push
          │  (idp:deploy-local)  ▼
          │       │   ┌──────────────────────────────────────────┐
          │       │   │           CI/CD Layer                    │
          │       │   │  GitHub Actions (ubuntu-latest)          │
          │       │   │  install → test → docker build → /healthz│
          │       │   └────────────────┬─────────────────────────┘
          │       │                    │ (AWS CD — planned)
          ▼       ▼                    ▼
┌───────────────────────────────────────────────────────────────────── ┐
│               Local: Kind cluster  /  AWS: EKS                       │
│                                                                      │
│  namespace: services              namespace: monitoring              │
│  ┌──────────────────────┐         ┌────────────────────────────────┐ │
│  │ Deployments (Helm)   │         │ kube-prometheus-stack          │ │
│  │ Services             │         │ (Prometheus + Grafana +        │ │
│  │ Ingress (nginx/ALB)  │         │  AlertManager + Pushgateway)   │ │
│  └──────────────────────┘         └────────────────────────────────┘ │
│                                                                      │
│  namespace: kagent                namespace: ml-platform             │
│  ┌──────────────────────┐         ┌────────────────────────────────┐ │
│  │ KAgent (AI agents)   │         │ MLflow tracking server         │ │
│  │ idp-assistant Agent  │◄───────►│ S3/MinIO artifact store        │ │
│  │ contract-assistant   │         │                                │ │
│  │ IDP MCP Server       │         └────────────────────────────────┘ │
│  │ QA MCP Server        │                                            │
│  │ Contract MCP Server  │         namespace: services-dev            │
│  └──────────────────────┘         ┌────────────────────────────────┐ │
│                                   │ contract-mcp-server (port 3003)│ │
│                                   │ idp-mcp-server (port 3001)     │ │
│                                   │ qa-mcp-server  (port 3002)     │ │
│                                   └────────────────────────────────┘ │
└───────────────────────────────────────────────────────────────────── ┘
                    │ (AWS only)
                    ▼
┌─────────────────────────────────────────────────────────────────────┐
│                 AWS Infrastructure (Terraform)                      │
│   VPC → Private/Public Subnets → EKS → ECR → IAM (OIDC/IRSA)        │
└─────────────────────────────────────────────────────────────────────┘

Key Design Decisions

Convention over configuration

Every service gets the same: container registry, CI workflow, Helm chart structure, health check paths, namespace, and monitoring. Developers don't configure these — they inherit them from the golden path.

Helm as the single deployment abstraction

The helm/service-template chart is the single deployment unit for both local (Kind) and cloud (EKS). Service teams override only two files — helm-values-local.yaml (Kind/nginx) or helm-values-aws.yaml (EKS/ALB) — no raw Kubernetes YAML.

CI only in GitHub Actions (for now)

Scaffolded service workflows run test on ubuntu-latest. No self-hosted runners are required. CD is handled by the idp:deploy-local Backstage action (local) or will be added as an AWS deploy job when secrets are configured.

Custom Backstage action for local deploy

idp:deploy-local is a backend module registered in the Backstage scaffolder. It runs helm upgrade --install from inside the Backstage container using a kubeconfig rewritten to reach the host's Kind cluster via host.docker.internal.

OIDC for keyless CI/CD auth (AWS)

GitHub Actions authenticates to AWS via OIDC (aws-actions/configure-aws-credentials), eliminating long-lived secrets. The IAM role is scoped to the specific GitHub org.

IRSA for pod-level AWS access

Kubernetes service accounts are annotated with IAM role ARNs. Pods assume fine-grained IAM roles without node-level credentials (EKS IRSA). IRSA roles exist for: Backstage, ESO (shared), DORA exporter, Grafana (CloudWatch read), MLflow (S3), KAgent ESO (Secrets Manager).

External Secrets Operator (AWS)

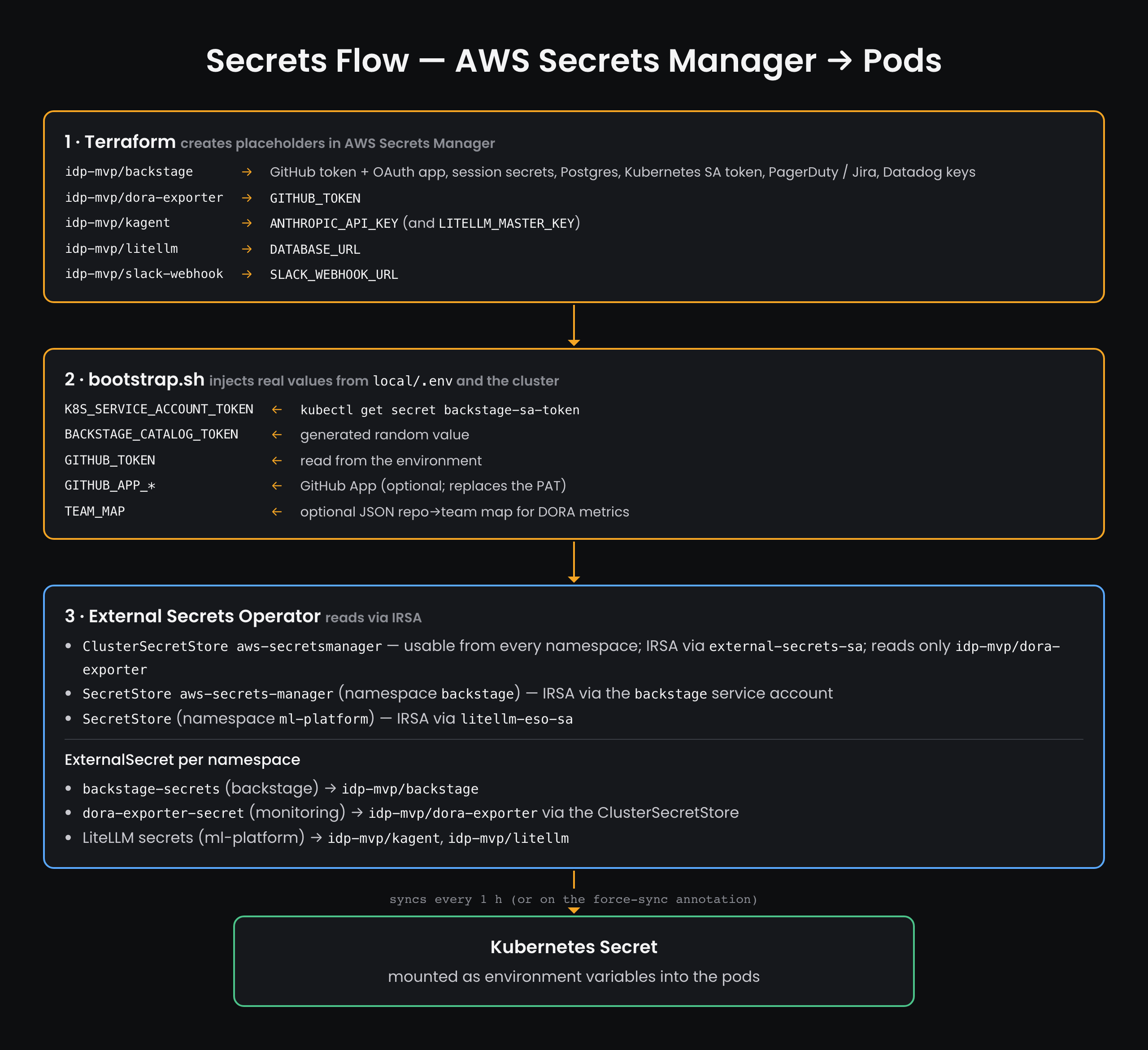

ESO syncs secrets from AWS Secrets Manager into Kubernetes Secret objects. A single cluster-scoped ClusterSecretStore named aws-secretsmanager is created during bootstrap and shared by all ExternalSecret resources (Backstage credentials, DORA exporter token, KAgent API key). The ESO ServiceAccount is annotated with the Backstage IRSA role ARN so it can read idp-mvp/* secrets without static credentials.

Observability parity (local = AWS)

Both environments use kube-prometheus-stack (Prometheus + Grafana + AlertManager bundled). AWS uses gp3 persistent volumes; local uses hostPath. Both install Prometheus Pushgateway as a separate Helm release so that apply-catalog-exporter.sh and the exporter CronJobs can push metrics without modification.

On AWS only Grafana gets a public ALB. Prometheus, AlertManager, Pushgateway, OpenCost and the Argo Rollouts dashboard deliberately have no ingress: each one costs ~$16/mo for a load balancer, and each was internet-facing with no authentication in front of it. They are operator tools reachable with kubectl port-forward — bootstrap.sh prints the exact command for each in its closing banner. Consolidating the remaining ALBs behind one hostname needs DNS; see the cost section of the deployment guide.

AWS Load Balancer Controller (AWS)

All Ingress resources use ingressClassName: alb, backed by the AWS Load Balancer Controller. Supports target-type: ip (pod-level routing without NodePort).

IaC split: Terraform (foundation) + Crossplane (per-service)

Both tools coexist by lifecycle, not by resource type. Terraform owns one-shot foundation (VPC, EKS, IAM, ECR, Secrets Manager scaffolding, and the IRSA role Crossplane providers assume). Crossplane owns day-2 per-service resources (S3, RDS, MSK topics, DynamoDB, SQS) requested via Backstage scaffolder templates and reconciled in-cluster by ArgoCD — no manual terraform apply step. See crossplane-vs-terraform.md for the decision matrix and crossplane.md for the end-to-end flow.

Repository Layout

The repository is split into three top-level directories based on deployment target:

1
2
3
local/          → 100% local-only (Kind / Rancher Desktop)
aws/            → 100% AWS-only  (EKS / Terraform / Secrets Manager)
kubernetes/     → 100% shared    (applied by both bootstrap scripts)
Directory Owned by Contains
local/ bootstrap-local.sh Kind cluster config, nginx ingress values, Docker Compose for Backstage, local ArgoCD ApplicationSet, local Prometheus values, DORA exporter (local)
aws/ bootstrap.sh ArgoCD values + app-of-apps, External Secrets Operator, Crossplane providers + compositions, Backstage K8s deployment + external secret, KAgent AWS values/ingress/secret, ALB ingresses, MLflow (S3 backend), DORA exporter (AWS), AWS Prometheus values
kubernetes/ Both scripts Namespaces (namespaces.yaml, services-quota.yaml), RBAC, OPA/Gatekeeper policies, Kyverno team policies (policies/kyverno/), team entities, shared monitoring dashboards (ConfigMaps), KAgent agent CRDs, Backstage RBAC + configmap
kubernetes/namespaces/services-quota.yaml Both scripts ResourceQuota + LimitRange for services-dev/staging/prod namespaces
kubernetes/policies/kyverno/ Both scripts Kyverno ClusterPolicies: team-quota-policy.yaml (auto-generate quota from tier label), crossplane-team-label-policy.yaml (inject idp:team tag + require owner/costCenter)
kubernetes/rbac/cluster-roles.yaml Both scripts idp-developer, idp-team-lead, idp-platform-admin ClusterRoles
terraform/ Manual (terraform apply) EKS, VPC, RDS, ECR, IAM/OIDC, Secrets Manager scaffolding, iam-team-secret-store.tf (per-team ESO IAM roles)
helm/service-template/ Both Single Helm chart used by every service
helm/values-tiers/ Manual Small/Medium/Large Helm value tiers for Backstage and ArgoCD
services/<svc>/ Per-service CI Legacy flat service values: helm-values-local.yaml (Kind), helm-values-aws.yaml (EKS)
teams/<teamName>/services/<svc>/ Per-team CI Team-scoped service values (auto-discovered by per-team ApplicationSet)
backstage/catalog/all-templates.yaml Both Single Location file indexing the 63 AWS-shared templates (the 64th, deploy-to-kind, is local-only and registered in app-config.local.yaml); replaces the individual URL entries previously listed in app-config.aws.yaml
observability/ Both Shared alerting rules, Grafana dashboards (grafana-helm-values.yaml with sidecar enabled), DORA/tech-insights exporters
backstage/ Both Portal source, app-config.yaml (base), app-config.local.yaml (local overrides), catalog templates (all tagged v1 + blessed/advanced)
scripts/ Both bootstrap-local.sh (local), bootstrap.sh (AWS), bootstrap-ai.sh (both), shared lib.sh

Bootstrap script ownership: - bootstrap-local.sh reads from local/ + kubernetes/ only — never touches aws/ - bootstrap.sh reads from aws/ + kubernetes/ only — never touches local/

AI/ML Platform

How the AI Assistant works end-to-end

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
Backstage UI (extensions.tsx)
  AiAssistantPage — React chat component at /ai-assistant
    │
    │  POST /api/proxy/kagent/a2a/kagent/idp-assistant  (A2A JSON-RPC)
    │  GET  /api/proxy/kagent/api/sessions/<id>          (poll for response)
    ▼
Backstage proxy  →  KAgent UI (kagent-ui.kagent.svc.cluster.local:8080)
                     A2A server routes to the idp-assistant Agent CRD
                                │
                                │  MCP over Streamable HTTP
                                ▼
                     IDP MCP Server  (idp-mcp-server:3001/mcp)
                       catalog_search    → Backstage catalog API
                       get_service_metrics → Prometheus
                       list_templates    → Backstage catalog (Templates)
                       get_template_params → Backstage catalog entity
                       scaffold_service  → Backstage scaffolder v2
                       list_deployments  → Kubernetes apps/v1 API

Scaffolding flow (single agent turn)

When the user provides name, description, and owner in one message, the agent completes the entire scaffold in one response turn without asking for confirmation:

1
list_templates → get_template_params → scaffold_service (immediate)

The agent manifest (kubernetes/kagent/idp-agent.yaml) enforces this via the system message: Rule 4 requires scaffold_service to be called immediately once all required fields are known, and Rule 5 defines those fields as name, description, and owner.

Key files

File Purpose
backstage/app/packages/app/src/extensions.tsx AI Assistant React page + chat polling logic
backstage/app-config.yaml KAgent proxy target (in-cluster)
backstage/app-config.local.yaml KAgent proxy target override (local ingress)
kubernetes/kagent/idp-agent.yaml Agent CRD: model, system message, tool allowlist
kubernetes/kagent/ai-gateway-toolserver.yaml The one RemoteMCPServer CRD — points at the AI Gateway, which multiplexes all eight MCP servers
kubernetes/ml-platform/ai-gateway.yaml AI Gateway (agentgateway) Deployment, Service and routing config
kubernetes/kagent/modelconfig.yaml Claude Anthropic model configuration
services/idp-mcp-server/src/index.ts MCP server implementing all 6 tools

For the full deep-dive see docs/ai-assistant.md.

Component Inventory

Component Path Purpose
EKS cluster terraform/eks.tf Cloud compute platform
VPC terraform/vpc.tf Network isolation
ECR terraform/ecr.tf Cloud container registry
IAM + OIDC terraform/iam.tf Keyless CI/CD auth
Crossplane IRSA role terraform/iam-crossplane.tf IAM role assumed by Crossplane AWS providers
Crossplane providers + Compositions aws/crossplane/ Per-service S3/RDS/MSK/DynamoDB/SQS via Claims
ArgoCD Crossplane stack aws/argocd/crossplane.yaml Sync-wave-ordered install: core → providers → compositions
Service chart helm/service-template/ Deployment template (local + AWS)
Platform CI/CD .github/workflows/build-and-deploy.yml Root platform pipeline
Backstage config backstage/app-config.yaml Portal configuration
Backstage local config backstage/app-config.local.yaml Local overrides (guest auth, local techdocs; also disables standalone /kubernetes and /catalog-graph pages; enables dangerouslyDisableDefaultAuthPolicy for local dev)
Node.js template backstage/catalog/templates/nodejs-service/ Express service scaffold
Python template backstage/catalog/templates/python-service/ FastAPI service scaffold
Deploy-to-Kind template backstage/catalog/templates/deploy-to-kind/ Standalone local deploy
idp:deploy-local action backstage/app/packages/backend/src/modules/idpLocalDeploy.ts Custom scaffolder action
Backstage image backstage/Dockerfile Production image (pre-built bundle)
kube-prometheus-stack values (local) local/observability/prometheus-stack-values.yaml Prometheus + Grafana + AlertManager (nginx, local storage)
kube-prometheus-stack values (AWS) aws/observability/prometheus-stack-values.yaml Prometheus + Grafana + AlertManager (gp3, 3d retention capped by retentionSize: 15GB on a 20Gi volume; no ALB — Prometheus and AlertManager are cluster-internal)
ClusterSecretStore aws/external-secrets/cluster-secret-store.yaml Global ESO → AWS Secrets Manager backend
Per-team SecretStore kubernetes/teams/<name>/secret-store.yaml (scaffold) Namespace-scoped SecretStore; access restricted to /<team>/* in Secrets Manager
Per-team ESO IRSA roles terraform/iam-team-secret-store.tf One IAM role per team; secretsmanager:GetSecretValue on /<team>/* only
Kyverno kyverno namespace Admission controller for team label injection + quota enforcement
Kyverno team policies kubernetes/policies/kyverno/ Mutate: auto-inject idp:team; Validate: require owner+costCenter on Crossplane claims
services-quota kubernetes/namespaces/services-quota.yaml ResourceQuota + LimitRange for services-dev/staging/prod
Grafana per-team folders kubernetes/teams/<name>/grafana-folder.yaml (scaffold) ConfigMap → Grafana sidecar creates team dashboard folder
Grafana sidecar observability/grafana/grafana-helm-values.yaml sidecar.dashboards.enabled=true, searchNamespace: ALL, folderAnnotation: grafana_folder
Tech Insights Exporter observability/tech-insights-exporter/cronjob.yaml Scorecard metrics → Pushgateway (both envs)
DORA exporter (local) local/observability/dora/dora-cronjob.yaml DORA metrics → Pushgateway; team= label via TEAM_MAP or GitHub topic
DORA exporter (AWS) aws/observability/dora/dora-cronjob.yaml DORA metrics → Pushgateway + CloudWatch; TEAM_MAP from Secrets Manager
Template catalog backstage/catalog/all-templates.yaml Single Location file for the 63 AWS-shared templates (tagged v1 + blessed/advanced); deploy-to-kind is local-only, giving 64 in the local catalog
Permission framework backstage/app-config.aws.yaml permission.enabled: true; blocks unauthenticated scaffolder access
hello-service services/hello-service/ Reference Go implementation
material-table patch backstage/app/.yarn/patches/ Fixes uuid v10 compatibility crash in catalog, api-docs, and techdocs pages

Backstage Custom Action: idp:deploy-local

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
Backstage UI
  → "Deploy Service to local Kind cluster" template
    → idp:deploy-local action
      → kubectl cluster-info  (verify Kind reachable)
      → helm upgrade --install <name> /helm/service-template \
            --set image.repository=localhost:5003/<name> \
            --set image.tag=<tag> \
            --set ingress.className=nginx \
            --set ingress.hosts[0].host=<name>.idp.local \
            ...
      → kubectl get pods  (log status)
      → output: serviceUrl = http://<name>.idp.local

Kubeconfig bridge (macOS + Docker Desktop):

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
Host ~/.kube/config         docker-compose mounts as read-only
  (server: 127.0.0.1:PORT)  ───────────────────────────────────>  /home/node/.kube/config
                                                                          │
                                                          startup sed rewrites:
                                                          127.0.0.1 → host.docker.internal
                                                          strips certificate-authority-data
                                                          adds insecure-skip-tls-verify: true
                                                                          │
                                                                          ▼
                                                                   /tmp/kubeconfig
                                                          KUBECONFIG=/tmp/kubeconfig (env)

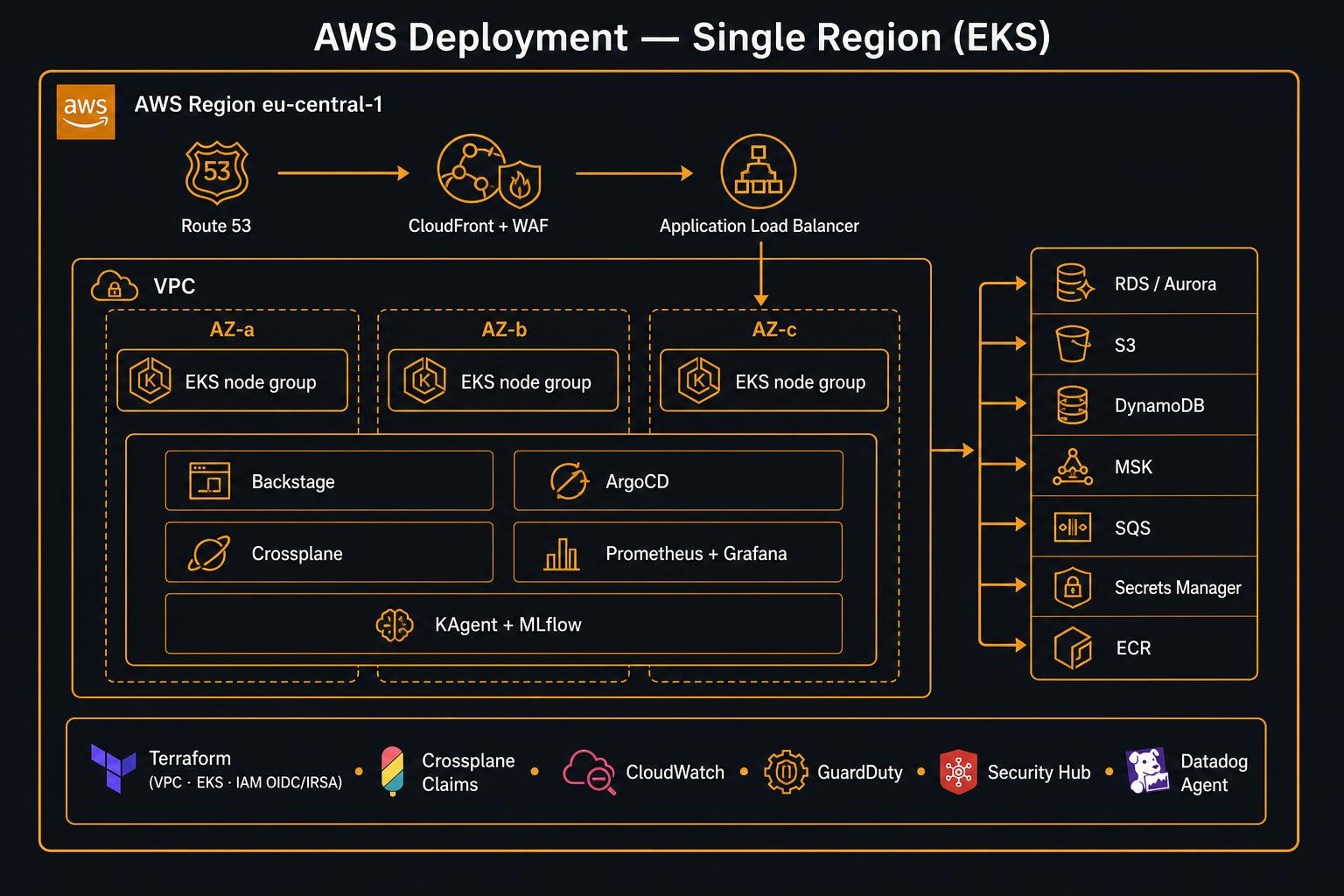

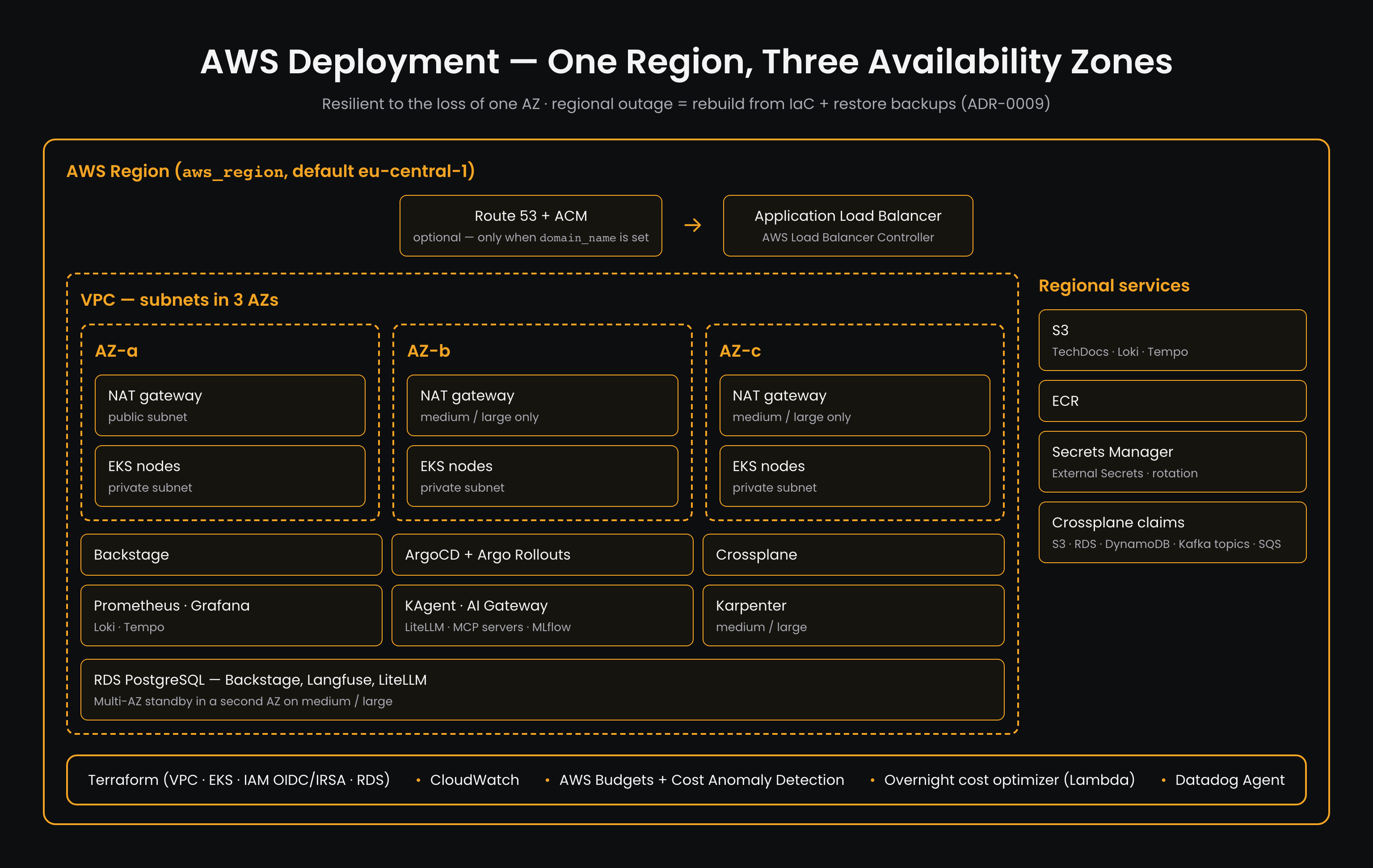

AWS Architecture

AWS Architecture

Seven layers — GitHub/ArgoCD (GitOps + OIDC) → AWS Account boundary (eu-central-1) → ALB edge → Amazon VPC / EKS 1.32 (Backstage, ArgoCD, Prometheus, Grafana, KAgent, MLflow, MCP servers, Crossplane controllers, EC2 worker nodes) → Data & Registry (ECR, RDS PostgreSQL, S3, DynamoDB, MSK Kafka, SQS) → Platform Services (Secrets Manager, IAM/OIDC, CloudWatch) → IaC (Terraform foundation + Crossplane per-service via Claims).

Network Topology

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

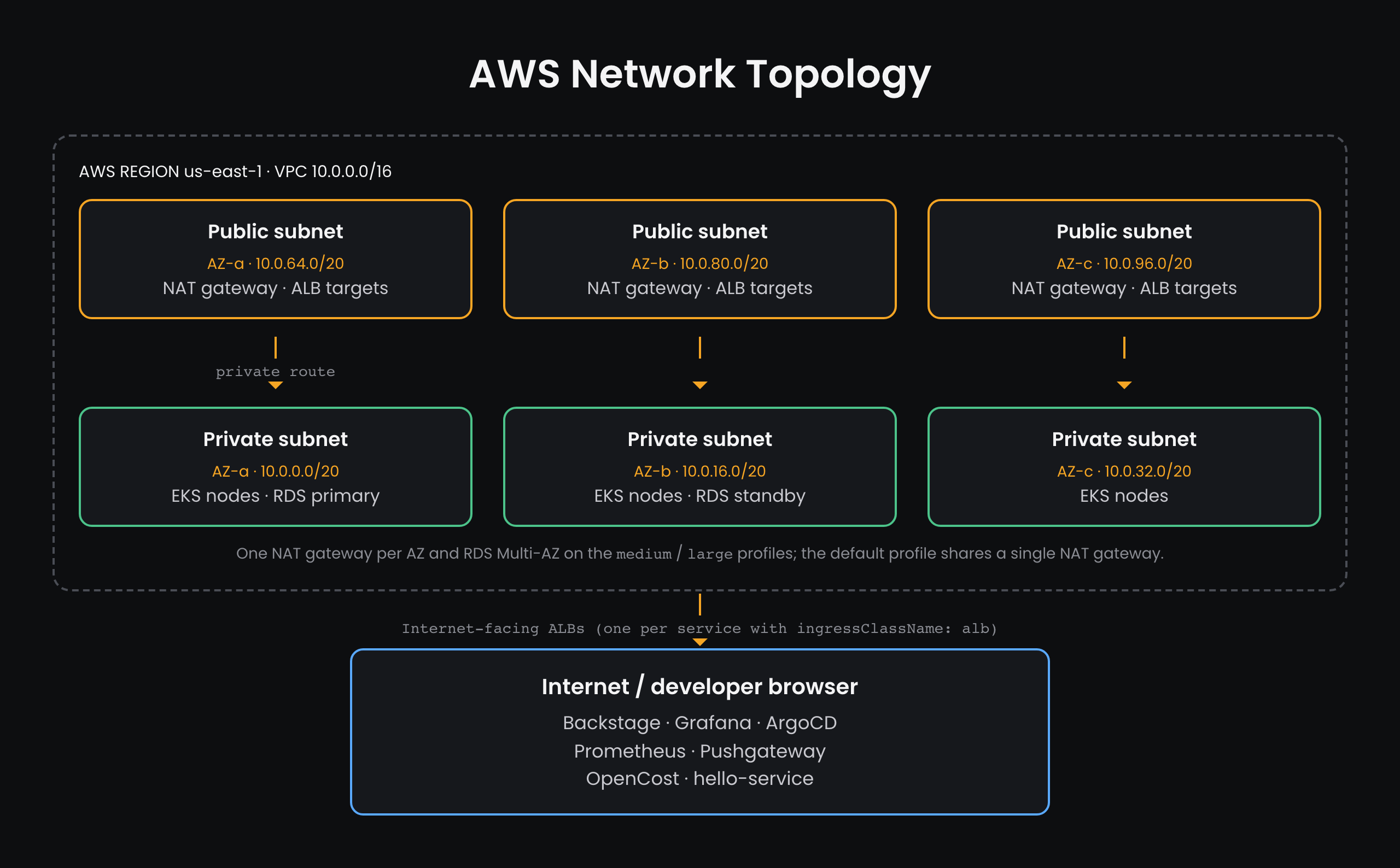

AWS Region: us-east-1
┌─────────────────────────────────────────────────────────────────────────────┐
│  VPC  10.0.0.0/16                                                           │
│                                                                             │
│  ┌──────────────────────┐  ┌──────────────────────┐  ┌───────────────────┐ │
│  │  Public Subnet       │  │  Public Subnet       │  │  Public Subnet    │ │
│  │  10.0.64.0/20 (AZ-a) │  │  10.0.80.0/20 (AZ-b) │  │  10.0.96.0/20(AZ-c)│ │
│  │  NAT Gateway         │  │  NAT Gateway         │  │  NAT Gateway      │ │
│  │  ALB targets         │  │  ALB targets         │  │  ALB targets      │ │
│  └──────────┬───────────┘  └──────────┬───────────┘  └────────┬──────────┘ │
│             │ private route            │                       │            │
│  ┌──────────▼───────────┐  ┌──────────▼───────────┐  ┌────────▼──────────┐ │
│  │  Private Subnet      │  │  Private Subnet      │  │  Private Subnet   │ │
│  │  10.0.0.0/20  (AZ-a) │  │  10.0.16.0/20 (AZ-b) │  │  10.0.32.0/20(AZ-c)│ │
│  │  EKS nodes           │  │  EKS nodes           │  │  EKS nodes        │ │
│  │  RDS (primary)       │  │  RDS (standby)       │  │                   │ │
│  └──────────────────────┘  └──────────────────────┘  └───────────────────┘ │
└─────────────────────────────────────────────────────────────────────────────┘
          │
          │  Internet-facing ALBs (one per service with ingressClassName: alb)
          ▼
┌─────────────────────────────────┐
│  Internet / Developer Browser   │
│  Backstage  · Grafana · ArgoCD  │
│  Prometheus · Pushgateway       │
│  OpenCost   · hello-service     │
└─────────────────────────────────┘

AWS Services Used

Service Config Purpose
EKS idp-mvp, t3.medium nodes, 2–5 in autoscaling group Kubernetes control plane + worker nodes
RDS PostgreSQL 17, idp-mvp-backstage, private subnet Backstage plugin databases
ECR idp-mvp/backstage, idp-mvp/hello-service, etc. Container image registry
Secrets Manager idp-mvp/* namespace Runtime credentials (see secrets flow below)
S3 idp-mvp-terraform-state-* Terraform remote state
IAM / OIDC OIDC provider for EKS, IRSA module Keyless pod-level AWS access
AWS Load Balancer Controller Installed via Helm in kube-system Creates ALBs from ingressClassName: alb resources
EBS CSI Driver Managed addon Persistent volumes (gp3) for Prometheus, Grafana, MLflow
CloudWatch IDP/DORA namespace Secondary DORA metrics destination (alerting)

EKS Namespace Map

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
EKS Cluster: idp-mvp (us-east-1)
│
├── kube-system
│   ├── aws-load-balancer-controller  (creates ALBs from Ingress resources)
│   ├── ebs-csi-controller            (persistent volumes)
│   └── coredns, kube-proxy
│
├── backstage                         (developer portal)
│   ├── deployment/backstage          (official Backstage image, 1 replica)
│   ├── externalsecret/backstage-secrets → syncs idp-mvp/backstage from Secrets Manager
│   └── service/backstage             (ALB ingress)
│
├── kyverno                           (admission controller)
│   ├── kyverno-admission-controller  (mutate + validate webhooks)
│   ├── ClusterPolicy: crossplane-inject-team-tag   (auto-inject idp:team on Crossplane claims)
│   └── ClusterPolicy: crossplane-require-cost-tags (block claims without owner/costCenter)
│
├── argocd                            (GitOps controller)
│   ├── argocd-server                 (UI + API, ALB ingress)
│   ├── ApplicationSet: idp-services  (auto-discovers services/*/ — legacy flat services)
│   ├── AppProject: team-<name>       (one per team, created by scaffold; scoped to team-<name> ns)
│   ├── ApplicationSet: team-<name>   (auto-discovers teams/<name>/services/*/)
│   └── Application: platform-*      (ArgoCD, OPA, Crossplane, observability)
│
├── monitoring                        (observability stack)
│   ├── prometheus-kube-prometheus-prometheus  (metrics store, no public ALB)
│   ├── prometheus-grafana                     (dashboards, ALB ingress)
│   ├── prometheus-pushgateway                 (push endpoint, no public ALB)
│   ├── cronjob/dora-exporter                  (GitHub → Pushgateway + CloudWatch)
│   └── cronjob/tech-insights-exporter         (scorecard metrics → Pushgateway)
│
├── external-secrets                  (ESO)
│   ├── external-secrets              (ESO controller, created by Helm)
│   └── external-secrets-sa           (SA created by bootstrap.sh, annotated with IRSA)
│
├── services                          (manually deployed services)
│   └── deployment/hello-service      (reference Go service)
│
├── services-dev                      (ArgoCD-managed dev services; ResourceQuota + LimitRange applied)
│   ├── deployment/hello-service-dev  (ArgoCD sync from main branch)
│   ├── deployment/idp-mcp-server     (IDP MCP server — catalog/metrics/scaffold tools)
│   ├── deployment/qa-mcp-server      (QA MCP server)
│   └── deployment/contract-mcp-server (contract testing tools)
│
├── team-<name>                       (one per team; created by Provision Team Namespace scaffold)
│   ├── ResourceQuota / LimitRange    (tier-based; auto-generated by Kyverno team-quota-policy)
│   ├── NetworkPolicy                 (deny-all ingress; allow intra-ns + monitoring + ingress-nginx)
│   ├── RoleBinding: idp-developer    (team members get deploy+observe access)
│   ├── ServiceAccount: deployer      (CI/CD identity for the team)
│   ├── SecretStore: team-<name>-secrets  (scoped to /<name>/* in Secrets Manager)
│   └── ConfigMap: grafana-folder-team-<name>  (→ Grafana sidecar creates team dashboard folder)
│
├── kagent                            (AI agents)
│   ├── deployment/kagent-controller  (KAgent operator)
│   ├── deployment/kagent-ui          (KAgent web UI, ALB ingress)
│   ├── Agent/idp-assistant           (IDP assistant A2A agent)
│   ├── Agent/qa-agent                (QA agent)
│   └── Agent/contract-assistant      (contract testing agent)
│
├── ml-platform                       (MLflow)
│   └── deployment/mlflow             (tracking server, ALB ingress)
│
├── opencost                          (FinOps)
│   └── deployment/opencost           (cost visibility, cluster-internal only)
│
├── crossplane-system                 (Crossplane)
│   ├── crossplane                    (core controller)
│   └── provider-aws-*               (AWS provider — S3, RDS, SQS, MSK, DynamoDB)
│
└── gatekeeper-system                 (OPA/Gatekeeper policy enforcement)
    └── gatekeeper-controller-manager

Secrets Flow (AWS Secrets Manager → Pods)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Terraform
  └── creates placeholders in AWS Secrets Manager
        idp-mvp/backstage   → GITHUB_TOKEN, AUTH_GITHUB_CLIENT_ID/SECRET,
                               K8S_SERVICE_ACCOUNT_TOKEN, POSTGRES_*, AUTH_SESSION_SECRET,
                               PAGERDUTY_TOKEN, JIRA_TOKEN, JIRA_URL,
                               DD_API_KEY, DD_APP_KEY
        idp-mvp/dora-exporter → GITHUB_TOKEN
        idp-mvp/kagent      → ANTHROPIC_API_KEY
        idp-mvp/slack-webhook → SLACK_WEBHOOK_URL

bootstrap.sh
  └── injects real values (reads from local/.env and cluster)
        K8S_SERVICE_ACCOUNT_TOKEN ← kubectl get secret backstage-sa-token
        BACKSTAGE_CATALOG_TOKEN   ← generated random value
        GITHUB_TOKEN              ← read from env
        GITHUB_APP_ID/CLIENT_ID/CLIENT_SECRET/PRIVATE_KEY/WEBHOOK_SECRET ← GitHub App (optional; replaces PAT)
        TEAM_MAP                  ← optional JSON map of repo→team for DORA metrics

External Secrets Operator (ESO)
  ├── ClusterSecretStore: aws-secretsmanager
  │     auth: IRSA via external-secrets-sa (annotated with idp-mvp-backstage IAM role)
  │     → assumes role → calls secretsmanager:GetSecretValue
  │
  └── ExternalSecret (per namespace)
        backstage-secrets  (namespace: backstage)  → idp-mvp/backstage
        dora-exporter-secret (namespace: monitoring) → idp-mvp/dora-exporter
        kagent-secret (namespace: kagent)           → idp-mvp/kagent
              │
              ▼ syncs every 1h (or on force-sync annotation)
        Kubernetes Secret → mounted as env vars into pods

IRSA Roles (IAM Roles for Service Accounts)

Role name Trusted SA Permissions
idp-mvp-backstage backstage:backstage-sa + external-secrets:external-secrets-sa secretsmanager:GetSecretValue on idp-mvp/*
idp-mvp-dora-exporter monitoring:dora-exporter-sa cloudwatch:PutMetricData on IDP/DORA
idp-mvp-grafana monitoring:grafana cloudwatch:ListMetrics, cloudwatch:GetMetricData (read-only)
idp-mvp-db-init services:db-init-sa secretsmanager:GetSecretValue on idp-mvp/backstage
idp-mvp-crossplane crossplane-system:provider-aws-* PowerUser + IAM (for provisioning per-service resources)
ebs-csi-driver kube-system:ebs-csi-controller-sa ec2:*Volume*, ec2:*Snapshot*
github-actions GitHub OIDC (org-level) PowerUser + IAM + S3 tfstate (for CI/CD)
team-<name>-eso team-<name>:team-<name>-eso-sa secretsmanager:GetSecretValue on /<name>/* only (one role per team; provisioned by terraform/iam-team-secret-store.tf)

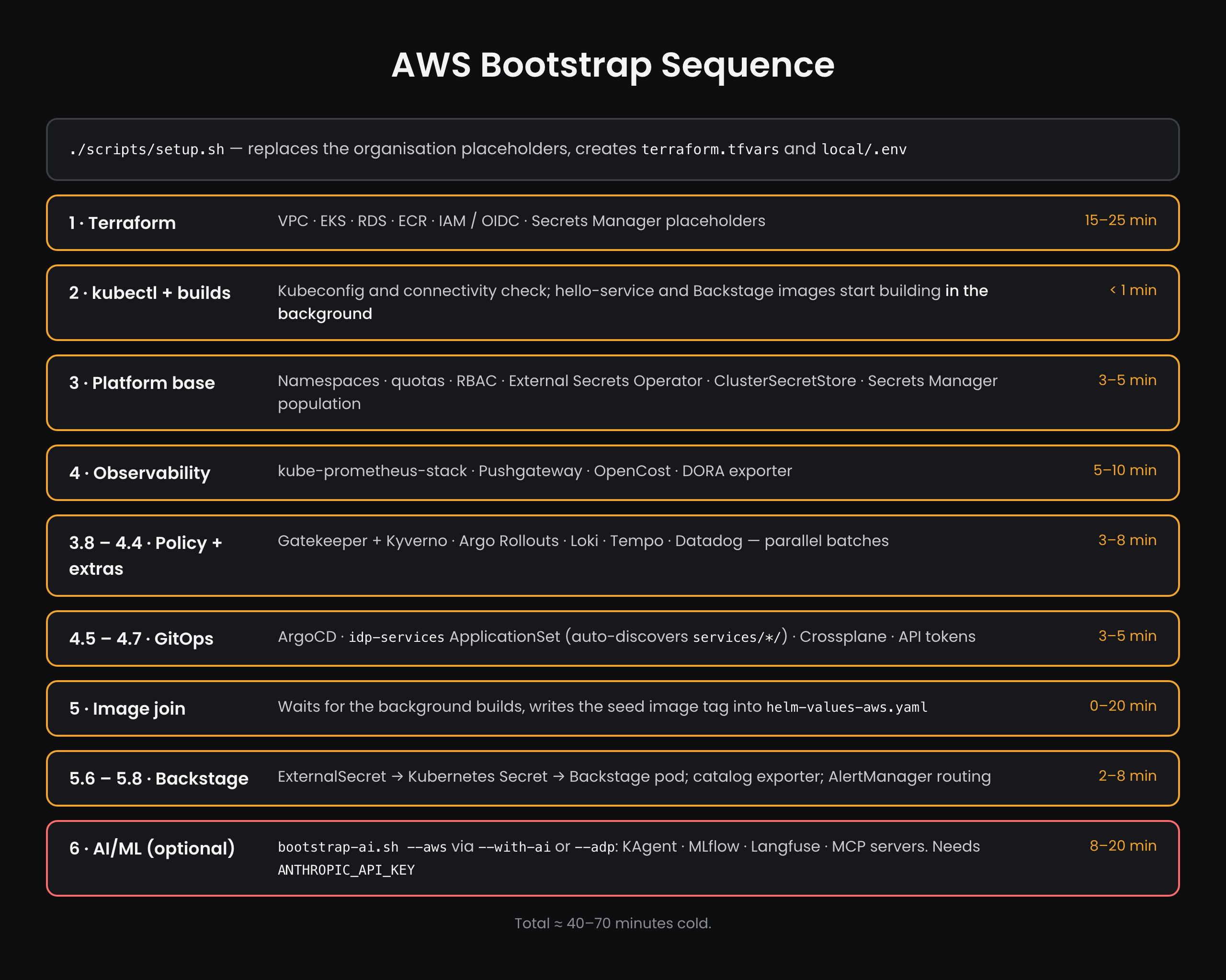

Bootstrap Sequence

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
./scripts/setup.sh
  └── replaces moatazeldebsy placeholders, creates terraform.tfvars, local/.env

./scripts/bootstrap.sh
  ├── Phase 1 — Terraform (~20 min)
  │     VPC · EKS · RDS · ECR · IAM/OIDC · Secrets Manager (placeholders)
  │
  ├── Phase 2 — Platform base (~5 min)
  │     Namespaces · `services-quota.yaml` (ResourceQuota+LimitRange for services-dev/staging/prod)
  │     RBAC · AWS Load Balancer Controller
  │     External Secrets Operator · create external-secrets-sa · ClusterSecretStore
  │
  ├── Phase 3 — GitOps (~8 min)
  │     ArgoCD · OPA/Gatekeeper · Crossplane
  │     idp-services ApplicationSet (auto-discovers services/*/)
  │     Kyverno 3.2.7 + team policies (crossplane-team-label-policy, team-quota-policy)
  │     Secrets Manager updated: GITHUB_APP_* + TEAM_MAP (if env vars set)
  │
  ├── Phase 4 — Observability (~10 min)
  │     kube-prometheus-stack (Prometheus + Grafana + AlertManager)
  │     Pushgateway (cluster-internal)
  │     OpenCost (cluster-internal)
  │     DORA exporter CronJob
  │
  ├── Phase 5 — hello-service (~5 min)
  │     docker buildx build --platform linux/amd64 → ECR push
  │     ArgoCD syncs hello-service-dev
  │
  └── Phase 6 — Backstage (~5 min)
        Build + push Backstage image to ECR
        kubectl apply -f kubernetes/backstage/rbac.yaml  (shared RBAC)
        kubectl apply -f aws/backstage/external-secret.yaml
        kubectl apply -f aws/backstage/deployment.yaml
        ExternalSecret syncs → K8s Secret → Backstage pod reads credentials

./scripts/bootstrap-ai.sh  (optional, requires ANTHROPIC_API_KEY)
  └── KAgent · idp-assistant · MLflow · MCP servers (idp, qa, contract)

ALB Ingress Map

All ingresses use ingressClassName: alb with alb.ingress.kubernetes.io/scheme: internet-facing and target-type: ip. Get the hostname for any service:

1
kubectl get ingress -A --no-headers | awk '{printf "%-30s %-20s %s\n", $1, $2, $4}'
Namespace Ingress name Backend service:port
backstage backstage backstage:7007
argocd argocd-server argocd-server:80
monitoring (grafana) prometheus-grafana:80
services-dev (hello-service) hello-service-dev:80
kagent kagent-ui kagent-ui:8080
ml-platform mlflow mlflow:5000
