Crossplane¶

Crossplane provisions per-service AWS resources (RDS, S3, Kafka topics, DynamoDB tables, SQS queues) as Kubernetes Claims, reconciled in-cluster by ArgoCD. It coexists with Terraform — see crossplane-vs-terraform.md for the boundary.

Why both¶

Terraform stays the right tool for the foundation: VPC, EKS cluster, IAM/OIDC, ECR registries, anything that must exist before Kubernetes is running. One-shot, platform-team-owned, applied from outside the cluster.

Crossplane is the right tool for day-2, app-team-requested infra. Claims live in Git alongside the service that consumes them, ArgoCD syncs on merge, Crossplane reconciles continuously, and drift is corrected without a human running terraform apply. No manual step between "PR merged" and "resource exists".

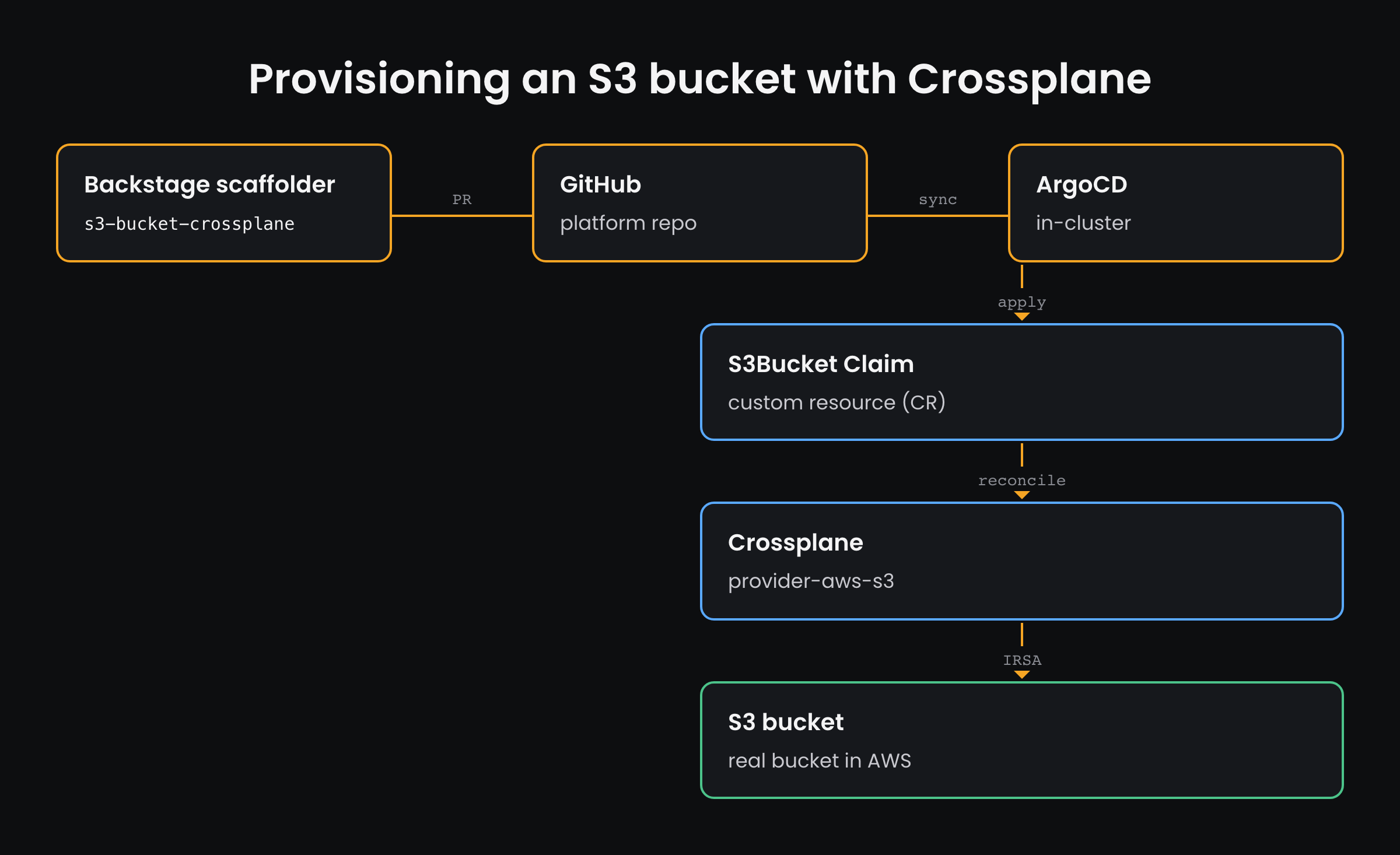

End-to-end example: provisioning an S3 bucket¶

┌──────────────┐    PR      ┌────────────┐   sync   ┌──────────────┐
│  Backstage   │──────────▶ │   GitHub   │ ───────▶ │   ArgoCD     │
│  scaffolder  │            │ (platform  │          │ (in-cluster) │
│ s3-bucket-   │            │   repo)    │          │              │
│ crossplane   │            └────────────┘          └──────┬───────┘
└──────────────┘                                           │ apply
                                                           ▼
                                                  ┌─────────────────┐
                                                  │  S3Bucket Claim │
                                                  │      (CR)       │
                                                  └────────┬────────┘
                                                           │ reconcile
                                                           ▼
                                                  ┌─────────────────┐
                                                  │  Crossplane +   │
                                                  │ provider-aws-s3 │
                                                  └────────┬────────┘
                                                           │ IRSA
                                                           ▼
                                                  ┌─────────────────┐
                                                  │  Real S3 bucket │
                                                  │      in AWS     │
                                                  └─────────────────┘

Engineer opens the Backstage portal, picks the S3 Object Bucket (Crossplane) template, fills in bucketName, ownerService, region, versioning, cost center.
Backstage opens a PR adding services/<ownerService>/claims/<bucketName>.yaml (an S3Bucket Claim) and a catalog-info-<bucketName>.yaml that registers the resource in the Backstage Service Catalog.
Reviewer merges. The idp-services ApplicationSet in aws/argocd/app-of-apps.yaml already watches services/*/, so ArgoCD syncs the Claim within ~60 s.
The XRD xs3buckets.idp.platform matches the Claim; the Composition xs3bucket.aws creates a Bucket, BucketServerSideEncryptionConfig, BucketPublicAccessBlock, and BucketVersioning — all tagged idp:provisioner=crossplane, idp:owner=<team>, idp:cost-center=….
provider-aws-s3 assumes the IRSA role (terraform/iam-crossplane.tf, least-privilege inline policy scoped to arn:aws:s3:::idp-*) and creates the bucket in AWS.
Verify: kubectl get s3bucket <bucketName> -n services-dev → READY=True within ~60 s of merge.

Resources covered¶

Per-service resources (team self-service)¶

Resource	XRD kind	Claim kind	Template	`idp:team` tag
S3 bucket	`XS3Bucket`	`S3Bucket`	`s3-bucket-crossplane`	AWS resource tag
RDS Postgres	`XRDSInstance`	`RDSInstance`	`rds-database-crossplane`	AWS resource tag
MSK topic	`XKafkaTopic`	`KafkaTopic`	`kafka-topic-crossplane`	K8s label (MSK topics don't support AWS tags)
DynamoDB table	`XDynamoTable`	`DynamoTable`	`dynamodb-table-crossplane`	AWS resource tag
SQS queue	`XSQSQueue`	`SQSQueue`	`sqs-queue-crossplane`	AWS resource tag

Multi-region / platform resources (V2 — platform team)¶

These XRDs are applied by the platform team (not individual service teams) and model account-level or global AWS resources introduced in the feat/v2-multi-region branch.

Resource	XRD kind	Claim kind	Key fields	Notes
ECR cross-region replication	`XECRReplicationRule`	`ECRReplicationRule`	`sourceRegion`, `destinationRegion`, `repositoryFilter`	Account-level; one claim per account
Route 53 health check + failover record	`XRoute53HealthCheck`	`Route53HealthCheck`	`fqdn`, `healthCheckType`, `failureThreshold`, `hostedZoneId` (opt)	DNS failover record created only when `hostedZoneId` is set
Global Accelerator endpoint group	`XGlobalAcceleratorEndpointGroup`	`GlobalAcceleratorEndpointGroup`	`listenerArn`, `endpointRegion`, `endpointArn`, `trafficDialPercentage`	One claim per region; set `trafficDialPercentage: 0` for warm standby

All eight Compositions live in aws/crossplane/compositions/. Adding a new resource type is a matter of dropping in another xrd.yaml + composition.yaml pair plus a matching scaffolder template.

Team label injection (Kyverno)¶

A pair of Kyverno policies in kubernetes/policies/kyverno/crossplane-team-label-policy.yaml enforce cost-attribution discipline on all Crossplane claims:

Mutate — when a Claim is created in a team-* namespace, Kyverno automatically adds spec.parameters.team: <teamName> (derived by stripping the team- prefix from the namespace). Teams never need to set this field manually.

Validate (Enforce) — rejects any Claim (in any namespace) that is missing spec.parameters.owner or spec.parameters.costCenter. This prevents untagged AWS resources that OpenCost cannot attribute.

# Verify the policies are active
kubectl get clusterpolicy crossplane-inject-team-tag crossplane-require-cost-tags

# See team tag on a provisioned S3 bucket
aws s3api get-bucket-tagging --bucket my-bucket | jq '.TagSet[] | select(.Key == "idp:team")'

Kyverno is installed by bootstrap-local.sh (Step 9b) and bootstrap.sh (Phase 3.8). If you see Kyverno admission errors, verify the kyverno-admission-controller deployment is Available in the kyverno namespace.

IAM: least-privilege provider roles¶

The Crossplane IRSA role (terraform/iam-crossplane.tf) uses one inline policy per resource family, each scoped to the minimum actions the Composition actually performs and restricted to idp-* ARN prefixes:

Policy	Key actions	ARN scope
`crossplane_s3`	CreateBucket, PutEncryptionConfiguration, PutBucketVersioning, …	`arn:aws:s3:::idp-*`
`crossplane_rds`	CreateDBInstance, DeleteDBInstance, CreateDBSubnetGroup, …	`arn:aws:rds:::db:idp-*`
`crossplane_kafka`	CreateTopic, DeleteTopic, DescribeCluster, …	`arn:aws:kafka:::cluster/idp-/`
`crossplane_dynamodb`	CreateTable, DeleteTable, UpdateContinuousBackups, …	`arn:aws:dynamodb:::table/idp-*`
`crossplane_sqs`	CreateQueue, DeleteQueue, SetQueueAttributes, …	`arn:aws:sqs:::idp-*`
`crossplane_tagging`	tag:TagResources, tag:GetResources, …	`*` (required by tagging API)

Why idp-* scope? XRD pattern fields enforce the same prefix on resource names, so a Claim can never request a name that falls outside the policy's resource scope.

Safety defaults in all Compositions¶

Behaviour	Value	Rationale
`deletionPolicy`	`Orphan`	Deleting a Claim does not delete the AWS resource. Prevents data loss from accidental `kubectl delete`. Manual decommission via `cleanup.sh` or AWS console required.
`skipFinalSnapshot` (RDS)	`false`	A final DB snapshot is taken before the instance is deleted.
`backupRetentionDays` (RDS)	`30` (configurable, 1–35)	Automated RDS backups retained 30 days by default.
`storageEncrypted` (RDS)	`true`	Always encrypted at rest.
`publiclyAccessible` (RDS)	`false`	VPC-only; never exposed to the internet.
`sqsManagedSseEnabled` (SQS)	`true`	Server-side encryption always on.
`pointInTimeRecovery` (DynamoDB)	`true`	PITR enabled by default.

Scaffolder templates¶

All five Crossplane templates follow the same flow:

Fill the form → Backstage generates a PR with two files:
- services/<ownerService>/claims/<name>.yaml — the Crossplane Claim
- services/<ownerService>/claims/catalog-info-<name>.yaml — Backstage Resource entity
Merge → ArgoCD syncs → Crossplane provisions → resource appears in catalog

DynamoDB composite keys: The template exposes optional rangeKey and rangeKeyType fields. Leave them blank for hash-only tables. When set, the Composition patches both attribute[0] (hash key) and attribute[1] (range key) definitions — both are required by the DynamoDB API.

Kafka clusterArn: The template validates the ARN format (^arn:aws:kafka:) and shows an in-form help note. To find your MSK cluster ARN:

aws kafka list-clusters --query "ClusterInfoList[*].ClusterArn" --output text

Bootstrap¶

# Phase 1 — Terraform provisions the IRSA role (validates ARN format before applying)
cd terraform && terraform apply
terraform output crossplane_aws_role_arn   # confirm ARN looks valid

# Phase 2 — bootstrap.sh substitutes the ARN and registers the ArgoCD stack
# (also validates the ARN starts with arn:aws:iam:: before substitution)
./scripts/bootstrap.sh

The deployment-runtime-config.yaml IRSA substitution is validated at bootstrap time — if terraform output returns a non-ARN value, bootstrap fails with a clear error rather than silently starting providers with a broken annotation.

Verifying¶

# All five providers Healthy
kubectl get providers.pkg.crossplane.io

# XRDs established (5 per-service + 3 multi-region = 8 total)
kubectl get xrds

# ProviderConfig default present
kubectl get providerconfigs.aws.upbound.io

# Provider Pod has the IRSA role annotation
kubectl get pods -n crossplane-system -l pkg.crossplane.io/provider \
  -o jsonpath='{.items[*].spec.serviceAccountName}'

Drift correction¶

Crossplane reconciles continuously. To prove it:

# Delete the bucket directly in AWS (or via kubectl)
aws s3 rb s3://<bucketName> --force
# Within ~30s, Crossplane recreates it (because deletionPolicy: Orphan
# means Crossplane still owns the desired state even if the Claim persists)
kubectl get s3bucket <bucketName> -n services-dev -w

Decommissioning a resource¶

Because deletionPolicy: Orphan is set, deleting the Claim does not delete the AWS resource. To fully decommission:

# 1. Delete the Claim (removes Crossplane tracking only)
kubectl delete s3bucket <bucketName> -n services-dev

# 2. Manually delete the AWS resource
aws s3 rb s3://<bucketName> --force        # S3
aws rds delete-db-instance --db-instance-identifier <id> --skip-final-snapshot  # RDS
aws dynamodb delete-table --table-name <name>   # DynamoDB
aws sqs delete-queue --queue-url <url>           # SQS

# 3. Remove the claim YAML from the repo to prevent ArgoCD re-creating it
git rm services/<ownerService>/claims/<name>.yaml
git rm services/<ownerService>/claims/catalog-info-<name>.yaml
git commit -m "chore: decommission <name>"

Environment teardown uses cleanup.sh which automates steps 2 for all idp:provisioner=crossplane-tagged resources. See the Deployment Guide for details.

Local development¶

Crossplane runs in EKS only. The local Kind path stays unchanged — Docker- Compose-backed Postgres/Kafka are the substitutes for local dev. Cloud-only resources (real S3, DynamoDB, SQS) are not testable locally; write integration tests that hit AWS or LocalStack in CI instead.
