Contract Testing with MCP

Self-describing, self-testing APIs on the IDP — powered by contract-mcp-server and the contract-assistant KAgent agent.

The Problem

Static OpenAPI specs drift from reality. Manually maintained Pact suites break silently. Most teams only discover API incompatibilities in production, after a consumer has already deployed against a provider that changed an endpoint.

The Solution

Every service exposes its live contract via GET /openapi.json. The contract-mcp-server collects those contracts, generates Pact consumer tests automatically (with realistic schema matchers, not just status codes), detects breaking changes between versions, and validates compatibility across the whole platform. The contract-assistant AI agent wraps all of this as natural-language workflows.

Using Contract Testing from Backstage

Everything below is available directly from the Backstage UI — no CLI, no curl, no local setup required.

1. Chat with the AI Assistant

Open http://backstage.idp.local/ai-assistant and select the contract-assistant agent. Use plain English:

Goal What to type
Onboard a service "Fetch and register the contract for payments-api in services-prod"
Discover all services in a namespace "Discover contracts for all services in services-dev"
Generate Pact consumer tests "Generate Pact tests for checkout-service consuming payments-api v1.2.0"
Check if a consumer is compatible "Is checkout-service compatible with the latest payments-api?"
Get a full compatibility matrix "Show the compatibility report for payments-api"
Detect breaking changes "Did anything break between payments-api v1.0.0 and v2.0.0?"
Inspect a registered contract "Show me the contract for inventory-service"
List all registered services "List all registered contracts"

The agent automatically calls the right underlying tool and returns a human-readable summary. For generate_contract_tests, it returns both the TypeScript test file and the Pact JSON inline — paste them into your repo.

2. Scaffold a Contract Test Project

Open http://backstage.idp.local/create and choose one of two templates:

Contract Testing Suite — for new consumer test projects: 1. Search Contract Testing Suite → click Choose 2. Fill in consumer name, provider name, provider base URL, Pact broker URL 3. Choose new-repository (creates a standalone repo) or add-to-existing (opens a PR against your service repo) 4. Click Create — Backstage scaffolds: - tests/<name>.pact.spec.ts — Pact V3 tests with MatchersV3 matchers - contract/openapi.yaml — editable consumer contract - .github/workflows/contract.yml — CI: run → publish → verify - catalog-info.yaml — registers the test suite in the Backstage catalog

Enable Contract Testing — one-click onboarding for an existing service: 1. Search Enable Contract Testing → click Choose 2. Enter your service name and namespace 3. Click Create — Backstage auto-discovers the service's live /openapi.json, registers it, and wires an ArgoCD hook so every future deploy re-registers automatically

3. View Contract Status in the Catalog

After onboarding, your service's contract status is visible in the Backstage Catalog: - catalog-info.yaml entities of type test-suite link back to their provider - The contract-assistant agent can be asked about any catalog entity by name

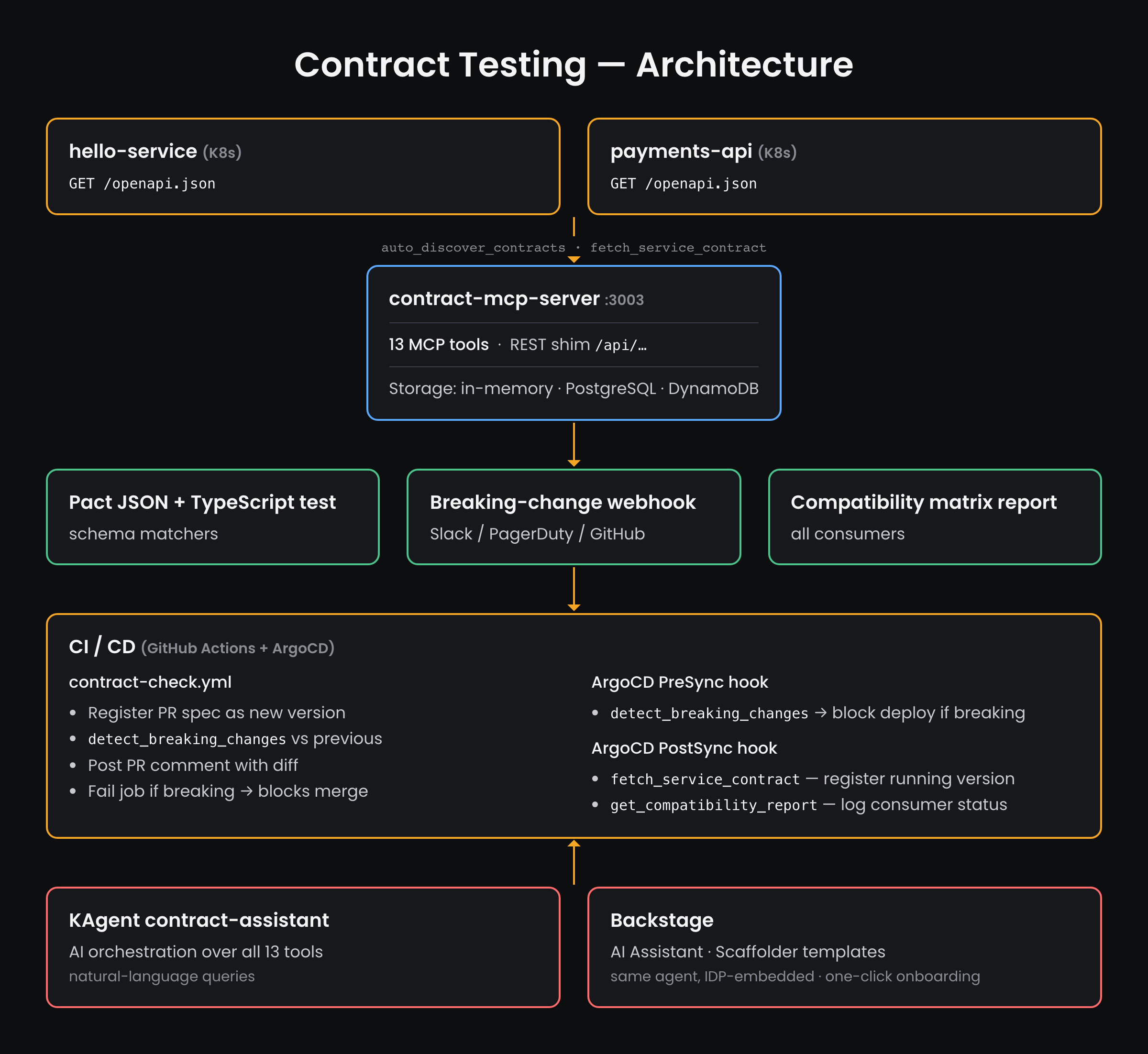

Architecture

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
┌─────────────────────────────────────────────────────────────────────────────────┐
│                              PLATFORM OVERVIEW                                  │
└─────────────────────────────────────────────────────────────────────────────────┘

  ┌──────────────────────────┐    ┌──────────────────────────┐
  │  hello-service (K8s)     │    │  payments-api (K8s)       │
  │  GET /openapi.json  ─────┼─┐  │  GET /openapi.json  ─────┼─┐
  └──────────────────────────┘ │  └──────────────────────────┘ │
                               │                               │
                               └──────────────┬────────────────┘
                                              │ auto_discover_contracts
                                              │ fetch_service_contract
                                              ▼
                          ┌───────────────────────────────────────┐
                          │        contract-mcp-server :3003       │
                          │  ─────────────────────────────────── │
                          │  9 MCP tools  │  REST shim /api/...   │
                          │  ─────────────────────────────────── │
                          │  Storage: in-memory │ PostgreSQL       │
                          │           │ DynamoDB                   │
                          └──────┬────────────────────────────────┘
                                 │
              ┌──────────────────┼──────────────────────────┐
              │                  │                           │
              ▼                  ▼                           ▼
  ┌───────────────────┐  ┌───────────────────┐  ┌───────────────────────┐
  │  Pact JSON +      │  │  Breaking-change   │  │  Compatibility        │
  │  TypeScript test  │  │  Webhook           │  │  matrix report        │
  │  (schema matchers)│  │  (Slack / PD / GH) │  │  (all consumers)      │
  └───────────────────┘  └───────────────────┘  └───────────────────────┘
              │
              ▼
  ┌───────────────────────────────────────────────────────────────────────┐
  │                 CI / CD  (GitHub Actions)                              │
  │                                                                       │
  │  contract-check.yml                                                   │
  │  ├── Register PR spec as new version                                  │
  │  ├── detect_breaking_changes vs previous                              │
  │  ├── Post PR comment with diff                                        │
  │  └── Fail job if breaking → blocks merge                              │
  │                                                                       │
  │  ArgoCD PreSync hook                                                  │
  │  └── detect_breaking_changes → block deploy if breaking               │
  │                                                                       │
  │  ArgoCD PostSync hook                                                 │
  │  ├── fetch_service_contract  (register running version)               │
  │  └── get_compatibility_report (log consumer compat status)           │
  └───────────────────────────────────────────────────────────────────────┘
              ▲
              │
  ┌───────────────────────────────────────┐
  │  KAgent contract-assistant            │  ← natural-language queries
  │  AI orchestration over all 9 tools    │
  └───────────────────────────────────────┘
              ▲
              │
  ┌───────────────────────────────────────┐
  │  Backstage AI Assistant               │  ← same agent, IDP-embedded
  │  Backstage Scaffolder Templates       │  ← one-click onboarding
  └───────────────────────────────────────┘

Components

Component Location Purpose
contract-mcp-server services/contract-mcp-server/ Central contract registry + MCP server
contract-assistant KAgent kubernetes/kagent/contract-agent.yaml AI agent for natural-language workflows
ai-gateway kubernetes/kagent/ai-gateway-toolserver.yaml The single RemoteMCPServer CRD. The contract tools reach agents through the AI Gateway's contract target, configured in kubernetes/ml-platform/ai-gateway.yaml
Backstage template — contract-testing-suite backstage/catalog/templates/contract-testing-suite/ Scaffold a full Pact test project
Backstage template — enable-contract-testing backstage/catalog/templates/enable-contract-testing/ One-click onboarding for existing services
GitHub Actions workflow .github/workflows/contract-check.yml Per-PR breaking change gate
Helm values services/contract-mcp-server/helm-values-*.yaml Kubernetes deployment config

Access Points

Interface URL What you can do
KAgent UI http://kagent.idp.local Chat with contract-assistant
Backstage AI Assistant http://backstage.idp.local/ai-assistant Same agent, inside Backstage
Backstage Templates http://backstage.idp.local/create Scaffold a Pact test project
MCP endpoint http://contract-mcp-server.idp.local/mcp Direct JSON-RPC tool calls
REST API http://contract-mcp-server.idp.local/api Team-friendly HTTP API
Health http://contract-mcp-server.idp.local/healthz Storage type + discovery mode
Metrics http://contract-mcp-server.idp.local/metrics Prometheus counters + histograms

End-to-End Flows

Flow 1 — Service onboards (self-describing)

1
2
3
4
5
6
7
1. Developer adds GET /openapi.json to their service
2. Service deploys to K8s
3. ArgoCD PostSync hook calls:
       fetch_service_contract("my-service", namespace="services-dev")
   → contract-mcp-server probes /openapi.json, registers the spec
4. get_compatibility_report("my-service")
   → logs which registered consumers are still compatible

Flow 2 — PR breaks a consumer (CI gate)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
1. Developer opens PR with a changed openapi.json
2. GitHub Actions (.github/workflows/contract-check.yml):
   a. GET /api/contracts/my-service  → fetch latest registered version
   b. POST /api/contracts/my-service/pr-{PR}-{SHA}  → register PR spec
   c. POST /api/breaking-changes {from_version, to_version}
      → response: { breaking: [{type: "path_removed", ...}] }
   d. if breaking.length > 0:
        post PR comment with diff
        exit 1  → PR cannot merge
3. Developer fixes the spec or deprecates the endpoint gracefully

Flow 3 — Consumer generates their Pact tests

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
1. Provider spec is already registered (hello-service v1.2.0)
2. Consumer team calls generate_contract_tests:
       provider=hello-service, consumer=frontend-app
   → Returns:
       pactJson:  interactions with real request/response bodies
       testCode:  TypeScript using @pact-foundation/pact MatchersV3
                  like(), integer(), decimal(), regex(), eachLike()
3. Consumer saves pactJson → ./pacts/frontend-app-hello-service.json
4. Consumer saves testCode → ./tests/frontend-app-hello-service.pact.spec.ts
5. npm test  → Pact runs, publishes to Pact broker

Flow 4 — AI agent workflow (natural language)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
User:  "Discover contracts for all services in services-dev"
Agent: calls auto_discover_contracts(namespace="services-dev")
     → scans K8s services, probes /openapi.json, registers all found
     → reports: 7 discovered, 2 no_spec, 0 errors

User:  "Generate Pact tests for hello-service consumed by mobile-bff"
Agent: calls get_contract("hello-service")
     → fetches spec with schemas (parameters, requestBody, responses)
       calls generate_contract_tests("hello-service", "mobile-bff")
     → returns testCode with MatchersV3 matchers + pactJson

User:  "Are there breaking changes between v1.0.0 and v2.0.0?"
Agent: calls detect_breaking_changes("my-service", "1.0.0", "2.0.0")
     → returns: [{ type: "path_removed", path: "/v1/bulk" }]

Making a Service Self-Describing

Add GET /openapi.json to your service. The response must be a valid OpenAPI 3.x document.

Go (reference: hello-service)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
mux.HandleFunc("/openapi.json", func(w http.ResponseWriter, r *http.Request) {
    spec := map[string]any{
        "openapi": "3.0.3",
        "info":    map[string]any{"title": "My Service", "version": version},
        "paths": map[string]any{
            "/healthz": map[string]any{
                "get": map[string]any{
                    "summary":   "Health check",
                    "responses": map[string]any{"200": map[string]any{"description": "OK"}},
                },
            },
            "/api/v1/users": map[string]any{
                "post": map[string]any{
                    "summary": "Create user",
                    "requestBody": map[string]any{
                        "required": true,
                        "content": map[string]any{
                            "application/json": map[string]any{
                                "schema": map[string]any{
                                    "type":     "object",
                                    "required": []string{"name", "email"},
                                    "properties": map[string]any{
                                        "name":  map[string]any{"type": "string"},
                                        "email": map[string]any{"type": "string", "format": "email"},
                                    },
                                },
                            },
                        },
                    },
                    "responses": map[string]any{
                        "201": map[string]any{
                            "content": map[string]any{
                                "application/json": map[string]any{
                                    "schema": map[string]any{
                                        "type": "object",
                                        "properties": map[string]any{
                                            "id":   map[string]any{"type": "string", "format": "uuid"},
                                            "name": map[string]any{"type": "string"},
                                        },
                                    },
                                },
                            },
                        },
                    },
                },
            },
        },
    }
    w.Header().Set("Content-Type", "application/json")
    json.NewEncoder(w).Encode(spec)
})

Node.js / Express

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
app.get('/openapi.json', (_req, res) => {
  res.json({
    openapi: '3.0.3',
    info: { title: 'My Service', version: process.env.APP_VERSION ?? 'dev' },
    paths: {
      '/healthz': {
        get: { summary: 'Health check', responses: { '200': { description: 'OK' } } },
      },
      '/api/v1/orders': {
        post: {
          summary: 'Create order',
          requestBody: {
            required: true,
            content: {
              'application/json': {
                schema: {
                  type: 'object',
                  required: ['userId', 'items'],
                  properties: {
                    userId: { type: 'string', format: 'uuid' },
                    items: { type: 'array', items: { type: 'string' } },
                  },
                },
              },
            },
          },
          responses: {
            '201': {
              content: {
                'application/json': {
                  schema: {
                    type: 'object',
                    properties: {
                      orderId: { type: 'string', format: 'uuid' },
                      status:  { type: 'string', enum: ['pending', 'confirmed'] },
                    },
                  },
                },
              },
            },
          },
        },
      },
    },
  });
});

The richer your schemas (requestBody, response schemas, required fields, format, enum), the more useful the generated Pact tests will be. The generator extracts these to produce like(), integer(), regex(), and eachLike() matchers automatically.

Generated Pact Tests — What They Look Like

Given a provider spec with a POST /pets endpoint:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
import { PactV3, MatchersV3 } from '@pact-foundation/pact';
import * as path from 'path';

const { like, eachLike, regex, integer, decimal } = MatchersV3;

const provider = new PactV3({
  consumer: 'frontend-app',
  provider: 'pet-store',
  dir: path.resolve(process.cwd(), 'pacts'),
});

describe('frontend-app → pet-store contract', () => {

  it('Create pet', async () => {
    await provider
      .given('pet-store is available')
      .uponReceiving('a request to POST /pets')
      .withRequest({
        method: 'POST',
        path: '/pets',
        headers: { 'Content-Type': 'application/json' },
        body: like({ name: like('string'), tag: like('string') }),
      })
      .willRespondWith({
        status: 201,
        headers: { 'Content-Type': 'application/json' },
        body: like({
          id: regex('550e8400-e29b-41d4-a716-446655440000', /^[0-9a-f]{8}-[0-9a-f]{4}-[0-9a-f]{4}-[0-9a-f]{4}-[0-9a-f]{12}$/i),
          name: like('string'),
        }),
      })
      .executeTest(async (mockServer) => {
        const response = await fetch(`${mockServer.url}/pets`, {
          method: 'POST',
          headers: { 'Content-Type': 'application/json' },
          body: JSON.stringify({ name: 'string', tag: 'string' }),
        });
        const body = await response.json() as Record<string, unknown>;
        expect(response.status).toBe(201);
        expect(body.id).toBeDefined();
        expect(body.name).toBeDefined();
      });
  });

});

The test code is a production-ready starting point. You should: - Replace like('string') placeholders with realistic domain values - Add provider state setup if your provider needs seeded data - Publish the resulting ./pacts/ directory to your Pact broker

MCP Tool Reference

All tools are callable via POST /mcp (JSON-RPC 2.0, Accept: application/json, text/event-stream).

fetch_service_contract

Pull /openapi.json from a running service and auto-register it as a contract.

1
2
3
4
5
6
7
curl -s http://contract-mcp-server.idp.local/mcp \
  -H "Content-Type: application/json" \
  -H "Accept: application/json, text/event-stream" \
  -d '{"jsonrpc":"2.0","id":1,"method":"tools/call","params":{
    "name":"fetch_service_contract",
    "arguments":{"service_name":"hello-service","namespace":"services-dev","port":80}
  }}' | grep '^data:' | sed 's/^data: //'

Response includes: paths[], schemas{} (per-operation parameters + requestBody + responses + examples), source, version, title.

auto_discover_contracts

Scan every service in a namespace and register all that expose /openapi.json.

1
2
3
4
5
6
7
curl -s http://contract-mcp-server.idp.local/mcp \
  -H "Content-Type: application/json" \
  -H "Accept: application/json, text/event-stream" \
  -d '{"jsonrpc":"2.0","id":1,"method":"tools/call","params":{
    "name":"auto_discover_contracts",
    "arguments":{"namespace":"services-dev","port":80}
  }}' | grep '^data:' | sed 's/^data: //'

Response: { scanned, discovered, skipped, errors, services: [{serviceName, status, paths}] }

register_contract

Manually push an OpenAPI spec (JSON or YAML string).

1
2
3
4
5
6
7
8
SPEC=$(cat openapi.json | jq -Rs .)
curl -s http://contract-mcp-server.idp.local/mcp \
  -H "Content-Type: application/json" \
  -H "Accept: application/json, text/event-stream" \
  -d "{\"jsonrpc\":\"2.0\",\"id\":1,\"method\":\"tools/call\",\"params\":{
    \"name\":\"register_contract\",
    \"arguments\":{\"service_name\":\"my-service\",\"version\":\"2.0.0\",\"openapi_spec\":${SPEC}}
  }}" | grep '^data:' | sed 's/^data: //'

Fires the breaking-change webhook automatically if a previous version exists and breaking changes are detected.

get_contract

Retrieve a stored contract. Returns the full spec plus a schemas field with per-operation context (parameters, requestBody, response examples) for AI agent consumption.

1
2
3
4
5
6
7
curl -s http://contract-mcp-server.idp.local/mcp \
  -H "Content-Type: application/json" \
  -H "Accept: application/json, text/event-stream" \
  -d '{"jsonrpc":"2.0","id":1,"method":"tools/call","params":{
    "name":"get_contract",
    "arguments":{"service_name":"hello-service"}
  }}' | grep '^data:' | sed 's/^data: //'

Response shape:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
{
  "serviceName": "hello-service",
  "version": "1.2.0",
  "paths": ["/healthz", "/api/v1/users"],
  "schemas": {
    "/api/v1/users": {
      "post": {
        "summary": "Create user",
        "parameters": [],
        "requestBody": {
          "required": true,
          "contentType": "application/json",
          "properties": ["name", "email"],
          "required_fields": ["name", "email"],
          "example": { "name": "string", "email": "user@example.com" }
        },
        "responses": {
          "201": {
            "contentType": "application/json",
            "properties": ["id", "name"],
            "example": { "id": "550e8400-...", "name": "string" }
          }
        }
      }
    }
  },
  "spec": { ... }
}

list_contracts

List all registered services and their available versions.

1
2
3
4
5
curl -s http://contract-mcp-server.idp.local/mcp \
  -H "Content-Type: application/json" \
  -H "Accept: application/json, text/event-stream" \
  -d '{"jsonrpc":"2.0","id":1,"method":"tools/call","params":{"name":"list_contracts","arguments":{}}}' \
  | grep '^data:' | sed 's/^data: //'

generate_contract_tests

Generate Pact consumer tests from a registered provider spec.

1
2
3
4
5
6
7
curl -s http://contract-mcp-server.idp.local/mcp \
  -H "Content-Type: application/json" \
  -H "Accept: application/json, text/event-stream" \
  -d '{"jsonrpc":"2.0","id":1,"method":"tools/call","params":{
    "name":"generate_contract_tests",
    "arguments":{"service_name":"hello-service","consumer_name":"frontend-app"}
  }}' | grep '^data:' | sed 's/^data: //'

Returns: - pactJson — Pact v3 interaction JSON with real request/response bodies (drop into ./pacts/) - testCode — TypeScript using MatchersV3: like(), integer(), decimal(), regex(), eachLike() - instructions — where to save the files and how to run them

validate_compatibility

Check if a provider's current spec satisfies all paths expected by a consumer (both must be registered).

1
2
3
4
5
6
7
curl -s http://contract-mcp-server.idp.local/mcp \
  -H "Content-Type: application/json" \
  -H "Accept: application/json, text/event-stream" \
  -d '{"jsonrpc":"2.0","id":1,"method":"tools/call","params":{
    "name":"validate_compatibility",
    "arguments":{"provider_name":"hello-service","consumer_name":"frontend-app"}
  }}' | grep '^data:' | sed 's/^data: //'

Returns: compatible: true/false, missingPaths, and a human-readable verdict.

detect_breaking_changes

Compare two versions of a service spec. Detects: path_removed, method_removed, required_param_added.

1
2
3
4
5
6
7
curl -s http://contract-mcp-server.idp.local/mcp \
  -H "Content-Type: application/json" \
  -H "Accept: application/json, text/event-stream" \
  -d '{"jsonrpc":"2.0","id":1,"method":"tools/call","params":{
    "name":"detect_breaking_changes",
    "arguments":{"service_name":"my-service","from_version":"1.0.0","to_version":"2.0.0"}
  }}' | grep '^data:' | sed 's/^data: //'

Returns: { breaking: [{type, path, method, detail}], nonBreaking: [...], summary }.

get_compatibility_report

Full consumer/provider compatibility matrix: every registered service checked as a potential consumer.

1
2
3
4
5
6
7
curl -s http://contract-mcp-server.idp.local/mcp \
  -H "Content-Type: application/json" \
  -H "Accept: application/json, text/event-stream" \
  -d '{"jsonrpc":"2.0","id":1,"method":"tools/call","params":{
    "name":"get_compatibility_report",
    "arguments":{"service_name":"hello-service"}
  }}' | grep '^data:' | sed 's/^data: //'

Returns: { totalConsumers, compatible: N, incompatible: N, consumers: [{consumer, compatible, missingPaths}] }.

REST API Reference

Useful for CI pipelines that don't need the full MCP protocol.

Method Path Auth Description
POST /api/contracts/:service/:version X-Api-Key Register contract (body: raw OpenAPI JSON/YAML)
GET /api/contracts/:service none Get latest contract (?version= for specific)
GET /api/contracts none List all registered services
GET /api/compatibility/:provider/:consumer none 200 = compatible, 409 = broken
POST /api/breaking-changes none Body: {service_name, from_version, to_version}

CI example using the REST API:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
# Register the PR spec
curl -sf $CONTRACT_SERVER/api/contracts/$SERVICE_NAME/$NEW_VERSION \
  -H "X-Api-Key: $CONTRACT_TOKEN" \
  -H "Content-Type: application/json" \
  --data-binary @openapi.json

# Check for breaking changes vs the previous version
RESULT=$(curl -sf $CONTRACT_SERVER/api/breaking-changes \
  -H "Content-Type: application/json" \
  -d "{\"service_name\":\"$SERVICE_NAME\",\"from_version\":\"$PREV_VERSION\",\"to_version\":\"$NEW_VERSION\"}")

echo "$RESULT" | jq -e '.breaking | length == 0' \
  || (echo "Breaking changes detected:" && echo "$RESULT" | jq '.breaking' && exit 1)

Claude Desktop / Custom MCP Client Setup

To use the contract testing tools directly from Claude Desktop or any MCP-compatible client:

1
2
3
4
5
6
7
8
{
  "mcpServers": {
    "contract-testing": {
      "url": "http://contract-mcp-server.idp.local/mcp",
      "transport": "streamable-http"
    }
  }
}

Add this to ~/Library/Application Support/Claude/claude_desktop_config.json (macOS). After restarting Claude Desktop, the 9 tools appear automatically and you can use them in any conversation: "use register_contract to register this OpenAPI spec for payments-api v2.0.0: ..."

Note: Always set Accept: application/json, text/event-stream for raw MCP calls. Without it the StreamableHTTP transport returns 406.

Backstage Templates

contract-testing-suite

Generates a full Pact test project for a consumer/provider pair.

  1. Open Backstage → Create → search "Contract Testing Suite"
  2. Fill in: Consumer name, Provider name, Provider base URL
  3. Choose new-repository or add-to-existing
  4. Click Create

Generated files: - contract/openapi.yaml — consumer's expected contract (edit to match your actual API calls) - tests/<name>.pact.spec.ts — Pact V3 consumer tests with MatchersV3 - .github/workflows/contract.yml — CI: run tests → publish to Pact broker → provider verify - catalog-info.yaml — registers in Backstage catalog

enable-contract-testing

One-click setup for an existing service: 1. Deploys/wires contract-mcp-server if not already running 2. Registers contract-assistant KAgent 3. Auto-discovers the service's OpenAPI contract via fetch_service_contract 4. Scaffolds a consumer test skeleton 5. Applies ArgoCD Helm hook for automatic re-registration on every sync

ArgoCD Self-Testing Hooks

Any service using helm/service-template can opt into automatic contract checking on every ArgoCD sync.

1
2
3
4
# helm-values-local.yaml
contractCheck:
  enabled: true
  mcpServerUrl: "http://contract-mcp-server.services-dev.svc.cluster.local:3003"

PostSync (after every deploy): calls fetch_service_contract + get_compatibility_report — registers the running spec and logs consumer compatibility status.

PreSync (block breaking deploys):

1
2
3
4
5
contractCheck:
  enabled: true
  checkBreaking: true
  fromVersion: "1.2.0"   # currently deployed version (set by CI)
  toVersion: "2.0.0"     # version being deployed    (set by CI)

Before syncing, a Job calls detect_breaking_changes. If any breaking changes are found, the Job exits 1 and ArgoCD blocks the sync.

CI pattern to wire versions into Helm:

1
2
3
4
5
6
7
- name: Pass versions to Helm for PreSync gate
  run: |
    CURRENT=$(kubectl get deploy/$SERVICE -n services -o jsonpath='{.spec.template.spec.containers[0].image}' | cut -d: -f2)
    helm upgrade $SERVICE helm/service-template \
      --set contractCheck.fromVersion=$CURRENT \
      --set contractCheck.toVersion=$NEW_TAG \
      --set contractCheck.checkBreaking=true

contract-assistant — Quick Reference

Open http://kagent.idp.local → select contract-assistant, or use Backstage AI Assistant.

Goal Prompt
Make all services self-describing "Discover contracts for all services in services-dev"
Pull one service's spec "Fetch the contract for hello-service"
See schemas and examples "Get the contract for payments-api"
Generate Pact tests "Generate contract tests for hello-service consumer frontend-app"
Check compatibility "Is frontend-app compatible with hello-service?"
Detect breaking changes "Breaking changes between my-service v1.0.0 and v2.0.0?"
Full compatibility audit "Show the compatibility report for hello-service"
List registered services "List all registered contracts"

Environment Variables

Variable Default Description
PORT 3003 HTTP listen port
STORAGE_TYPE memory memory / postgres / dynamodb
DATABASE_URL — PostgreSQL connection string (required if STORAGE_TYPE=postgres)
AWS_REGION us-east-1 AWS region (required if STORAGE_TYPE=dynamodb)
DYNAMO_TABLE contract-registry DynamoDB table name
DISCOVERY_MODE kubernetes kubernetes / http / docker
K8S_API https://kubernetes.default.svc Kubernetes API server URL
K8S_TOKEN — Service account bearer token (for out-of-cluster use)
SERVICES_REGISTRY — name1=http://url1,name2=http://url2 (http discovery mode)
DOCKER_HOST /var/run/docker.sock Docker socket path (docker discovery mode)
DISCOVER_PROBE_TIMEOUT_MS 2500 Timeout per service when probing for /openapi.json
DISCOVER_CONCURRENCY 10 Max concurrent probes during auto_discover_contracts
HTTP_TIMEOUT_MS 8000 General HTTP call timeout
BREAKING_CHANGE_WEBHOOK_URL — URL to POST breaking-change events (Slack, PD, etc.)
API_KEY — If set, write operations require X-Api-Key header

Storage Backends

STORAGE_TYPE Persistence When to use
memory Lost on restart Local dev, ephemeral CI
postgres Persistent Self-hosted, local Docker Compose
dynamodb Persistent, managed AWS-native deployments

DynamoDB table setup:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
aws dynamodb create-table \
  --table-name contract-registry \
  --attribute-definitions \
    AttributeName=service_name,AttributeType=S \
    AttributeName=version,AttributeType=S \
  --key-schema \
    AttributeName=service_name,KeyType=HASH \
    AttributeName=version,KeyType=RANGE \
  --billing-mode PAY_PER_REQUEST \
  --region us-east-1

Breaking Change Webhook Payload

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
{
  "provider": "payments-api",
  "from_version": "1.0.0",
  "to_version": "2.0.0",
  "breaking_changes": [
    { "type": "path_removed",      "path": "/v1/payments/bulk", "detail": "Path /v1/payments/bulk was removed" },
    { "type": "method_removed",    "path": "/v1/payments",      "method": "DELETE", "detail": "DELETE /v1/payments was removed" },
    { "type": "required_param_added", "path": "/v1/pay",       "method": "POST",   "detail": "Required parameter 'currency' added" }
  ],
  "affected_consumers": [
    { "service": "checkout-service", "missingPaths": ["/v1/payments/bulk"] }
  ],
  "timestamp": "2026-06-16T10:30:00Z"
}

Wire to Slack: set BREAKING_CHANGE_WEBHOOK_URL=https://hooks.slack.com/services/YOUR/WEBHOOK.

Redeploy After a Code Change

1
2
3
4
cd services/contract-mcp-server
docker build -t localhost:5003/contract-mcp-server:0.1.0 .
docker push localhost:5003/contract-mcp-server:0.1.0
kubectl rollout restart deployment/contract-mcp-server -n services-dev

Trade-offs, Risks & Governance

"AI-driven testing" covers two genuinely different code paths here, and the risk profile of each is different. Knowing which one you're relying on for a given decision matters.

Deterministic path (no LLM in the loop). generate_contract_tests, detect_breaking_changes, and validate_compatibility are plain schema diffing over the registered OpenAPI documents (see generator.ts / store.ts) — same input, same output, every time. This is the part that's safe to gate CI on: contract-check.yml and the ArgoCD PreSync hook call these tools directly over HTTP, never through a model. There's no hallucination risk here because there's no model in this path.

Conversational path (LLM in the loop). Asking contract-assistant "Can I deploy payments-api 2.0.0-pr-4?" goes through an LLM that calls can_i_deploy and then paraphrases the result. The tool call and its JSON result are deterministic; the sentence wrapped around it is not. Don't treat the chat answer as the source of truth — treat the underlying tool result (visible in the audit log, and in the raw CI check output) as the source of truth, and the chat answer as a convenience layer on top of it.

Failure modes to plan for: - Misreading a "safe" answer. If a consumer's contract is stale or was never registered, can_i_deploy has nothing to check against and returns safe-by-omission, not safe-by-verification. Treat "no registered consumers" as "unknown," not "clear." (get_stale_contracts exists precisely to surface this before it bites you.) - Non-determinism at the chat layer. Two people asking the same question in different phrasing can get answers with different emphasis or wording, even though the underlying tool call is identical. For anything gating a merge or a deploy, the CI check / can_i_deploy tool result is authoritative — the chat transcript is not audit evidence. - Incomplete or malformed specs. generate_contract_tests degrades gracefully on missing schema fields (falls back to like(null) matchers), which means a sparse OpenAPI doc silently produces a weak test rather than an error. Weak tests pass more often than they should.

Governance today: - Audit trail. Every register / breaking-change-detected / compatibility-check event is logged and queryable via get_audit_log — this is the mechanism for "who registered what, when," and it's what you'd pull for a post-incident review. - Write authorization. Setting API_KEY requires X-Api-Key on all write operations (register_contract, etc.), so anyone can read contracts but only holders of the key can register or overwrite one. In the current demo/POC deployment this is unset — fine for a conference cluster, not fine for production, where it should be scoped per-CI-pipeline via distinct keys or replaced with the AWS_ROLE_ARN OIDC path already wired into contract-check.yml. - What's not governed yet. There's no approval workflow for overwriting an existing registered version (last write wins), and no role distinction between "can register a contract" and "can override a breaking-change block." For a platform beyond POC scope, both would need to move from "technically possible" to "explicitly designed."

Troubleshooting

fetch_service_contract returns "No OpenAPI spec found"
The service does not expose /openapi.json. Add the endpoint and redeploy. The probe checks: /openapi.json, /openapi.yaml, /api-docs, /swagger.json.

auto_discover_contracts shows all services as no_spec
Services do not expose /openapi.json, or the port is wrong. Most K8s Services listen on port 80. Try "port": 80. Check with: curl http://<service>.<namespace>.svc.cluster.local/openapi.json.

detect_breaking_changes says "version not found"
The version must be registered with register_contract before you can diff it. Register the new version in CI before deploying.

Generated tests compile but all assertions are trivial
Your OpenAPI spec has no requestBody or response schema fields — only path/method definitions. Enrich your spec with schemas, required fields, and format hints (see "Making a Service Self-Describing" above). The generator extracts these to build matchers.

KAgent contract-assistant shows READY=False

1
2
kubectl rollout restart deployment/kagent-controller -n kagent
kubectl get agents -n kagent contract-assistant

MCP call returns empty or no data: lines
Ensure Accept: application/json, text/event-stream is set. Without it, the StreamableHTTP transport may return 406.

generate_contract_tests returns "provider not found"
The provider must be registered before generating tests. Call fetch_service_contract or register_contract for the provider first, then generate.

can-i-deploy returns 404
The service is not registered in the contract registry. Register it first: run fetch_service_contract (AI Assistant: "Register the contract for <service>") or POST directly to /api/contracts/<service>/<version>.

Breaking changes not detected between versions
Both registered versions must have different content. If you registered the same spec twice under different version strings, the diff will be empty. Always register the new (changed) spec before calling detect_breaking_changes.

ArgoCD PreSync hook fails immediately with "fromVersion not set"
The PreSync hook requires contractCheck.fromVersion and contractCheck.toVersion to be passed via Helm values in your CI pipeline. Add --set contractCheck.fromVersion=<old-version> --set contractCheck.toVersion=<new-version> to your helm upgrade command.

Audit log is empty after a pod restart
The audit log is stored in-memory (circular buffer, 500 events). It is lost when the pod restarts. For a persistent audit trail, switch to STORAGE_TYPE=postgres — the audit events will then survive restarts.

Template not visible in Backstage Create page
The contract templates may be commented out in backstage/catalog/all-templates.yaml. Uncomment the contract-testing-suite and enable-contract-testing entries, then restart Backstage (docker compose restart backstage for local, or sync the ArgoCD app in-cluster).

contract-assistant not responding in AI Assistant
The KAgent agent may not be deployed. Check: kubectl get agents -n kagent contract-assistant. If it's missing, run scripts/bootstrap-ai.sh. If it exists but shows READY=False, restart the controller: kubectl rollout restart deployment/kagent-controller -n kagent.

auto_discover_contracts returns 0 services
In local/Docker mode, set DISCOVERY_MODE=http and SERVICES_REGISTRY=payments-api=http://payments-api:8000,hello-service=http://hello-service:8080. The default kubernetes mode requires in-cluster API access. In standalone Docker Compose, use the http mode.

Common Pitfalls

  • Don't call /mcp directly for scripts — the REST API at /api is easier to use from curl / CI pipelines. /mcp is for MCP-native clients (Claude Desktop, KAgent).
  • Don't use STORAGE_TYPE=memory in production — contracts are lost on every restart. Use postgres or dynamodb.
  • Don't skip fetch_service_contract before generate_contract_tests — the provider must be registered first.
  • Don't omit required fields and response schemas from your OpenAPI spec — the test generator uses these to build meaningful matchers. Without them, generated tests only check HTTP status codes.
