Agentic Development Platform (ADP)¶

Available on main — opt-in.

ADP extends the existing AI/ML platform (KAgent + MCP servers, see ai-assistant.md) from a chat assistant into a first-class, agent-driven layer for both the developer workflow (scaffold/code/test/review) and platform operations (cost/incidents/scaling/security). Teams that don't opt in see no behavior change — every phase below is additive to the platform already deployed by bootstrap-ai.sh. To pull in ADP components, run ./scripts/bootstrap-ai.sh --adp instead of the bare invocation.

Why¶

The platform already has substantial agent infrastructure — six KAgent agents and MCP servers, an event bus reacting to GitHub/AlertManager/ArgoCD webhooks, RAG search, and an AI/ML scaffolder category — but it wasn't documented, branded, or architected as a coherent whole, and agents had no safe way to take real mutating action autonomously (no approval gate existed anywhere). ADP closes both gaps: it gives the existing capability a clear identity, and it adds the missing pieces — ops coverage for incidents/security, and a human-in-the-loop approval layer — needed to trust agents with real actions.

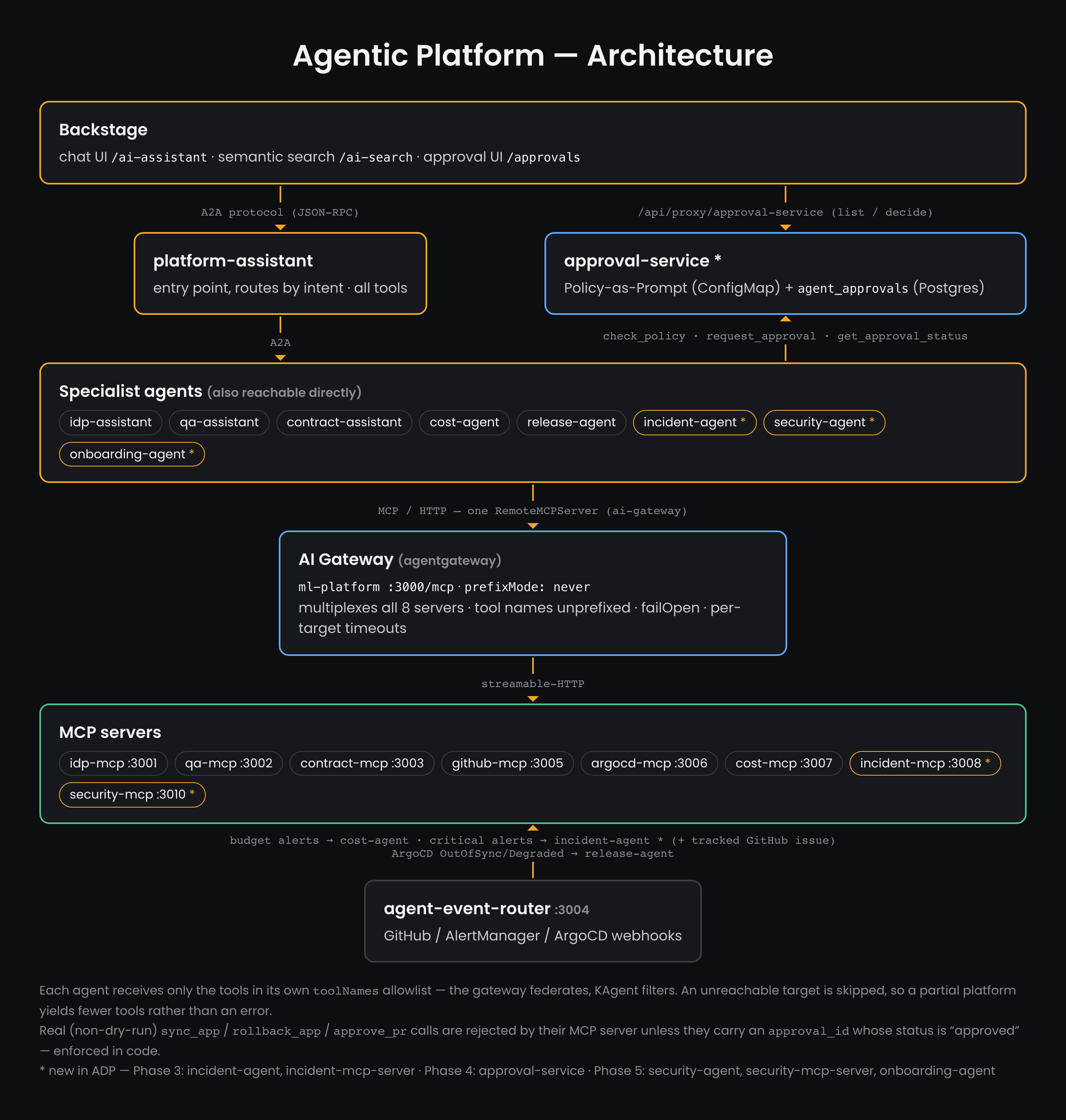

Architecture¶

Backstage — chat UI (/ai-assistant), semantic search (/ai-search), approval UI (/approvals)
        │  A2A protocol (JSON-RPC)                 │  /api/proxy/approval-service (list/decide)
        ▼                                          ▼
┌──────────────────┐                    ┌────────────────────────────┐
│ platform-assistant│ ← entry point,    │       approval-service*      │
│ (all tools)        │   routes by intent│  Policy-as-Prompt (ConfigMap) │
└────────┬───────────┘                   │  + agent_approvals (Postgres) │
         │                               └───────────────┬────────────┘
         │  A2A                                           ▲
         ▼                                                 │ check_policy / request_approval /
┌────────────────────────────────────────────────────┐    │ get_approval_status
│ Specialist agents (also reachable directly)          │────┘
│  idp-assistant · qa-assistant · contract-assistant   │
│  cost-agent · release-agent · incident-agent*        │
│  security-agent* · onboarding-agent*                 │
└───────────────────────┬──────────────────────────────┘
                         │ MCP/HTTP — one RemoteMCPServer ("ai-gateway")
                         ▼
              ┌──────────────────────────────┐
              │  AI Gateway (agentgateway)   │  ml-platform :3000/mcp
              │  multiplexes all 8, tool     │  prefixMode: never
              │  names unprefixed, failOpen  │  per-target timeouts
              └──────────────┬───────────────┘
                             │ streamable-HTTP
                             ▼
  idp-mcp :3001   qa-mcp :3002   contract-mcp :3003   github-mcp :3005
  cost-mcp :3007  argocd-mcp :3006   incident-mcp :3008*   security-mcp :3010*

  Each agent still receives only the tools in its own `toolNames` allowlist —
  the gateway federates, KAgent filters. A target the gateway cannot reach is
  skipped, so a partial platform yields fewer tools rather than an error.

  Real (non-dry-run) sync_app / rollback_app / approve_pr calls are rejected by their MCP
  server unless they carry an approval_id whose status is "approved" — enforced in code, not
  just a system-prompt convention. On by default: APPROVAL_SERVICE_URL is declared in each
  server's helm values. Unset it and the tools run ungated, with a warning per call.

                              ▲
                              │  budget alerts → cost-agent
                              │  critical alerts → incident-agent* (+ tracked GitHub issue)
                              │  ArgoCD OutOfSync/Degraded → release-agent
                    agent-event-router :3004
              (GitHub / AlertManager / ArgoCD webhooks)

  * new in ADP — Phase 3: incident-agent, incident-mcp-server · Phase 4: approval-service ·
    Phase 5: security-agent, security-mcp-server, onboarding-agent

What's in the Branch¶

Phase 0 — Branding & Epic Scaffolding¶

Component	Path
This doc	`docs/agentic-platform.md`
`--adp` bootstrap flag	`scripts/bootstrap-ai.sh`
README / docs index callouts	`README.md`, `docs/index.md`

Phase 1 — Documentation Consolidation¶

Component	Path
Corrected architecture doc (adds cost-agent, release-agent, cost-mcp-server, argocd-mcp-server)	`docs/ai-assistant.md`
Event-bus routing documentation (budget alert → cost-agent, ArgoCD degraded → release-agent)	`docs/ai-assistant.md` § Event Bus
Restored missing deployable scaffolding for `github-mcp-server`, `cost-mcp-server`, `argocd-mcp-server` (Dockerfile, package.json, index.ts, tsconfig.json, helm-values) — deleted by a prior cleanup commit (`5230b9c`), leaving the tool logic in `server.ts` orphaned with no way to build/deploy it. Also fixed a pre-existing bug in their restored `helm-values-aws.yaml` (hardcoded `ACCOUNT_ID.dkr.ecr.AWS_REGION.amazonaws.com` instead of the `ECR_REGISTRY_PLACEHOLDER` token `bootstrap-ai.sh` substitutes)	`services/{github,cost,argocd}-mcp-server/`

Phase 2 — Dev Workflow Agents Hardening¶

Component	Path
`approve_pr` / `request_changes` tools	`services/github-mcp-server/src/index.ts`
Code-review rule set (shift-left + contract-testing checklists)	`kubernetes/kagent/qa-agent.yaml`

Note: approve_pr/request_changes are dry-run/stubbed until Phase 4's approval gate lands — no auto-merge before then.

Phase 3 — Ops Agents Wave 1 + RAG Fix¶

Component	Path
`incident-mcp-server` (get_open_incidents, get_alert_history, get_runbook, post_incident_update, send_notification)	`services/incident-mcp-server/`
`incident-agent`	`kubernetes/kagent/incident-agent.yaml` (its MCP server is a target of the AI Gateway, `kubernetes/ml-platform/ai-gateway.yaml`)
AlertManager routing: critical non-budget alerts → incident-agent	`services/agent-event-router/src/router.ts`
RAG fix: index rendered TechDocs pages via the techdocs-backend's per-entity `search_index.json` (portable across local filesystem and S3 publishers), replacing a dead-end raw filesystem walk of `/catalog` (the Backstage catalog-definitions mount, not the docs mount)	`backstage/app/packages/backend/src/modules/idpRagSearch.ts`

Phase 4 — HiTL Approval Layer & Policy-as-Prompt¶

Operator/user guide: Agent Approvals — policy rules, approval API, the Backstage UI, how to test the gate, and troubleshooting.

Component	Path
`approval-service` — REST API, `agent_approvals` table on the existing Backstage Postgres (Aurora/RDS in AWS, docker-compose pgvector image locally, reached via `host.docker.internal` from Kind pods)	`services/approval-service/`
Policy-as-Prompt rules (e.g. "sync_app on `prod-*` requires approval; rollback_app always does")	`kubernetes/kagent/policies/configmap.yaml`, evaluated by `services/approval-service/src/policy.ts`
`check_policy`/`request_approval`/`get_approval_status` tools (proxy to approval-service)	`services/idp-mcp-server/src/server.ts`
Tool-server-level enforcement — `sync_app`/`rollback_app`/`approve_pr` reject a real call without an `approval_id` whose recorded status is `approved`, unless `APPROVAL_SERVICE_URL` is unset (on by default — declared in each server's helm values)	`services/argocd-mcp-server/src/server.ts`, `services/github-mcp-server/src/server.ts`
System-prompt updates (request approval before a real mutating call, wait for the human decision)	`kubernetes/kagent/release-agent.yaml`, `kubernetes/kagent/qa-agent.yaml`
Approval UI (list pending/all, approve/deny) at `/approvals`, proxied via `/api/proxy/approval-service`	`backstage/app/packages/app/src/extensions.tsx` (`ApprovalsPage`)
Audit log: approval-service emits its own `[AUDIT]` lines (`approval_requested`/`approval_auto_approved`/`approval_decided`) with `approval_id`, `decision`, `decided_by`; gated tools' own `[AUDIT]` entries now carry `approval_id` too	`docs/ai-assistant.md` § Structured audit log

This formalizes the dry-run-then-confirm convention already used by release-agent.yaml into a real, auditable gate enforced at the tool-server layer (not just a system-prompt convention) — this phase ships before Phase 5 so every new agent that follows is safe-by-construction. Note request_changes is policy-exempt (it blocks merge rather than enabling it) and sync_app only requires approval for prod-*-named apps by default — both configurable in the policy ConfigMap.

Phase 5 — Security & Onboarding Agents¶

Component	Path
`security-mcp-server` — `list_vulnerable_deps` (GitHub Dependabot alerts, not a live Snyk API query — Dependabot is what this repo's own security remediation actually uses), `get_secret_rotation_status` (reads the GitHub issues the `secret-rotation` scaffolder template's reminder workflow opens), `list_policy_violations` (Kyverno PolicyReport/ClusterPolicyReport via the K8s API)	`services/security-mcp-server/`
RBAC for reading cluster-wide PolicyReports	`kubernetes/kagent/security-mcp-server-rbac.yaml`
`security-agent` — read-only, no remediation tools	`kubernetes/kagent/security-agent.yaml`
`onboarding-agent` — reuses `idp-mcp-server`'s existing catalog/RAG tools, no new MCP server	`kubernetes/kagent/onboarding-agent.yaml`

security-agent has no mutating tools, so it isn't gated by Phase 4 — it's read-only by design.

Phase 6 — Golden Path Promotion & Tech Radar Cleanup¶

Component	Path
AI/ML top billing in README/docs (doc-level only — no retagging in `all-templates.yaml`)	`README.md`, `docs/index.md`
`langgraph` promoted from under evaluation to built — see below	`backstage/catalog/templates/langgraph-agent/`

KAgent or LangGraph¶

Both are now available, and they are not competing:

	KAgent	LangGraph
Defined as	Kubernetes resources (`kind: Agent`)	Application code you own
Owned by	The platform team	The service team
Control flow	Declarative	Imperative — branching and state in code
Reach for it when	A prompt plus tools is enough	The agent must loop, branch, or hold state

Both consume the same eight MCP servers, and both trace to the same Langfuse. The langgraph-agent template propagates the W3C traceparent on every MCP call, so a run appears as one nested trace spanning the agent and the servers it called rather than several unrelated ones.

Opting In¶

Pull main — ADP scripts and templates are included; nothing runs until you opt in.
Run ./scripts/bootstrap-ai.sh --adp (in addition to the base local/AWS bootstrap) to deploy the ADP-phase agents/toolservers on top of the existing AI/ML stack.
Existing AI/ML deployments without --adp are fully unaffected — cost-agent/release-agent and the original four assistants keep working exactly as before.
